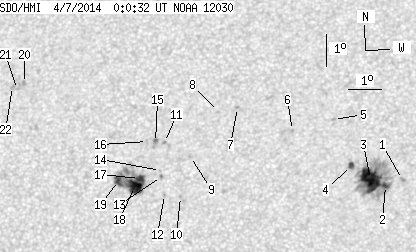

SDO HMI 2014-04-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.99 | 189.41 | 31.61 | 98.28 | 10.24 | 0.97 | -3.80 | 12.25 | 0.2975 | -189.8 | -171.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.11 | 0.00 | 1.09 | 10.05 | 4.87 | 0.10 | 359.66 | 0.2813 | -664.0 | -591.0 | |
| 2.46 | 109.58 | 1.27 | 56.56 | 9.86 | 4.35 | -0.42 | 1.49 | 0.2782 | -893.1 | -395.8 | |
| 30.01 | -2.00 | 15.49 | -2.00 | 10.05 | 3.89 | -0.88 | 3.08 | 0.2817 | -1173.1 | 999999 | |
| 2.29 | -2.00 | 1.18 | -2.00 | 10.49 | 3.31 | -1.46 | 4.97 | 0.2898 | -909.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 11.94 | 2.76 | -2.02 | 6.30 | 0.3148 | -808.0 | -640.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.60 | 1.50 | -3.27 | 10.36 | 0.3122 | -839.0 | -710.2 | |
| 0.00 | 1.67 | 0.00 | 0.88 | 12.35 | 359.80 | -4.97 | 14.91 | 0.3304 | -646.0 | -496.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.23 | 359.22 | -5.56 | 16.68 | 0.3311 | -718.0 | -531.3 | |
| 0.00 | 2.20 | 0.00 | 1.15 | 10.82 | 358.38 | -6.39 | 20.51 | 0.3134 | 773.0 | 594.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 9.57 | 358.10 | -6.67 | 22.89 | 0.2958 | 761.0 | 668.3 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 11.27 | 357.57 | -7.20 | 22.30 | 0.3252 | 872.0 | 670.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 9.64 | 357.61 | -7.16 | 24.29 | 0.3001 | 744.0 | 579.8 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 10.20 | 357.50 | -7.27 | 23.84 | 0.3094 | 961.0 | 839.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.39 | 357.47 | -7.30 | 23.69 | 0.3125 | 653.0 | 515.3 | |
| 0.00 | 4.14 | 0.00 | 2.17 | 11.27 | 357.29 | -7.48 | 23.07 | 0.3271 | 853.0 | 723.1 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 11.31 | 357.05 | -7.72 | 23.71 | 0.3292 | 643.0 | 533.4 | |
| 4.58 | 52.72 | 2.39 | 27.50 | 10.15 | 356.83 | -7.94 | 25.85 | 0.3133 | 946.6 | -55.7 | |
| 16.46 | -17.00 | 8.57 | -17.00 | 9.91 | 356.68 | -8.09 | 26.62 | 0.3107 | 821.4 | 999999 | |
| 5.19 | -17.00 | 2.71 | -17.00 | 10.10 | 356.18 | -8.59 | 27.72 | 0.3174 | -1067.3 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.13 | 13.22 | 353.14 | -11.63 | 30.68 | 0.3861 | 843.0 | 726.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 13.04 | 352.93 | -11.84 | 31.39 | 0.3853 | 715.0 | 519.8 | |
| 0.00 | 2.20 | 0.00 | 1.18 | 13.14 | 352.77 | -12.00 | 31.60 | 0.3880 | 792.0 | 633.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
