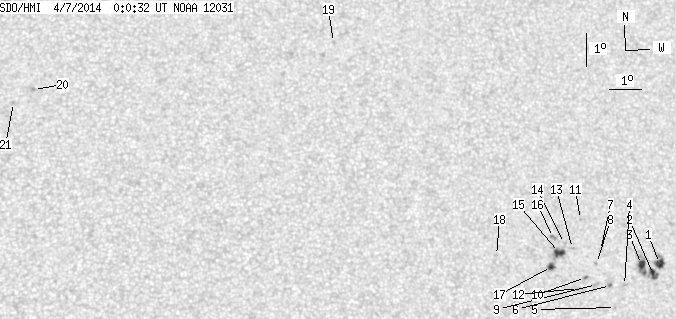

SDO HMI 2014-04-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.88 | 76.12 | 12.72 | 42.05 | 2.81 | 29.15 | 24.38 | 290.58 | 0.4423 | -74.5 | -119.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.28 | 10.21 | 2.97 | 5.75 | 2.62 | 31.73 | 26.96 | 287.39 | 0.4766 | -809.2 | -534.2 | |
| 4.66 | 23.06 | 2.62 | 12.92 | 2.28 | 31.52 | 26.75 | 286.84 | 0.4719 | -813.7 | -730.9 | |
| 4.49 | -2.00 | 2.51 | -2.00 | 2.56 | 31.13 | 26.36 | 287.68 | 0.4674 | -996.1 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.17 | 1.90 | 30.54 | 25.77 | 286.70 | 0.4556 | -795.0 | -630.3 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 1.22 | 30.23 | 25.46 | 285.45 | 0.4478 | -705.0 | -570.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 1.88 | 30.08 | 25.31 | 286.97 | 0.4485 | -807.0 | -669.4 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 2.93 | 29.77 | 25.00 | 289.41 | 0.4493 | 433.0 | 212.2 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 2.52 | 29.62 | 24.85 | 288.67 | 0.4451 | 646.0 | 448.5 | |
| 0.00 | 2.64 | 0.00 | 1.46 | 1.89 | 29.61 | 24.84 | 287.31 | 0.4417 | -831.0 | -647.3 | |
| 0.00 | 1.58 | 0.00 | 0.87 | 2.08 | 29.25 | 24.48 | 288.00 | 0.4373 | 498.0 | 388.3 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 3.84 | 29.13 | 24.36 | 291.84 | 0.4452 | 468.0 | 409.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 1.74 | 29.02 | 24.25 | 287.42 | 0.4320 | -671.0 | -574.9 | |
| 0.00 | 2.11 | 0.00 | 1.16 | 2.95 | 28.84 | 24.07 | 290.19 | 0.4358 | 190.0 | 185.1 | |
| 0.00 | 1.58 | 0.00 | 0.87 | 3.09 | 28.58 | 23.81 | 290.71 | 0.4328 | 484.0 | 403.1 | |
| 5.46 | 17.69 | 2.99 | 9.68 | 2.81 | 28.41 | 23.64 | 290.24 | 0.4287 | 916.6 | 581.4 | |
| 0.00 | 2.73 | 0.00 | 1.49 | 3.25 | 28.23 | 23.46 | 291.37 | 0.4285 | 805.0 | 654.9 | |
| 2.99 | -15.00 | 1.63 | -15.00 | 2.37 | 28.14 | 23.37 | 289.50 | 0.4222 | 608.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 2.63 | 26.36 | 21.59 | 291.68 | 0.3972 | -805.0 | -539.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 8.99 | 21.38 | 16.61 | 312.40 | 0.3839 | 618.0 | 502.6 | |
| 0.00 | 1.76 | 0.00 | 0.90 | 7.33 | 12.02 | 7.25 | 331.79 | 0.2659 | 809.0 | 667.0 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 6.92 | 11.40 | 6.63 | 333.15 | 0.2550 | 826.0 | 575.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
