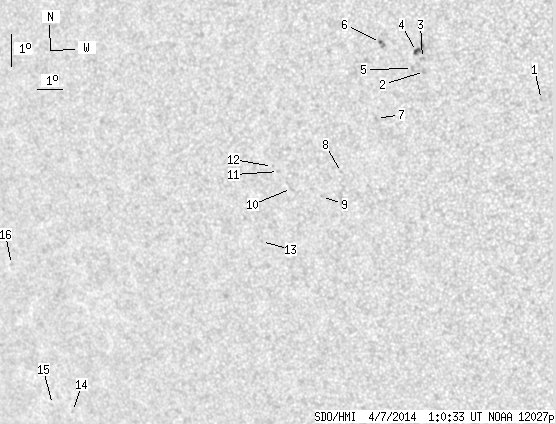

SDO HMI 2014-04-07 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.56 | 29.13 | 1.48 | 17.53 | -15.71 | 330.67 | -33.55 | 108.78 | 0.5615 | 328.1 | 321.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.64 | -15.44 | 337.94 | -26.28 | 111.86 | 0.4617 | 741.0 | 653.8 | |
| 0.00 | 2.29 | 0.00 | 1.32 | -14.39 | 333.96 | -30.26 | 107.78 | 0.5146 | 664.0 | 593.0 | |
| 0.00 | 2.11 | 0.00 | 1.22 | -13.99 | 333.95 | -30.27 | 107.02 | 0.5136 | 859.0 | 612.3 | |
| 1.94 | 7.66 | 1.12 | 4.41 | -13.77 | 333.77 | -30.45 | 106.52 | 0.5155 | 705.5 | 641.1 | |
| 0.00 | 2.29 | 0.00 | 1.33 | -14.27 | 333.55 | -30.67 | 107.40 | 0.5202 | 549.0 | 440.5 | |
| 0.62 | 3.61 | 0.36 | 2.11 | -13.42 | 332.52 | -31.70 | 105.45 | 0.5324 | -798.4 | -696.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -15.71 | 332.00 | -32.22 | 109.43 | 0.5465 | 713.0 | 627.9 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -17.27 | 330.38 | -33.84 | 111.49 | 0.5737 | 513.0 | 393.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -17.96 | 329.47 | -34.75 | 112.26 | 0.5881 | 696.0 | 602.7 | |
| 0.00 | 2.55 | 0.00 | 1.58 | -17.64 | 328.38 | -35.84 | 111.32 | 0.6012 | 575.0 | 505.2 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -17.10 | 328.00 | -36.22 | 110.29 | 0.6044 | 585.0 | 522.1 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -16.93 | 327.80 | -36.42 | 109.96 | 0.6065 | 532.0 | 429.2 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -19.18 | 326.81 | -37.41 | 113.17 | 0.6264 | 564.0 | 487.8 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -23.83 | 316.82 | -47.40 | 116.43 | 0.7542 | -425.0 | -322.3 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -23.54 | 315.98 | -48.24 | 115.83 | 0.7620 | -288.0 | -289.0 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -19.12 | 315.94 | -48.28 | 110.06 | 0.7531 | -576.0 | -486.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
