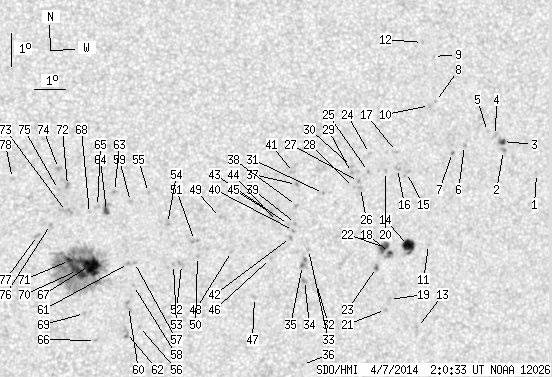

SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.15 | 353.02 | 33.70 | 182.26 | -11.43 | 18.71 | 15.04 | 248.05 | 0.2746 | -104.5 | -234.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.73 | -8.80 | 30.32 | 26.66 | 262.73 | 0.4488 | 622.0 | 419.0 | |
| 0.00 | 2.29 | 0.00 | 1.25 | -8.16 | 29.16 | 25.49 | 264.04 | 0.4302 | 704.0 | 595.5 | |
| 1.94 | 4.05 | 1.06 | 2.22 | -7.89 | 29.11 | 25.44 | 264.66 | 0.4292 | 832.0 | 684.1 | |
| 0.00 | 2.73 | 0.00 | 1.49 | -7.72 | 28.87 | 25.20 | 265.04 | 0.4253 | 742.0 | 558.7 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -7.61 | 28.59 | 24.92 | 265.27 | 0.4209 | 555.0 | 442.5 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -8.06 | 27.85 | 24.18 | 264.11 | 0.4095 | 829.0 | 643.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -8.29 | 27.47 | 23.80 | 263.50 | 0.4036 | 622.0 | 552.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -6.79 | 26.82 | 23.15 | 267.24 | 0.3926 | 661.0 | 545.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -5.44 | 26.70 | 23.03 | 270.70 | 0.3911 | 384.0 | 378.7 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -6.91 | 26.63 | 22.96 | 266.91 | 0.3895 | 666.0 | 603.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -11.09 | 26.88 | 23.21 | 256.38 | 0.3996 | 691.0 | 582.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -5.03 | 26.32 | 22.65 | 271.81 | 0.3855 | 643.0 | 520.0 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -13.60 | 26.74 | 23.07 | 250.20 | 0.4066 | 768.0 | 632.5 | |
| 9.33 | 14.53 | 5.02 | 7.81 | -11.14 | 26.22 | 22.55 | 255.94 | 0.3895 | 949.6 | 704.5 | |
| 0.00 | 3.61 | 0.00 | 1.93 | -8.95 | 25.99 | 22.32 | 261.52 | 0.3810 | 731.0 | 638.1 | |
| 0.00 | 2.64 | 0.00 | 1.41 | -8.84 | 25.69 | 22.02 | 261.73 | 0.3760 | 727.0 | 682.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -8.34 | 25.63 | 21.96 | 263.07 | 0.3743 | 835.0 | 735.7 | |
| 1.41 | 13.12 | 0.75 | 7.02 | -11.38 | 25.61 | 21.94 | 255.04 | 0.3807 | 882.2 | 740.8 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -12.79 | 25.73 | 22.06 | 251.51 | 0.3878 | 696.0 | 534.6 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -8.95 | 25.30 | 21.63 | 261.35 | 0.3700 | 770.0 | 656.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.10 | 25.62 | 21.95 | 250.68 | 0.3875 | 809.0 | 680.8 | |
| 4.84 | -18.00 | 2.59 | -18.00 | -11.23 | 25.43 | 21.76 | 255.33 | 0.3775 | 1028.4 | 999999 | |
| 0.70 | 1.58 | 0.38 | 0.85 | -11.85 | 25.22 | 21.55 | 253.61 | 0.3763 | 954.4 | 811.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -8.43 | 24.75 | 21.08 | 262.64 | 0.3604 | 696.0 | 506.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -8.97 | 24.75 | 21.08 | 261.14 | 0.3612 | 888.0 | 823.7 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -9.46 | 24.52 | 20.85 | 259.70 | 0.3584 | 787.0 | 700.7 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -9.28 | 24.44 | 20.77 | 260.17 | 0.3568 | 923.0 | 788.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.47 | 24.29 | 20.62 | 259.60 | 0.3548 | 701.0 | 559.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -9.02 | 24.20 | 20.53 | 260.83 | 0.3524 | 881.0 | 755.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.84 | 24.19 | 20.52 | 261.34 | 0.3519 | 794.0 | 632.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.68 | 23.33 | 19.66 | 258.60 | 0.3399 | 827.0 | 682.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.40 | 23.29 | 19.62 | 250.83 | 0.3488 | -539.0 | -419.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.38 | 22.96 | 19.29 | 253.45 | 0.3393 | -746.0 | -529.2 | |
| 0.00 | 2.99 | 0.00 | 1.58 | -12.32 | 22.89 | 19.23 | 250.73 | 0.3423 | -849.0 | -668.6 | |
| 0.44 | 5.81 | 0.23 | 3.06 | -11.87 | 22.80 | 19.13 | 251.94 | 0.3388 | -846.0 | -563.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.86 | 23.04 | 19.37 | 243.99 | 0.3583 | 657.0 | 510.2 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -9.44 | 22.45 | 18.78 | 258.92 | 0.3250 | 956.0 | 778.2 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.07 | 22.49 | 18.82 | 257.03 | 0.3273 | 819.0 | 710.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.62 | 22.49 | 18.82 | 255.40 | 0.3290 | 779.0 | 648.5 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -10.83 | 22.43 | 18.77 | 254.73 | 0.3290 | 872.0 | 702.9 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -9.09 | 22.33 | 18.66 | 259.97 | 0.3223 | 782.0 | 631.5 | |
| 0.00 | 1.67 | 0.00 | 0.88 | -11.04 | 22.35 | 18.68 | 254.04 | 0.3284 | 874.0 | 712.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.65 | 22.26 | 18.59 | 255.15 | 0.3256 | 900.0 | 719.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.57 | 21.90 | 18.23 | 255.15 | 0.3196 | 718.0 | 575.1 | |
| 0.00 | 2.82 | 0.00 | 1.47 | -10.34 | 21.70 | 18.03 | 255.75 | 0.3155 | 970.0 | 791.2 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -11.69 | 21.75 | 18.08 | 251.63 | 0.3216 | 740.0 | 608.9 | |
| 0.00 | 2.29 | 0.00 | 1.20 | -12.89 | 21.32 | 17.65 | 247.68 | 0.3208 | -19.0 | -63.8 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -11.52 | 20.49 | 16.82 | 251.07 | 0.3010 | -615.0 | -479.7 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -10.51 | 20.08 | 16.41 | 254.05 | 0.2902 | 748.0 | 576.6 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -11.70 | 19.41 | 15.74 | 249.41 | 0.2851 | -693.0 | -578.2 | |
| 0.00 | 3.17 | 0.00 | 1.64 | -11.22 | 19.29 | 15.62 | 250.91 | 0.2807 | -657.0 | -525.3 | |
| 0.00 | 3.70 | 0.00 | 1.91 | -11.96 | 18.92 | 15.25 | 247.99 | 0.2787 | -753.0 | -624.4 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -11.96 | 18.66 | 14.99 | 247.67 | 0.2748 | -911.0 | -699.6 | |
| 0.00 | 2.20 | 0.00 | 1.13 | -10.74 | 18.41 | 14.74 | 251.74 | 0.2644 | -709.0 | -568.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -9.82 | 17.77 | 14.10 | 254.57 | 0.2501 | -637.0 | -545.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.86 | 17.69 | 14.02 | 239.89 | 0.2732 | -632.0 | -493.3 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -11.94 | 17.43 | 13.76 | 246.14 | 0.2556 | -747.0 | -605.6 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -12.63 | 17.43 | 13.76 | 243.66 | 0.2602 | -674.0 | -595.3 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -10.10 | 17.22 | 13.55 | 252.90 | 0.2424 | -760.0 | -552.0 | |
| 0.00 | 4.93 | 0.00 | 2.53 | -13.27 | 17.31 | 13.64 | 241.25 | 0.2630 | -502.0 | -694.9 | |
| 0.00 | 1.94 | 0.00 | 0.99 | -11.97 | 17.24 | 13.57 | 245.75 | 0.2529 | -998.0 | -743.9 | |
| 0.00 | 4.49 | 0.00 | 2.31 | -14.05 | 17.29 | 13.62 | 238.58 | 0.2689 | -496.0 | -594.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.81 | 16.70 | 13.03 | 253.53 | 0.2328 | -879.0 | -776.6 | |
| 2.11 | 6.43 | 1.08 | 3.27 | -10.42 | 16.48 | 12.81 | 250.74 | 0.2320 | -983.7 | -775.3 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -10.28 | 16.19 | 12.52 | 250.98 | 0.2267 | -682.0 | -706.8 | |
| 0.00 | 1.94 | 0.00 | 0.99 | -14.32 | 16.32 | 12.65 | 235.89 | 0.2574 | -802.0 | -632.9 | |
| 28.00 | 191.58 | 14.26 | 97.53 | -12.06 | 16.02 | 12.35 | 243.46 | 0.2348 | -1154.1 | -470.5 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -10.49 | 15.95 | 12.28 | 249.74 | 0.2239 | -411.0 | -459.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -13.51 | 15.93 | 12.26 | 237.89 | 0.2448 | -804.0 | -533.2 | |
| 12.33 | -67.00 | 6.27 | -67.00 | -12.22 | 15.65 | 11.98 | 242.18 | 0.2304 | -1146.2 | 999999 | |
| 4.05 | -67.00 | 2.06 | -67.00 | -11.92 | 15.38 | 11.71 | 242.86 | 0.2242 | -1290.0 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.20 | -9.67 | 15.23 | 11.56 | 252.44 | 0.2082 | -930.0 | -802.7 | |
| 0.00 | 6.52 | 0.00 | 3.30 | -10.45 | 15.23 | 11.56 | 248.88 | 0.2123 | -900.0 | -737.6 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -9.16 | 14.94 | 11.27 | 254.47 | 0.2012 | -927.0 | -690.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.79 | 14.96 | 11.29 | 251.48 | 0.2044 | -743.0 | -530.1 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -10.85 | 14.75 | 11.08 | 246.27 | 0.2071 | -790.0 | -726.1 | |
| 0.00 | 2.47 | 0.00 | 1.25 | -11.19 | 14.35 | 10.69 | 244.01 | 0.2033 | -954.0 | -716.0 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -9.49 | 13.53 | 9.86 | 250.79 | 0.1796 | -729.0 | -526.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
