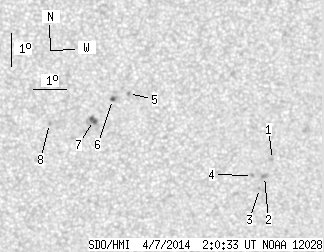

SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.82 | 20.07 | 1.40 | 9.98 | -8.00 | 7.00 | 3.33 | 236.15 | 0.0673 | -131.3 | -216.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.75 | 10.68 | 7.01 | 249.48 | 0.1295 | 748.0 | 544.8 | |
| 0.00 | 3.08 | 0.00 | 1.54 | -9.26 | 10.45 | 6.78 | 245.11 | 0.1290 | 958.0 | 795.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.62 | 10.30 | 6.63 | 242.08 | 0.1295 | 830.0 | 594.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.23 | 10.08 | 6.41 | 244.09 | 0.1231 | 944.0 | 756.3 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -6.80 | 6.29 | 2.62 | 256.94 | 0.0468 | -1000.0 | -779.4 | |
| 0.88 | 3.17 | 0.44 | 1.57 | -6.98 | 5.80 | 2.13 | 249.73 | 0.0396 | -1090.6 | -813.6 | |
| 1.94 | 7.48 | 0.96 | 3.71 | -7.61 | 5.23 | 1.56 | 227.63 | 0.0367 | -1126.4 | -803.7 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -7.70 | 3.90 | 0.23 | 188.62 | 0.0266 | -931.0 | -789.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
