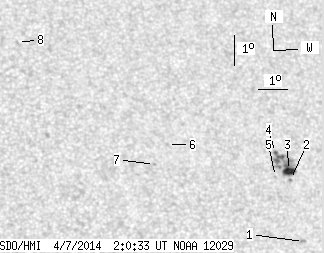

SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.93 | 40.05 | 4.84 | 24.40 | 17.64 | 30.32 | 26.65 | 312.65 | 0.5836 | -441.4 | -505.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 1.16 | 15.28 | 30.93 | 27.26 | 308.75 | 0.5688 | -657.0 | -582.0 | |
| 0.00 | 1.41 | 0.00 | 0.86 | 17.28 | 30.78 | 27.11 | 311.66 | 0.5847 | -746.0 | -617.6 | |
| 7.31 | 33.28 | 4.46 | 20.34 | 17.57 | 30.76 | 27.09 | 312.07 | 0.5871 | -880.1 | -595.0 | |
| 0.62 | -3.00 | 0.38 | -3.00 | 18.15 | 30.39 | 26.72 | 313.20 | 0.5885 | -697.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 17.35 | 30.26 | 26.59 | 312.30 | 0.5799 | -729.0 | -588.8 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 18.23 | 26.64 | 22.97 | 317.57 | 0.5516 | 516.0 | 389.5 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 17.55 | 26.10 | 22.43 | 317.36 | 0.5392 | 583.0 | 547.8 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 21.45 | 21.96 | 18.30 | 327.53 | 0.5463 | 695.0 | 601.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
