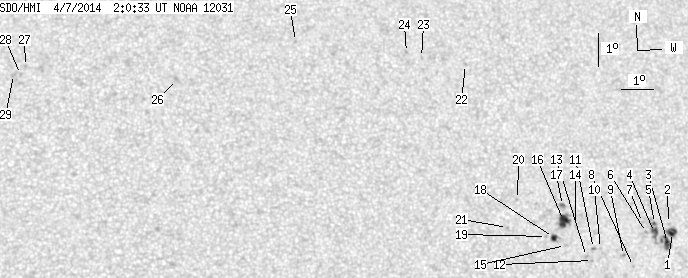

SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.44 | 79.76 | 14.27 | 44.26 | 3.18 | 28.19 | 24.52 | 291.89 | 0.4478 | -26.6 | -101.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.19 | 33.19 | 2.96 | 18.83 | 2.61 | 31.89 | 28.22 | 286.54 | 0.4948 | -747.0 | -662.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 2.87 | 31.77 | 28.10 | 287.14 | 0.4942 | -591.0 | -389.9 | |
| 4.84 | -1.00 | 2.75 | -1.00 | 2.29 | 31.72 | 28.05 | 286.04 | 0.4908 | -793.1 | 999999 | |
| 3.87 | -1.00 | 2.19 | -1.00 | 2.58 | 31.28 | 27.61 | 286.86 | 0.4858 | -1045.1 | 999999 | |
| 0.62 | -1.00 | 0.35 | -1.00 | 2.85 | 31.29 | 27.62 | 287.39 | 0.4872 | -738.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 2.56 | 31.01 | 27.34 | 287.01 | 0.4818 | -777.0 | -606.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 2.86 | 30.88 | 27.21 | 287.68 | 0.4813 | -644.0 | -527.7 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 1.51 | 30.55 | 26.88 | 285.17 | 0.4702 | -611.0 | -555.9 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 1.83 | 30.22 | 26.55 | 286.02 | 0.4667 | -707.0 | -516.9 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 2.00 | 29.45 | 25.78 | 286.89 | 0.4562 | 237.0 | 231.5 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 1.99 | 29.22 | 25.55 | 287.03 | 0.4526 | 478.0 | 330.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 1.63 | 29.18 | 25.51 | 286.28 | 0.4503 | -681.0 | -553.8 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 1.74 | 28.98 | 25.31 | 286.65 | 0.4479 | -768.0 | -543.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 2.63 | 28.63 | 24.96 | 288.80 | 0.4472 | 557.0 | 474.2 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 2.04 | 28.29 | 24.62 | 287.79 | 0.4391 | -624.0 | -477.0 | |
| 8.19 | 11.09 | 4.52 | 6.12 | 2.80 | 28.24 | 24.57 | 289.45 | 0.4423 | 975.0 | 722.9 | |
| 0.00 | 2.38 | 0.00 | 1.31 | 3.25 | 28.22 | 24.55 | 290.43 | 0.4445 | 855.0 | 665.6 | |
| 2.73 | 5.63 | 1.50 | 3.10 | 2.26 | 27.90 | 24.23 | 288.57 | 0.4344 | 511.7 | 299.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 2.29 | 27.67 | 24.00 | 288.79 | 0.4311 | -651.0 | -517.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 3.37 | 26.74 | 23.07 | 291.95 | 0.4236 | 543.0 | 364.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 2.50 | 26.39 | 22.73 | 290.33 | 0.4133 | -729.0 | -617.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 7.44 | 25.21 | 21.54 | 302.10 | 0.4316 | 523.0 | 390.4 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 7.60 | 23.79 | 20.12 | 304.24 | 0.4143 | 630.0 | 568.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 7.74 | 23.32 | 19.65 | 305.17 | 0.4093 | 746.0 | 589.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 7.96 | 19.79 | 16.12 | 311.17 | 0.3670 | 732.0 | 609.0 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 6.69 | 16.03 | 12.36 | 316.06 | 0.3078 | 830.0 | 643.7 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 7.01 | 11.41 | 7.74 | 329.59 | 0.2651 | 730.0 | 546.3 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 6.76 | 11.25 | 7.58 | 329.62 | 0.2601 | 663.0 | 604.9 | |
| 0.00 | 2.20 | 0.00 | 1.13 | 6.76 | 11.04 | 7.37 | 330.32 | 0.2583 | 744.0 | 621.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
