SDO HMI 2014-04-07 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.54 | 301.36 | 29.54 | 156.73 | -11.35 | 19.17 | 16.60 | 249.95 | 0.2986 | 26.2 | -209.4 | |
|
previous
or next observation for the same group /

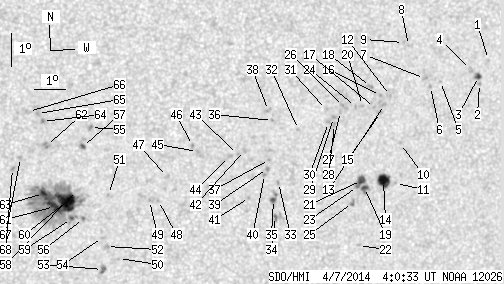

back to the solar disc SDO HMI 2014-04-07 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.34 | -7.33 | 29.53 | 26.96 | 266.00 | 0.4526 | 501.0 | 382.3 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -8.06 | 29.27 | 26.70 | 264.35 | 0.4489 | 692.0 | 598.8 | |
| 2.03 | 3.26 | 1.12 | 1.80 | -7.86 | 29.22 | 26.65 | 264.81 | 0.4481 | 849.4 | 677.9 | |
| 0.00 | 2.82 | 0.00 | 1.56 | -7.66 | 28.94 | 26.37 | 265.24 | 0.4436 | 448.0 | 510.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -8.06 | 27.96 | 25.38 | 264.22 | 0.4284 | 755.0 | 590.2 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -8.23 | 27.63 | 25.06 | 263.80 | 0.4235 | 746.0 | 510.0 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -8.00 | 27.42 | 24.84 | 264.32 | 0.4199 | 664.0 | 566.8 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -7.03 | 26.83 | 24.25 | 266.62 | 0.4101 | 658.0 | 554.4 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -6.95 | 26.66 | 24.08 | 266.82 | 0.4074 | 829.0 | 675.0 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -9.98 | 26.75 | 24.18 | 259.41 | 0.4122 | 586.0 | 432.4 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -11.19 | 26.69 | 24.12 | 256.48 | 0.4140 | 607.0 | 526.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.56 | 26.32 | 23.75 | 262.81 | 0.4031 | 608.0 | 499.9 | |
| 0.00 | 2.11 | 0.00 | 1.14 | -8.83 | 26.14 | 23.57 | 262.08 | 0.4006 | 676.0 | 588.8 | |
| 10.83 | 13.91 | 5.87 | 7.54 | -11.12 | 26.28 | 23.71 | 256.49 | 0.4075 | 978.2 | 611.3 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -9.08 | 26.02 | 23.45 | 261.44 | 0.3991 | 809.0 | 683.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -8.57 | 25.99 | 23.42 | 262.71 | 0.3979 | 788.0 | 707.8 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -8.94 | 25.81 | 23.24 | 261.75 | 0.3956 | 911.0 | 648.5 | |
| 0.00 | 2.47 | 0.00 | 1.33 | -8.31 | 25.64 | 23.07 | 263.30 | 0.3921 | 857.0 | 696.9 | |
| 1.94 | 12.15 | 1.05 | 6.55 | -11.35 | 25.66 | 23.09 | 255.64 | 0.3986 | 906.4 | 779.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.89 | 25.41 | 22.84 | 261.77 | 0.3892 | 777.0 | 672.8 | |
| 4.14 | -19.00 | 2.23 | -19.00 | -11.15 | 25.55 | 22.98 | 256.10 | 0.3962 | 994.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -13.11 | 25.62 | 23.05 | 251.34 | 0.4043 | 752.0 | 584.8 | |
| 0.26 | -19.00 | 0.14 | -19.00 | -11.33 | 25.43 | 22.86 | 255.59 | 0.3949 | 1025.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -8.93 | 25.19 | 22.62 | 261.62 | 0.3856 | 726.0 | 553.2 | |
| 0.00 | 3.35 | 0.00 | 1.80 | -11.82 | 25.30 | 22.73 | 254.31 | 0.3946 | 874.0 | 733.1 | |
| 0.00 | 3.61 | 0.00 | 1.93 | -8.95 | 24.79 | 22.22 | 261.48 | 0.3794 | 947.0 | 695.7 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -9.10 | 24.70 | 22.13 | 261.05 | 0.3782 | 831.0 | 615.1 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -9.50 | 24.53 | 21.96 | 259.95 | 0.3762 | 702.0 | 610.9 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -9.29 | 24.49 | 21.92 | 260.49 | 0.3751 | 891.0 | 775.8 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -9.45 | 24.33 | 21.76 | 260.02 | 0.3729 | 787.0 | 710.3 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -9.06 | 24.24 | 21.67 | 261.03 | 0.3708 | 773.0 | 616.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -9.69 | 23.37 | 20.80 | 259.01 | 0.3581 | 919.0 | 656.5 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -11.31 | 22.83 | 20.26 | 254.25 | 0.3543 | -838.0 | -649.3 | |
| 0.53 | 4.58 | 0.28 | 2.43 | -12.34 | 22.81 | 20.24 | 251.43 | 0.3580 | -713.5 | -303.2 | |
| 1.23 | 5.81 | 0.65 | 3.08 | -11.83 | 22.70 | 20.13 | 252.74 | 0.3543 | -914.8 | -663.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.45 | 22.51 | 19.94 | 259.35 | 0.3438 | 916.0 | 757.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.63 | 22.49 | 19.92 | 255.96 | 0.3466 | 769.0 | 650.1 | |
| 0.00 | 2.73 | 0.00 | 1.44 | -9.16 | 22.36 | 19.79 | 260.15 | 0.3408 | 918.0 | 727.1 | |
| 0.00 | 2.03 | 0.00 | 1.07 | -10.90 | 22.44 | 19.87 | 255.16 | 0.3468 | 863.0 | 686.7 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -11.09 | 22.35 | 19.78 | 254.59 | 0.3460 | 908.0 | 771.8 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -11.79 | 21.92 | 19.35 | 252.29 | 0.3419 | 825.0 | 623.1 | |
| 0.00 | 1.94 | 0.00 | 1.02 | -10.39 | 21.66 | 19.09 | 256.21 | 0.3327 | 896.0 | 752.9 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -10.51 | 21.44 | 18.87 | 255.70 | 0.3296 | 746.0 | 626.9 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -10.58 | 21.19 | 18.62 | 255.34 | 0.3258 | 808.0 | 667.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.47 | 20.15 | 17.58 | 255.03 | 0.3089 | 746.0 | 591.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -10.29 | 19.98 | 17.41 | 255.47 | 0.3055 | 899.0 | 732.6 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -11.25 | 19.24 | 16.67 | 251.80 | 0.2975 | -495.0 | -326.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.98 | 19.00 | 16.42 | 249.20 | 0.2972 | -668.0 | -577.5 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -11.99 | 18.71 | 16.14 | 248.87 | 0.2928 | -877.0 | -700.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -13.76 | 17.83 | 15.26 | 242.09 | 0.2906 | -482.0 | -424.7 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -11.84 | 17.40 | 14.82 | 247.86 | 0.2716 | -781.0 | -611.5 | |
| 0.00 | 2.64 | 0.00 | 1.36 | -13.41 | 17.42 | 14.85 | 242.62 | 0.2821 | -791.0 | -676.7 | |
| 0.00 | 4.14 | 0.00 | 2.14 | -14.11 | 17.34 | 14.77 | 240.27 | 0.2860 | -928.0 | -742.8 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -13.14 | 17.28 | 14.71 | 243.29 | 0.2780 | -829.0 | -712.2 | |
| 0.00 | 2.47 | 0.00 | 1.26 | -9.84 | 16.73 | 14.16 | 254.51 | 0.2512 | -887.0 | -721.4 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -12.58 | 16.64 | 14.07 | 244.25 | 0.2647 | -821.0 | -643.3 | |
| 1.06 | 2.55 | 0.54 | 1.31 | -10.42 | 16.50 | 13.93 | 252.04 | 0.2501 | -1017.1 | -833.9 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -11.74 | 16.38 | 13.81 | 246.87 | 0.2552 | -379.0 | -330.8 | |
| 0.79 | 161.86 | 0.41 | 82.73 | -12.59 | 16.26 | 13.69 | 243.65 | 0.2590 | -820.3 | -552.7 | |
| 23.34 | -59.00 | 11.94 | -59.00 | -12.08 | 16.08 | 13.51 | 245.20 | 0.2528 | -1189.2 | 999999 | |
| 7.40 | -59.00 | 3.78 | -59.00 | -12.24 | 15.71 | 13.14 | 244.04 | 0.2482 | -1188.4 | 999999 | |
| 0.00 | 3.61 | 0.00 | 1.84 | -10.41 | 15.38 | 12.80 | 250.73 | 0.2320 | -923.0 | -870.7 | |
| 2.99 | -59.00 | 1.53 | -59.00 | -11.86 | 15.34 | 12.77 | 244.90 | 0.2400 | -1277.4 | 999999 | |
| 0.00 | 1.94 | 0.00 | 0.99 | -9.69 | 15.22 | 12.65 | 253.58 | 0.2261 | -996.0 | -814.2 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -9.46 | 15.06 | 12.49 | 254.43 | 0.2224 | -963.0 | -813.8 | |
| 0.00 | 2.91 | 0.00 | 1.47 | -9.40 | 14.78 | 12.20 | 254.36 | 0.2176 | -692.0 | -695.1 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -10.79 | 14.58 | 12.01 | 248.02 | 0.2214 | -863.0 | -649.4 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -11.13 | 14.34 | 11.77 | 246.21 | 0.2197 | -1049.0 | -882.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
