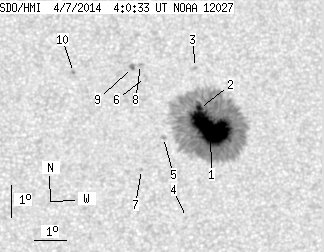

SDO HMI 2014-04-07 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.38 | 432.22 | 40.22 | 230.71 | 12.73 | 13.48 | 10.91 | 330.18 | 0.3732 | -1181.1 | -407.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.24 | 418.75 | 38.01 | 223.51 | 12.67 | 13.56 | 10.99 | 329.93 | 0.3729 | -1445.6 | -416.2 | |
| 3.61 | -1.00 | 1.93 | -1.00 | 13.30 | 13.25 | 10.68 | 331.48 | 0.3793 | -994.3 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 14.61 | 13.18 | 10.61 | 333.23 | 0.3974 | 687.0 | 556.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 9.85 | 12.71 | 10.14 | 327.74 | 0.3263 | 794.0 | 600.0 | |
| 0.00 | 2.64 | 0.00 | 1.40 | 12.35 | 12.08 | 9.51 | 332.99 | 0.3570 | -773.0 | -507.6 | |
| 0.00 | 1.94 | 0.00 | 1.04 | 14.26 | 11.60 | 9.02 | 336.41 | 0.3815 | -479.0 | -541.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.33 | 11.36 | 8.79 | 333.45 | 0.3367 | 647.0 | 482.2 | |
| 0.00 | 1.67 | 0.00 | 0.90 | 14.67 | 11.46 | 8.89 | 337.17 | 0.3867 | -668.0 | -564.3 | |
| 0.53 | 2.73 | 0.28 | 1.46 | 14.57 | 11.20 | 8.63 | 337.66 | 0.3837 | -922.5 | -677.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 14.38 | 9.35 | 6.78 | 341.95 | 0.3705 | 885.0 | 728.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
