SDO HMI 2014-04-07 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.52 | 152.94 | 26.65 | 79.28 | 10.30 | 0.45 | -2.12 | 6.68 | 0.2942 | -220.1 | -214.5 | |
|
previous
or next observation for the same group /

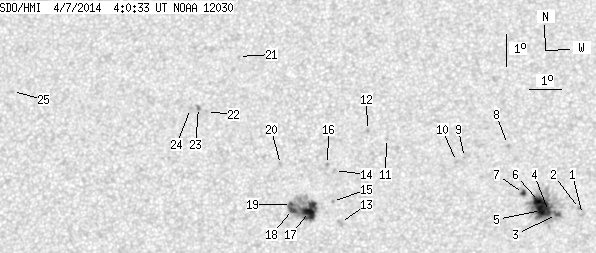

back to the solar disc SDO HMI 2014-04-07 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.77 | 9.83 | 5.10 | 2.53 | 351.04 | 0.2806 | -802.0 | -622.8 | |
| 0.00 | 1.76 | 0.00 | 0.91 | 10.02 | 5.01 | 2.44 | 351.45 | 0.2834 | -867.0 | -673.3 | |
| 2.03 | 74.68 | 1.04 | 38.55 | 9.83 | 4.31 | 1.74 | 353.81 | 0.2788 | -909.4 | -524.3 | |
| 3.70 | -3.00 | 1.91 | -3.00 | 9.92 | 4.07 | 1.50 | 354.71 | 0.2799 | -1123.8 | 999999 | |
| 10.30 | -3.00 | 5.31 | -3.00 | 9.95 | 3.85 | 1.28 | 355.46 | 0.2801 | -1389.5 | 999999 | |
| 10.39 | -3.00 | 5.37 | -3.00 | 10.23 | 3.79 | 1.22 | 355.75 | 0.2848 | -1149.7 | 999999 | |
| 1.94 | 3.17 | 1.00 | 1.64 | 10.48 | 3.31 | 0.74 | 357.48 | 0.2885 | -866.8 | -650.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 12.02 | 2.82 | 0.25 | 359.21 | 0.3140 | -626.0 | -664.2 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 11.62 | 1.50 | -1.07 | 3.41 | 0.3077 | -823.0 | -652.7 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 11.49 | 1.26 | -1.31 | 4.22 | 0.3059 | -887.0 | -701.4 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 12.23 | 359.11 | -3.47 | 10.59 | 0.3227 | -666.0 | -460.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.49 | 358.52 | -4.05 | 12.17 | 0.3288 | 695.0 | 621.3 | |
| 0.00 | 3.43 | 0.00 | 1.77 | 9.60 | 357.73 | -4.84 | 17.02 | 0.2856 | 838.0 | 665.4 | |
| 0.00 | 1.94 | 0.00 | 1.01 | 11.24 | 357.52 | -5.05 | 16.10 | 0.3127 | 756.0 | 567.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 10.26 | 357.48 | -5.09 | 17.17 | 0.2974 | 877.0 | 756.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 11.43 | 357.30 | -5.27 | 16.58 | 0.3168 | 780.0 | 641.4 | |
| 17.44 | 50.37 | 9.04 | 26.14 | 9.96 | 356.78 | -5.79 | 19.70 | 0.2962 | 986.1 | -9.9 | |
| 4.40 | -17.00 | 2.29 | -17.00 | 10.03 | 356.25 | -6.32 | 21.24 | 0.3004 | -1018.2 | 999999 | |
| 1.32 | -17.00 | 0.69 | -17.00 | 10.19 | 356.22 | -6.35 | 21.15 | 0.3030 | -1046.1 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 11.45 | 355.86 | -6.71 | 20.76 | 0.3247 | -743.0 | -479.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 14.90 | 354.45 | -8.12 | 20.83 | 0.3857 | 576.0 | 381.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 13.16 | 353.51 | -9.06 | 24.91 | 0.3656 | 541.0 | 478.5 | |
| 0.00 | 2.29 | 0.00 | 1.22 | 13.29 | 353.26 | -9.31 | 25.37 | 0.3693 | 1028.0 | 859.8 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 13.27 | 353.01 | -9.56 | 25.99 | 0.3706 | 595.0 | 521.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 13.95 | 347.34 | -15.23 | 36.80 | 0.4274 | 772.0 | 455.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
