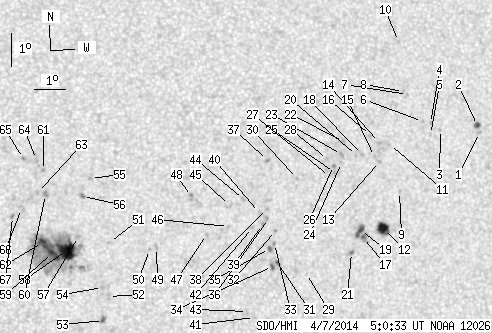

SDO HMI 2014-04-07 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.30 | 273.82 | 30.50 | 142.71 | -11.30 | 19.01 | 16.99 | 250.56 | 0.3043 | -16.4 | -218.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.74 | -8.06 | 29.34 | 27.31 | 264.40 | 0.4584 | 724.0 | 585.6 | |
| 1.94 | 3.17 | 1.08 | 1.76 | -7.85 | 29.25 | 27.23 | 264.85 | 0.4570 | 881.7 | 691.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -8.03 | 28.01 | 25.99 | 264.35 | 0.4378 | 646.0 | 496.1 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -7.86 | 27.66 | 25.64 | 264.70 | 0.4323 | 585.0 | 534.2 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -8.19 | 27.68 | 25.66 | 263.94 | 0.4329 | 683.0 | 436.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -7.82 | 27.39 | 25.37 | 264.79 | 0.4280 | 669.0 | 624.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -7.03 | 26.84 | 24.82 | 266.63 | 0.4191 | 699.0 | 547.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -6.94 | 26.70 | 24.68 | 266.83 | 0.4169 | 754.0 | 614.3 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -9.95 | 26.77 | 24.75 | 259.64 | 0.4210 | 472.0 | 415.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -5.45 | 26.47 | 24.44 | 270.45 | 0.4137 | 706.0 | 602.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -8.55 | 26.34 | 24.31 | 262.90 | 0.4120 | 655.0 | 501.5 | |
| 10.30 | 13.12 | 5.61 | 7.14 | -11.08 | 26.33 | 24.31 | 256.80 | 0.4167 | 1012.6 | 627.6 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -9.08 | 26.04 | 24.02 | 261.56 | 0.4080 | 829.0 | 642.8 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -8.51 | 26.00 | 23.98 | 262.95 | 0.4067 | 793.0 | 683.5 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -8.93 | 25.86 | 23.84 | 261.87 | 0.4050 | 898.0 | 620.8 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -8.31 | 25.69 | 23.67 | 263.39 | 0.4015 | 846.0 | 729.9 | |
| 1.14 | 12.68 | 0.62 | 6.87 | -11.38 | 25.69 | 23.66 | 255.82 | 0.4076 | 1008.8 | 760.6 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -8.89 | 25.46 | 23.44 | 261.90 | 0.3986 | 840.0 | 732.6 | |
| 4.49 | -17.00 | 2.43 | -17.00 | -11.18 | 25.57 | 23.54 | 256.27 | 0.4051 | 1037.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.93 | 25.26 | 23.24 | 261.76 | 0.3956 | 786.0 | 569.7 | |
| 0.00 | 1.94 | 0.00 | 1.05 | -11.85 | 25.33 | 23.30 | 254.51 | 0.4035 | 947.0 | 804.9 | |
| 0.00 | 2.20 | 0.00 | 1.18 | -8.53 | 24.81 | 22.79 | 262.69 | 0.3878 | 834.0 | 705.6 | |
| 0.00 | 1.94 | 0.00 | 1.04 | -8.92 | 24.77 | 22.75 | 261.67 | 0.3877 | 1011.0 | 860.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -9.16 | 24.78 | 22.76 | 261.05 | 0.3883 | 719.0 | 582.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -9.47 | 24.57 | 22.55 | 260.20 | 0.3855 | 727.0 | 630.3 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -9.26 | 24.53 | 22.50 | 260.72 | 0.3844 | 906.0 | 806.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -9.60 | 24.42 | 22.40 | 259.82 | 0.3833 | 696.0 | 536.7 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -9.09 | 24.32 | 22.30 | 261.12 | 0.3808 | 809.0 | 735.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -12.54 | 23.89 | 21.87 | 251.98 | 0.3840 | 601.0 | 608.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -9.70 | 23.37 | 21.35 | 259.20 | 0.3670 | 838.0 | 650.8 | |
| 0.53 | 2.03 | 0.28 | 1.08 | -12.25 | 22.91 | 20.88 | 252.11 | 0.3677 | -492.0 | -269.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.28 | 22.77 | 20.74 | 254.60 | 0.3618 | -686.0 | -600.3 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -11.68 | 22.76 | 20.74 | 253.53 | 0.3632 | -787.0 | -655.3 | |
| 1.06 | 2.55 | 0.56 | 1.36 | -12.37 | 22.75 | 20.73 | 251.67 | 0.3658 | -603.1 | -421.7 | |
| 0.70 | 2.55 | 0.37 | 1.36 | -11.83 | 22.61 | 20.59 | 253.02 | 0.3614 | -989.8 | -741.6 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -10.93 | 22.51 | 20.49 | 255.42 | 0.3567 | 618.0 | 620.8 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -9.19 | 22.37 | 20.34 | 260.24 | 0.3497 | 1002.0 | 818.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.63 | 22.46 | 20.44 | 256.22 | 0.3549 | 764.0 | 686.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.12 | 22.33 | 20.31 | 254.80 | 0.3544 | 931.0 | 756.5 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -10.76 | 22.21 | 20.18 | 255.72 | 0.3513 | 854.0 | 596.6 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -13.93 | 22.29 | 20.27 | 247.22 | 0.3663 | 635.0 | 490.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.22 | 22.01 | 19.99 | 254.32 | 0.3498 | 959.0 | 772.0 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -13.76 | 22.05 | 20.03 | 247.45 | 0.3617 | 640.0 | 530.5 | |
| 0.00 | 1.94 | 0.00 | 1.02 | -10.39 | 21.66 | 19.64 | 256.49 | 0.3415 | 829.0 | 694.8 | |
| 0.00 | 2.82 | 0.00 | 1.48 | -10.59 | 21.22 | 19.20 | 255.67 | 0.3351 | 660.0 | 610.2 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.22 | 21.23 | 19.21 | 253.83 | 0.3375 | 848.0 | 655.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.48 | 20.54 | 18.51 | 252.56 | 0.3276 | -795.0 | -574.0 | |
| 0.00 | 3.35 | 0.00 | 1.75 | -10.35 | 19.98 | 17.96 | 255.61 | 0.3146 | 800.0 | 712.0 | |
| 0.00 | 2.03 | 0.00 | 1.05 | -11.92 | 18.96 | 16.93 | 249.86 | 0.3049 | -805.0 | -719.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.99 | 18.74 | 16.71 | 249.43 | 0.3018 | -845.0 | -792.0 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -11.82 | 17.45 | 15.43 | 248.63 | 0.2808 | -772.0 | -609.1 | |
| 0.00 | 2.99 | 0.00 | 1.55 | -13.45 | 17.52 | 15.49 | 243.39 | 0.2919 | -678.0 | -622.3 | |
| 0.97 | 2.82 | 0.50 | 1.46 | -14.18 | 17.40 | 15.38 | 240.97 | 0.2954 | -859.3 | -705.9 | |
| 0.00 | 2.11 | 0.00 | 1.09 | -13.18 | 17.31 | 15.28 | 243.96 | 0.2869 | -932.0 | -656.5 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -9.91 | 16.75 | 14.73 | 254.74 | 0.2608 | -893.0 | -672.2 | |
| 0.00 | 2.38 | 0.00 | 1.22 | -10.45 | 16.52 | 14.50 | 252.47 | 0.2594 | -1094.0 | -950.4 | |
| 0.00 | 2.47 | 0.00 | 1.27 | -11.66 | 16.46 | 14.43 | 247.99 | 0.2645 | -259.0 | -270.5 | |
| 22.11 | 144.35 | 11.34 | 73.96 | -12.09 | 16.10 | 14.08 | 245.97 | 0.2616 | -1198.2 | -572.3 | |
| 9.95 | -58.00 | 5.10 | -58.00 | -12.16 | 15.66 | 13.64 | 245.09 | 0.2553 | -1231.0 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -10.42 | 15.36 | 13.34 | 251.32 | 0.2406 | -1084.0 | -913.3 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -9.70 | 15.27 | 13.24 | 254.15 | 0.2358 | -922.0 | -788.2 | |
| 5.11 | -58.00 | 2.61 | -58.00 | -11.87 | 15.33 | 13.31 | 245.68 | 0.2483 | -1219.9 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -10.37 | 15.11 | 13.08 | 251.24 | 0.2362 | -838.0 | -676.3 | |
| 0.00 | 5.20 | 0.00 | 2.64 | -9.38 | 15.04 | 13.01 | 255.28 | 0.2307 | -790.0 | -698.7 | |
| 0.00 | 2.03 | 0.00 | 1.03 | -9.35 | 14.63 | 12.61 | 254.97 | 0.2240 | -911.0 | -710.4 | |
| 0.00 | 3.35 | 0.00 | 1.70 | -10.86 | 14.63 | 12.60 | 248.59 | 0.2312 | -508.0 | -642.7 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -11.11 | 14.35 | 12.33 | 247.18 | 0.2284 | -1043.0 | -830.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
