SDO HMI 2014-04-07 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.98 | 417.38 | 41.15 | 223.22 | 12.75 | 13.50 | 11.48 | 328.95 | 0.3780 | -1243.9 | -410.5 | |
|
previous
or next observation for the same group /

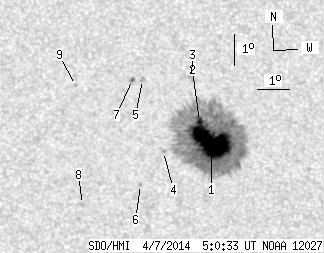

back to the solar disc SDO HMI 2014-04-07 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.28 | 403.64 | 39.17 | 215.89 | 12.69 | 13.58 | 11.56 | 328.69 | 0.3778 | -1474.9 | -427.5 | |
| 3.17 | -1.00 | 1.70 | -1.00 | 13.32 | 13.23 | 11.21 | 330.32 | 0.3837 | -1033.6 | 999999 | |
| 0.00 | 3.88 | 0.00 | 2.09 | 14.69 | 13.05 | 11.03 | 332.43 | 0.4015 | 440.0 | 532.3 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 12.34 | 12.06 | 10.04 | 331.69 | 0.3607 | -723.0 | -605.1 | |
| 0.00 | 2.82 | 0.00 | 1.51 | 14.63 | 11.50 | 9.48 | 335.76 | 0.3898 | -698.0 | -609.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 11.29 | 11.31 | 9.28 | 332.11 | 0.3397 | 737.0 | 509.0 | |
| 0.53 | 1.76 | 0.28 | 0.95 | 14.62 | 11.19 | 9.16 | 336.47 | 0.3877 | -867.7 | -711.1 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 10.63 | 9.50 | 7.47 | 336.10 | 0.3169 | 122.0 | 125.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 14.40 | 9.39 | 7.37 | 340.50 | 0.3738 | 868.0 | 648.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
