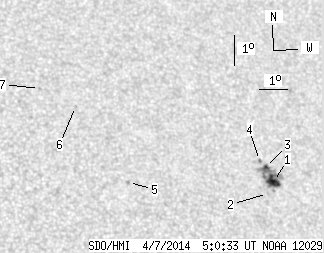

SDO HMI 2014-04-07 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.19 | 37.09 | 6.94 | 22.91 | 17.73 | 30.14 | 28.12 | 311.29 | 0.5994 | -460.6 | -422.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.34 | 31.27 | 5.79 | 19.40 | 17.55 | 30.71 | 28.69 | 310.43 | 0.6035 | -950.3 | -568.9 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 17.14 | 30.42 | 28.40 | 310.16 | 0.5970 | -181.0 | -159.5 | |
| 1.85 | -1.00 | 1.15 | -1.00 | 18.00 | 30.50 | 28.48 | 311.22 | 0.6051 | -769.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.98 | 18.22 | 30.33 | 28.30 | 311.68 | 0.6052 | -598.0 | -550.3 | |
| 0.00 | 1.41 | 0.00 | 0.83 | 17.26 | 25.58 | 23.55 | 315.58 | 0.5474 | 745.0 | 629.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 19.71 | 24.10 | 22.08 | 320.50 | 0.5585 | 492.0 | 485.8 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 20.26 | 22.95 | 20.93 | 322.63 | 0.5542 | 429.0 | 398.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
