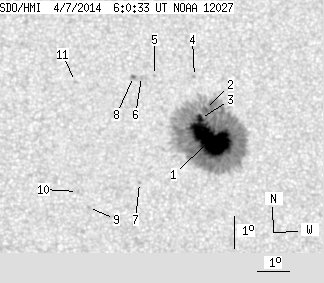

SDO HMI 2014-04-07 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.07 | 409.75 | 42.89 | 219.55 | 12.74 | 13.45 | 11.98 | 327.86 | 0.3820 | -1184.1 | -412.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.90 | 399.70 | 39.58 | 214.22 | 12.68 | 13.53 | 12.06 | 327.58 | 0.3818 | -1493.3 | -427.8 | |
| 1.59 | -1.00 | 0.85 | -1.00 | 13.63 | 13.43 | 11.95 | 329.13 | 0.3939 | -263.3 | 999999 | |
| 4.05 | -1.00 | 2.18 | -1.00 | 13.34 | 13.25 | 11.78 | 329.11 | 0.3885 | -1017.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 14.68 | 13.14 | 11.66 | 331.09 | 0.4061 | 639.0 | 510.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 14.69 | 11.87 | 10.40 | 333.78 | 0.3968 | -615.0 | -425.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 14.65 | 11.46 | 9.98 | 334.65 | 0.3934 | -691.0 | -627.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.27 | 11.26 | 9.78 | 330.83 | 0.3433 | 786.0 | 631.4 | |
| 0.53 | 2.20 | 0.28 | 1.18 | 14.64 | 11.21 | 9.73 | 335.20 | 0.3916 | -909.5 | -713.4 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 10.46 | 9.65 | 8.18 | 333.89 | 0.3192 | 773.0 | 587.6 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 10.96 | 9.33 | 7.85 | 335.46 | 0.3243 | 731.0 | 592.9 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 14.45 | 9.38 | 7.90 | 339.25 | 0.3774 | 827.0 | 560.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
