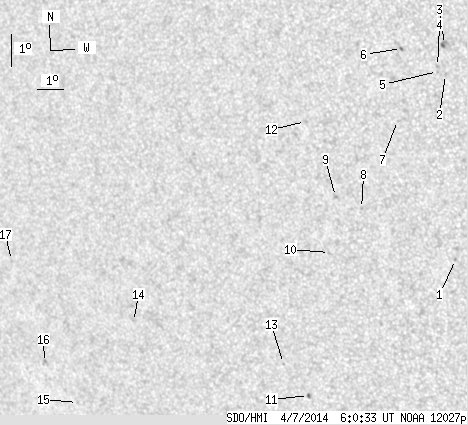

SDO HMI 2014-04-07 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 23.98 | 0.28 | 14.62 | -18.25 | 327.59 | -33.88 | 112.95 | 0.5739 | 246.0 | 203.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.61 | -20.13 | 333.37 | -28.10 | 119.76 | 0.5115 | 821.0 | 679.0 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.47 | 333.96 | -27.52 | 109.22 | 0.4757 | 836.0 | 592.5 | |
| 0.00 | 4.32 | 0.00 | 2.42 | -13.56 | 334.04 | -27.43 | 107.39 | 0.4712 | 717.0 | 713.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -14.22 | 333.71 | -27.76 | 108.58 | 0.4783 | 776.0 | 588.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -14.37 | 333.69 | -27.78 | 108.88 | 0.4792 | 633.0 | 559.7 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -13.61 | 332.53 | -28.95 | 106.84 | 0.4935 | -707.0 | -601.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.78 | 332.06 | -29.41 | 110.86 | 0.5078 | 643.0 | 552.4 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -18.39 | 330.28 | -31.20 | 114.71 | 0.5432 | 599.0 | 466.8 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -17.97 | 329.40 | -32.08 | 113.52 | 0.5531 | 771.0 | 568.2 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -19.67 | 328.80 | -32.68 | 116.12 | 0.5684 | 572.0 | 510.2 | |
| 0.44 | 1.76 | 0.28 | 1.10 | -24.04 | 326.80 | -34.68 | 121.96 | 0.6147 | 735.0 | 616.2 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -15.63 | 328.73 | -32.74 | 109.12 | 0.5534 | 643.0 | 499.0 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -22.99 | 326.12 | -35.35 | 119.99 | 0.6173 | -635.0 | -522.3 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -21.30 | 320.47 | -41.01 | 115.02 | 0.6770 | -575.0 | -471.0 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -23.62 | 317.09 | -44.39 | 117.09 | 0.7222 | -534.0 | -409.7 | |
| 0.00 | 2.47 | 0.00 | 1.78 | -22.28 | 316.13 | -45.34 | 115.00 | 0.7286 | -664.0 | -528.5 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -19.05 | 315.87 | -45.61 | 110.56 | 0.7237 | -586.0 | -458.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
