SDO HMI 2014-04-07 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.20 | 152.46 | 27.50 | 78.97 | 10.25 | 0.61 | -0.86 | 2.55 | 0.2915 | -197.9 | -200.1 | |
|
previous
or next observation for the same group /

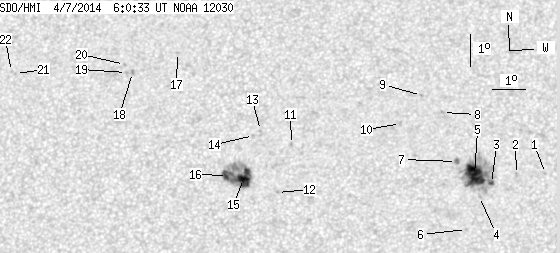

back to the solar disc SDO HMI 2014-04-07 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.41 | 10.11 | 5.99 | 4.52 | 344.53 | 0.2920 | 683.0 | 524.9 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 10.07 | 5.11 | 3.63 | 347.43 | 0.2878 | -753.0 | -627.3 | |
| 1.23 | 76.72 | 0.64 | 39.62 | 9.79 | 4.34 | 2.87 | 349.84 | 0.2806 | -909.3 | -464.2 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 9.38 | 3.97 | 2.50 | 350.90 | 0.2728 | -183.0 | -148.0 | |
| 26.95 | -3.00 | 13.92 | -3.00 | 10.04 | 3.82 | 2.35 | 351.77 | 0.2833 | -1243.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 8.35 | 3.57 | 2.09 | 351.80 | 0.2546 | -804.0 | -717.8 | |
| 0.00 | 2.99 | 0.00 | 1.55 | 10.47 | 3.28 | 1.80 | 353.84 | 0.2895 | -1146.0 | -883.9 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 12.01 | 2.86 | 1.39 | 355.67 | 0.3145 | -796.0 | -612.9 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 12.55 | 2.22 | 0.74 | 357.74 | 0.3228 | -692.0 | -559.4 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 11.67 | 1.57 | 0.10 | 359.69 | 0.3078 | -801.0 | -627.0 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 11.02 | 358.24 | -3.24 | 10.63 | 0.3020 | 866.0 | 615.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 9.52 | 357.82 | -3.65 | 13.08 | 0.2788 | 878.0 | 757.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.47 | 357.28 | -4.19 | 13.31 | 0.3126 | 587.0 | 383.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.31 | 357.07 | -4.41 | 14.09 | 0.3110 | 658.0 | 546.9 | |
| 18.85 | 52.76 | 9.75 | 27.33 | 9.97 | 356.78 | -4.69 | 16.18 | 0.2905 | 917.9 | 63.9 | |
| 6.17 | -15.00 | 3.19 | -15.00 | 10.07 | 356.29 | -5.19 | 17.67 | 0.2945 | -999.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 13.97 | 354.66 | -6.81 | 18.51 | 0.3642 | 712.0 | 532.1 | |
| 0.00 | 1.85 | 0.00 | 0.98 | 13.36 | 353.28 | -8.20 | 22.59 | 0.3627 | 1057.0 | 875.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 13.36 | 353.09 | -8.38 | 23.05 | 0.3639 | 749.0 | 668.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 13.62 | 353.02 | -8.45 | 22.94 | 0.3682 | 712.0 | 558.2 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 13.40 | 349.61 | -11.86 | 30.99 | 0.3901 | 742.0 | 565.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 13.47 | 349.48 | -11.99 | 31.17 | 0.3921 | 651.0 | 479.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
