SDO HMI 2014-04-07 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.74 | 0.00 | 5.56 | -17.08 | 348.66 | -12.27 | 134.76 | 0.2849 | -844.0 | -727.6 | |
|
previous
or next observation for the same group /

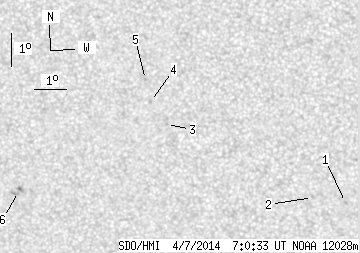

back to the solar disc SDO HMI 2014-04-07 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.67 | -18.23 | 355.55 | -5.38 | 156.94 | 0.2285 | -1013.0 | -813.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -18.06 | 354.51 | -6.42 | 152.77 | 0.2334 | -689.0 | -567.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -15.75 | 349.98 | -10.95 | 132.64 | 0.2496 | -825.0 | -586.2 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -15.05 | 349.51 | -11.41 | 129.27 | 0.2480 | -809.0 | -667.3 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -14.37 | 349.39 | -11.54 | 126.76 | 0.2429 | -961.0 | -794.0 | |
| 0.00 | 5.20 | 0.00 | 2.73 | -17.68 | 345.07 | -15.86 | 127.99 | 0.3318 | -767.0 | -773.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
