SDO HMI 2014-04-07 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.03 | 147.53 | 25.86 | 76.34 | 10.17 | 0.75 | -0.18 | 0.45 | 0.2893 | -230.5 | -205.5 | |
|
previous
or next observation for the same group /

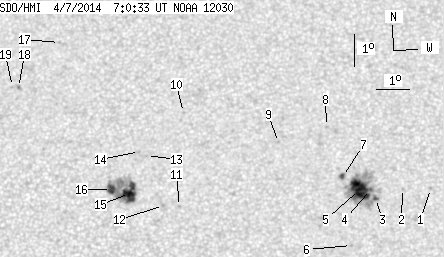

back to the solar disc SDO HMI 2014-04-07 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | 10.12 | 6.00 | 5.07 | 342.76 | 0.2947 | 813.0 | 629.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 10.11 | 5.14 | 4.21 | 345.53 | 0.2907 | -619.0 | -511.0 | |
| 0.79 | 77.25 | 0.41 | 39.91 | 9.80 | 4.31 | 3.38 | 348.06 | 0.2823 | -913.4 | -494.6 | |
| 0.26 | -3.00 | 0.14 | -3.00 | 10.08 | 4.16 | 3.23 | 348.77 | 0.2864 | -891.7 | 999999 | |
| 25.46 | -3.00 | 13.15 | -3.00 | 10.07 | 3.83 | 2.90 | 349.91 | 0.2854 | -1239.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 8.33 | 3.57 | 2.64 | 349.69 | 0.2556 | -871.0 | -751.5 | |
| 1.50 | 2.73 | 0.77 | 1.41 | 10.48 | 3.31 | 2.38 | 351.88 | 0.2907 | -910.2 | -666.1 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 12.05 | 2.84 | 1.91 | 354.06 | 0.3158 | -818.0 | -589.1 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.54 | 1.36 | 0.43 | 358.61 | 0.3058 | -852.0 | -646.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 12.50 | 358.44 | -2.49 | 7.53 | 0.3244 | 778.0 | 561.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 9.55 | 358.34 | -2.59 | 9.33 | 0.2758 | 817.0 | 595.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 9.58 | 357.85 | -3.07 | 11.02 | 0.2778 | 947.0 | 818.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.15 | 357.32 | -3.61 | 11.72 | 0.3053 | 875.0 | 665.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 11.28 | 357.10 | -3.82 | 12.31 | 0.3082 | 666.0 | 554.8 | |
| 16.65 | 54.96 | 8.61 | 28.45 | 9.97 | 356.81 | -4.11 | 14.28 | 0.2879 | 1054.4 | 54.5 | |
| 5.37 | -15.00 | 2.78 | -15.00 | 10.10 | 356.26 | -4.67 | 15.97 | 0.2924 | -1175.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 14.77 | 354.56 | -6.37 | 16.72 | 0.3743 | 632.0 | 526.2 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 13.35 | 353.32 | -7.60 | 21.12 | 0.3589 | 964.0 | 860.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 13.39 | 353.14 | -7.79 | 21.55 | 0.3606 | 737.0 | 626.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
