SDO HMI 2014-04-07 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.01 | 92.22 | 21.36 | 52.72 | 3.01 | 29.08 | 28.15 | 288.27 | 0.4976 | -36.8 | -63.7 | |
|
previous
or next observation for the same group /

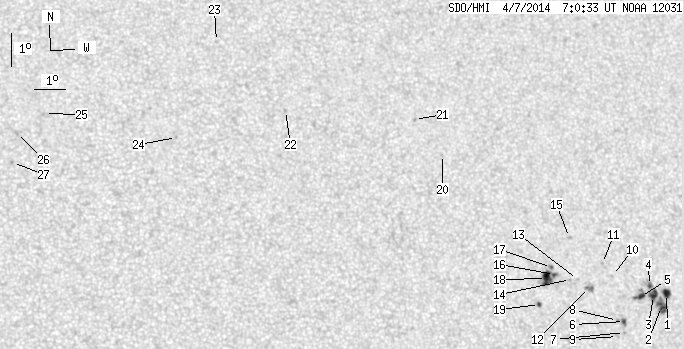

back to the solar disc SDO HMI 2014-04-07 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.11 | 35.32 | 3.00 | 20.65 | 2.62 | 32.17 | 31.24 | 284.84 | 0.5381 | -764.3 | -623.6 | |
| 7.57 | -1.00 | 4.43 | -1.00 | 2.21 | 31.98 | 31.05 | 284.20 | 0.5338 | -959.3 | 999999 | |
| 5.73 | -1.00 | 3.34 | -1.00 | 2.53 | 31.71 | 30.78 | 284.92 | 0.5312 | -1013.0 | 999999 | |
| 1.06 | -1.00 | 0.62 | -1.00 | 2.83 | 31.58 | 30.65 | 285.53 | 0.5305 | -885.8 | 999999 | |
| 3.88 | 7.66 | 2.25 | 4.45 | 2.48 | 31.25 | 30.32 | 285.06 | 0.5244 | -955.7 | -743.4 | |
| 1.50 | 3.44 | 0.86 | 1.98 | 1.69 | 30.68 | 29.75 | 283.88 | 0.5130 | -929.6 | -690.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 1.35 | 30.67 | 29.74 | 283.26 | 0.5116 | -844.0 | -731.8 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 1.70 | 30.44 | 29.51 | 284.04 | 0.5095 | -616.0 | -553.3 | |
| 0.00 | 1.85 | 0.00 | 1.06 | 1.22 | 30.43 | 29.50 | 283.12 | 0.5076 | -807.0 | -677.5 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 3.06 | 30.30 | 29.37 | 286.68 | 0.5133 | -713.0 | -568.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 3.41 | 29.97 | 29.04 | 287.53 | 0.5101 | 233.0 | 210.5 | |
| 0.00 | 5.64 | 0.00 | 3.22 | 2.66 | 29.50 | 28.57 | 286.38 | 0.4999 | 767.0 | 443.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 2.88 | 29.09 | 28.16 | 287.06 | 0.4951 | 665.0 | 494.5 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 2.87 | 28.85 | 27.92 | 287.18 | 0.4916 | 740.0 | 577.9 | |
| 0.00 | 1.85 | 0.00 | 1.06 | 4.15 | 28.86 | 27.93 | 289.63 | 0.4981 | -807.0 | -592.0 | |
| 1.23 | 17.44 | 0.70 | 9.84 | 2.99 | 28.31 | 27.38 | 287.78 | 0.4843 | 870.9 | 631.6 | |
| 0.62 | 1.85 | 0.35 | 1.05 | 3.20 | 28.22 | 27.29 | 288.25 | 0.4840 | 655.9 | 508.6 | |
| 9.16 | -16.00 | 5.17 | -16.00 | 2.86 | 28.04 | 27.11 | 287.69 | 0.4797 | 1063.3 | 999999 | |
| 1.15 | 1.94 | 0.64 | 1.09 | 2.06 | 27.78 | 26.85 | 286.25 | 0.4721 | 669.5 | 575.6 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 6.49 | 24.71 | 23.78 | 297.68 | 0.4544 | 657.0 | 603.3 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 7.53 | 23.85 | 22.92 | 300.63 | 0.4505 | 706.0 | 601.7 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 7.65 | 19.67 | 18.74 | 306.23 | 0.3965 | 787.0 | 649.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 9.72 | 17.57 | 16.65 | 313.67 | 0.3920 | 671.0 | 466.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 6.71 | 16.18 | 15.25 | 309.99 | 0.3426 | 836.0 | 740.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 7.35 | 12.10 | 11.17 | 320.35 | 0.3025 | 739.0 | 616.8 | |
| 0.00 | 1.94 | 0.00 | 1.00 | 6.72 | 11.22 | 10.30 | 321.28 | 0.2850 | 764.0 | 678.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 5.82 | 11.08 | 10.15 | 319.62 | 0.2719 | 778.0 | 573.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
