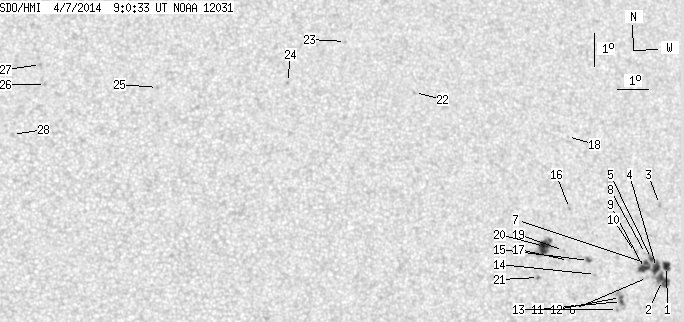

SDO HMI 2014-04-07 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.72 | 106.67 | 26.75 | 61.82 | 2.96 | 29.48 | 29.64 | 287.07 | 0.5182 | -161.0 | -126.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.02 | 48.62 | 2.98 | 28.77 | 2.60 | 32.28 | 32.44 | 284.21 | 0.5550 | -704.9 | -652.8 | |
| 9.42 | -1.00 | 5.59 | -1.00 | 2.17 | 32.12 | 32.29 | 283.52 | 0.5511 | -924.4 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.16 | 4.48 | 32.10 | 32.27 | 287.53 | 0.5604 | -624.0 | -467.9 | |
| 6.08 | -1.00 | 3.60 | -1.00 | 2.55 | 31.92 | 32.09 | 284.29 | 0.5497 | -1019.8 | 999999 | |
| 1.94 | -1.00 | 1.15 | -1.00 | 2.81 | 31.75 | 31.92 | 284.83 | 0.5484 | -768.6 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 2.23 | 31.59 | 31.76 | 283.87 | 0.5439 | -298.0 | -247.0 | |
| 1.85 | -1.00 | 1.09 | -1.00 | 2.65 | 31.57 | 31.73 | 284.64 | 0.5452 | -791.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 2.95 | 31.54 | 31.71 | 285.19 | 0.5460 | -637.0 | -549.9 | |
| 6.08 | -1.00 | 3.58 | -1.00 | 2.50 | 31.49 | 31.66 | 284.40 | 0.5435 | -1039.6 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.14 | 2.97 | 31.19 | 31.36 | 285.39 | 0.5411 | -700.0 | -544.9 | |
| 0.88 | 8.90 | 0.51 | 5.18 | 1.45 | 30.66 | 30.83 | 282.90 | 0.5276 | -923.0 | -637.6 | |
| 0.97 | -11.00 | 0.56 | -11.00 | 1.57 | 30.63 | 30.79 | 283.14 | 0.5276 | -912.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 1.20 | 30.52 | 30.68 | 282.51 | 0.5246 | -725.0 | -621.7 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 2.22 | 29.77 | 29.93 | 284.77 | 0.5177 | -746.0 | -587.6 | |
| 1.41 | 2.99 | 0.81 | 1.73 | 2.63 | 29.54 | 29.70 | 285.67 | 0.5161 | 731.4 | 501.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 4.18 | 28.94 | 29.10 | 288.90 | 0.5148 | -841.0 | -675.4 | |
| 0.00 | 1.32 | 0.00 | 0.76 | 2.60 | 28.85 | 29.01 | 285.99 | 0.5060 | 455.0 | 461.1 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 6.39 | 28.98 | 29.15 | 292.83 | 0.5273 | -325.0 | -308.1 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 2.89 | 28.68 | 28.85 | 286.65 | 0.5050 | 844.0 | 728.9 | |
| 12.07 | 22.28 | 6.88 | 12.69 | 2.98 | 28.03 | 28.20 | 287.21 | 0.4960 | 997.7 | 599.5 | |
| 0.00 | 1.85 | 0.00 | 1.05 | 2.03 | 27.81 | 27.97 | 285.50 | 0.4884 | 876.0 | 735.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 7.50 | 23.87 | 24.04 | 299.33 | 0.4652 | 761.0 | 588.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 8.98 | 21.69 | 21.86 | 304.60 | 0.4486 | 720.0 | 554.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 7.64 | 19.73 | 19.90 | 304.55 | 0.4113 | 824.0 | 685.1 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 7.35 | 15.58 | 15.75 | 310.47 | 0.3554 | 788.0 | 581.4 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 7.35 | 12.09 | 12.25 | 317.69 | 0.3141 | 822.0 | 658.2 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 7.97 | 11.95 | 12.12 | 319.31 | 0.3203 | 913.0 | 728.6 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 5.79 | 11.03 | 11.20 | 316.72 | 0.2830 | 622.0 | 384.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
