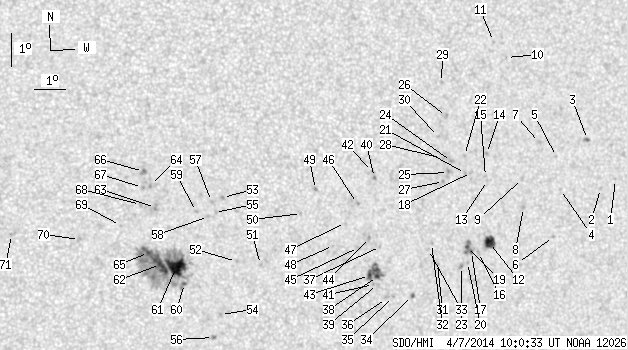

SDO HMI 2014-04-07 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.64 | 283.23 | 26.83 | 150.26 | -11.32 | 19.41 | 20.12 | 253.08 | 0.3531 | -1.6 | -186.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.36 | -8.88 | 30.64 | 31.36 | 263.03 | 0.5200 | 600.0 | 500.9 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -9.17 | 30.14 | 30.85 | 262.40 | 0.5128 | 479.0 | 407.4 | |
| 0.53 | 2.38 | 0.30 | 1.36 | -7.73 | 29.55 | 30.27 | 265.21 | 0.5032 | 864.5 | 758.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -9.28 | 28.74 | 29.45 | 262.01 | 0.4920 | 731.0 | 554.6 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -8.30 | 28.52 | 29.23 | 264.00 | 0.4878 | 671.0 | 483.4 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -10.70 | 28.63 | 29.35 | 259.11 | 0.4924 | 726.0 | 583.1 | |
| 0.00 | 1.94 | 0.00 | 1.09 | -7.91 | 27.90 | 28.61 | 264.77 | 0.4782 | 813.0 | 703.5 | |
| 0.00 | 1.94 | 0.00 | 1.09 | -9.88 | 27.51 | 28.22 | 260.56 | 0.4742 | 672.0 | 552.2 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -9.01 | 27.40 | 28.11 | 262.38 | 0.4714 | 600.0 | 467.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -5.41 | 26.61 | 27.33 | 270.14 | 0.4589 | 587.0 | 507.5 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -4.95 | 26.15 | 26.87 | 271.21 | 0.4522 | 668.0 | 529.3 | |
| 8.81 | 11.63 | 4.91 | 6.48 | -10.99 | 26.44 | 27.15 | 257.93 | 0.4600 | 1015.4 | 685.4 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -9.13 | 26.21 | 26.92 | 261.94 | 0.4533 | 684.0 | 565.1 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -8.32 | 26.11 | 26.82 | 263.72 | 0.4511 | 763.0 | 608.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -9.01 | 26.13 | 26.84 | 262.18 | 0.4520 | 750.0 | 636.4 | |
| 0.00 | 2.38 | 0.00 | 1.32 | -11.31 | 26.09 | 26.81 | 257.13 | 0.4555 | 870.0 | 630.1 | |
| 0.62 | 10.74 | 0.34 | 5.95 | -11.29 | 25.85 | 26.57 | 257.10 | 0.4518 | 1018.1 | 820.1 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -8.92 | 25.64 | 26.36 | 262.33 | 0.4444 | 803.0 | 681.2 | |
| 1.23 | -17.00 | 0.68 | -17.00 | -11.14 | 25.70 | 26.41 | 257.36 | 0.4492 | 1035.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -11.62 | 25.75 | 26.46 | 256.32 | 0.4511 | 610.0 | 512.5 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -8.96 | 25.44 | 26.16 | 262.20 | 0.4414 | 899.0 | 683.2 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -8.42 | 25.37 | 26.08 | 263.42 | 0.4397 | 775.0 | 618.5 | |
| 0.00 | 2.20 | 0.00 | 1.22 | -11.75 | 25.56 | 26.27 | 255.96 | 0.4485 | 907.0 | 778.9 | |
| 0.00 | 1.94 | 0.00 | 1.06 | -8.62 | 24.95 | 25.66 | 262.90 | 0.4332 | 901.0 | 759.7 | |
| 0.00 | 4.40 | 0.00 | 2.42 | -8.95 | 24.87 | 25.58 | 262.11 | 0.4324 | 869.0 | 665.8 | |
| 0.00 | 2.03 | 0.00 | 1.11 | -7.28 | 24.69 | 25.40 | 266.00 | 0.4284 | 687.0 | 609.0 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -9.23 | 24.72 | 25.43 | 261.44 | 0.4305 | 790.0 | 647.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -8.54 | 24.64 | 25.35 | 263.03 | 0.4284 | 769.0 | 785.9 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -6.26 | 24.47 | 25.18 | 268.38 | 0.4249 | 731.0 | 536.4 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -7.89 | 24.46 | 25.17 | 264.55 | 0.4250 | 725.0 | 570.9 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -11.70 | 24.73 | 25.45 | 255.76 | 0.4359 | 714.0 | 594.1 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -11.11 | 24.47 | 25.19 | 257.02 | 0.4304 | 585.0 | 566.9 | |
| 0.00 | 1.85 | 0.00 | 1.01 | -11.29 | 24.39 | 25.10 | 256.56 | 0.4295 | 729.0 | 410.1 | |
| 0.53 | 1.76 | 0.29 | 0.96 | -12.70 | 23.98 | 24.70 | 253.15 | 0.4277 | 990.7 | 809.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -12.76 | 23.35 | 24.06 | 252.68 | 0.4183 | 749.0 | 551.3 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.83 | 23.12 | 23.83 | 252.39 | 0.4151 | 730.0 | 640.2 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.27 | 22.77 | 23.49 | 255.95 | 0.4046 | -677.0 | -511.8 | |
| 1.67 | 17.88 | 0.91 | 9.68 | -12.18 | 22.75 | 23.47 | 253.74 | 0.4072 | -895.1 | -803.7 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -12.42 | 22.78 | 23.49 | 253.18 | 0.4084 | -298.0 | -196.4 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -9.21 | 22.42 | 23.13 | 260.97 | 0.3943 | 977.0 | 842.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.42 | 22.64 | 23.36 | 253.09 | 0.4064 | -631.0 | -400.2 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -9.03 | 22.34 | 23.05 | 261.40 | 0.3928 | 758.0 | 571.5 | |
| 2.20 | -38.00 | 1.19 | -38.00 | -12.16 | 22.49 | 23.20 | 253.65 | 0.4030 | -1105.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -11.01 | 22.39 | 23.10 | 256.41 | 0.3979 | 789.0 | 654.0 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -11.33 | 22.05 | 22.76 | 255.47 | 0.3935 | 943.0 | 705.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.01 | 21.91 | 22.62 | 258.76 | 0.3879 | 924.0 | 856.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -10.60 | 21.56 | 22.27 | 257.12 | 0.3838 | 601.0 | 479.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.30 | 21.22 | 21.93 | 255.13 | 0.3805 | 712.0 | 604.3 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -9.64 | 20.51 | 21.22 | 259.23 | 0.3648 | 923.0 | 777.9 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -10.38 | 20.10 | 20.81 | 257.04 | 0.3602 | 799.0 | 632.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.96 | 18.87 | 19.59 | 251.91 | 0.3465 | -489.0 | -498.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -11.90 | 18.09 | 18.80 | 251.50 | 0.3340 | -792.0 | -638.6 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -9.99 | 17.52 | 18.23 | 256.84 | 0.3178 | -889.0 | -722.7 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -13.51 | 17.69 | 18.40 | 246.53 | 0.3361 | -856.0 | -717.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -10.44 | 17.29 | 18.00 | 255.27 | 0.3156 | -338.0 | -461.6 | |
| 0.00 | 2.03 | 0.00 | 1.07 | -14.21 | 17.52 | 18.23 | 244.40 | 0.3378 | -959.0 | -772.8 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.12 | 17.17 | 17.88 | 256.23 | 0.3127 | -855.0 | -731.9 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.57 | 17.10 | 17.81 | 254.76 | 0.3131 | -785.0 | -596.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -10.43 | 16.71 | 17.42 | 254.92 | 0.3063 | -877.0 | -721.1 | |
| 0.62 | 151.39 | 0.32 | 78.55 | -12.61 | 16.46 | 17.17 | 247.89 | 0.3124 | -838.6 | -529.6 | |
| 21.40 | -60.00 | 11.13 | -60.00 | -12.11 | 16.17 | 16.88 | 249.15 | 0.3052 | -1155.7 | 999999 | |
| 11.18 | -60.00 | 5.80 | -60.00 | -12.06 | 15.65 | 16.37 | 248.77 | 0.2970 | -1190.6 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.64 | -10.35 | 15.40 | 16.11 | 254.21 | 0.2850 | -919.0 | -835.7 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -9.69 | 15.21 | 15.92 | 256.34 | 0.2795 | -834.0 | -738.3 | |
| 1.85 | -60.00 | 0.96 | -60.00 | -11.71 | 15.25 | 15.96 | 249.48 | 0.2888 | -1216.3 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.59 | -9.28 | 14.97 | 15.68 | 257.66 | 0.2742 | -1078.0 | -893.0 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.76 | 14.96 | 15.67 | 255.93 | 0.2756 | -944.0 | -866.1 | |
| 0.00 | 2.38 | 0.00 | 1.23 | -10.27 | 14.92 | 15.63 | 254.08 | 0.2769 | -930.0 | -692.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -10.92 | 14.32 | 15.03 | 251.21 | 0.2702 | -883.0 | -760.8 | |
| 0.00 | 2.03 | 0.00 | 1.04 | -11.38 | 13.05 | 13.76 | 248.06 | 0.2525 | -464.0 | -384.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -11.27 | 10.91 | 11.62 | 245.21 | 0.2186 | -944.0 | -777.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
