SDO HMI 2014-04-07 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.32 | 257.27 | 24.84 | 137.46 | -11.41 | 19.46 | 21.27 | 253.67 | 0.3713 | 16.4 | -175.6 | |
|
previous
or next observation for the same group /

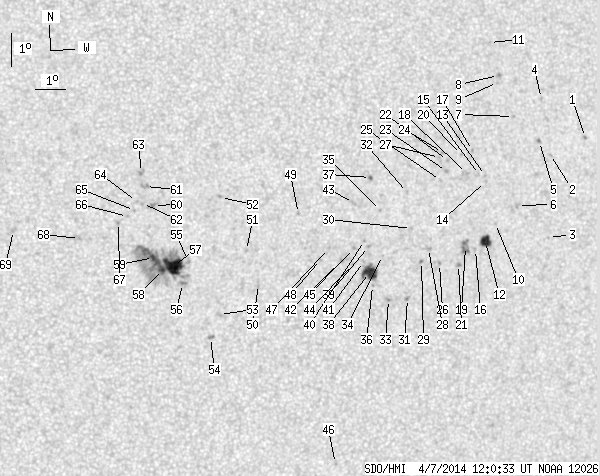

back to the solar disc SDO HMI 2014-04-07 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.66 | -7.66 | 29.69 | 31.50 | 265.37 | 0.5215 | 781.0 | 708.9 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -8.24 | 28.50 | 30.31 | 264.19 | 0.5040 | 732.0 | 597.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -10.73 | 28.67 | 30.48 | 259.28 | 0.5092 | 651.0 | 484.5 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -6.58 | 28.06 | 29.87 | 267.51 | 0.4972 | 650.0 | 452.1 | |
| 0.00 | 1.85 | 0.00 | 1.05 | -7.87 | 28.08 | 29.89 | 264.90 | 0.4976 | 887.0 | 748.0 | |
| 0.00 | 2.47 | 0.00 | 1.40 | -9.82 | 27.48 | 29.29 | 260.86 | 0.4903 | 671.0 | 490.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -7.16 | 27.13 | 28.93 | 266.32 | 0.4830 | 654.0 | 558.8 | |
| 0.00 | 2.11 | 0.00 | 1.19 | -5.96 | 26.53 | 28.34 | 268.86 | 0.4742 | 862.0 | 722.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -6.17 | 26.51 | 28.32 | 268.41 | 0.4738 | 763.0 | 696.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -10.40 | 26.77 | 28.58 | 259.53 | 0.4804 | 746.0 | 563.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -4.99 | 26.18 | 27.99 | 270.96 | 0.4695 | 752.0 | 575.6 | |
| 8.19 | 10.83 | 4.61 | 6.10 | -10.96 | 26.48 | 28.29 | 258.30 | 0.4771 | 998.8 | 671.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -8.98 | 26.30 | 28.10 | 262.44 | 0.4713 | 788.0 | 598.9 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -9.16 | 26.31 | 28.12 | 262.06 | 0.4717 | 470.0 | 452.1 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -8.96 | 26.09 | 27.90 | 262.45 | 0.4681 | 675.0 | 567.2 | |
| 0.00 | 1.58 | 0.00 | 0.89 | -11.22 | 26.16 | 27.97 | 257.67 | 0.4728 | 838.0 | 661.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -8.25 | 25.79 | 27.60 | 263.94 | 0.4630 | 715.0 | 612.5 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -8.95 | 25.64 | 27.45 | 262.40 | 0.4613 | 838.0 | 736.0 | |
| 0.00 | 8.63 | 0.00 | 4.83 | -11.14 | 25.81 | 27.61 | 257.72 | 0.4673 | 882.0 | 867.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -8.39 | 25.43 | 27.23 | 263.60 | 0.4575 | 806.0 | 705.7 | |
| 0.00 | 2.11 | 0.00 | 1.18 | -11.70 | 25.62 | 27.43 | 256.49 | 0.4659 | 810.0 | 747.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -8.59 | 24.96 | 26.77 | 263.10 | 0.4505 | 869.0 | 649.2 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -8.92 | 24.95 | 26.76 | 262.36 | 0.4507 | 839.0 | 794.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -8.36 | 24.78 | 26.59 | 263.59 | 0.4474 | 770.0 | 618.1 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -9.20 | 24.77 | 26.58 | 261.71 | 0.4482 | 728.0 | 525.7 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -11.70 | 24.97 | 26.78 | 256.26 | 0.4560 | 847.0 | 647.9 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -8.52 | 24.69 | 26.49 | 263.24 | 0.4461 | 1011.0 | 765.3 | |
| 0.00 | 2.47 | 0.00 | 1.37 | -11.26 | 24.55 | 26.35 | 257.07 | 0.4486 | 910.0 | 549.8 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -11.67 | 24.35 | 26.16 | 256.11 | 0.4466 | 920.0 | 736.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -10.69 | 23.91 | 25.72 | 258.15 | 0.4376 | 551.0 | 475.0 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -12.80 | 23.99 | 25.80 | 253.44 | 0.4446 | 1027.0 | 847.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -9.61 | 23.69 | 25.50 | 260.55 | 0.4320 | 701.0 | 626.6 | |
| 0.00 | 2.03 | 0.00 | 1.11 | -12.86 | 23.34 | 25.15 | 253.00 | 0.4351 | 942.0 | 729.3 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -11.54 | 23.01 | 24.82 | 255.86 | 0.4259 | -408.0 | -332.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -10.19 | 22.83 | 24.63 | 258.96 | 0.4197 | 701.0 | 539.7 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -12.46 | 22.76 | 24.57 | 253.62 | 0.4250 | -391.0 | -395.3 | |
| 0.44 | 1.41 | 0.24 | 0.77 | -9.22 | 22.42 | 24.22 | 261.19 | 0.4116 | 930.6 | 846.6 | |
| 12.33 | 17.61 | 6.73 | 9.61 | -12.07 | 22.62 | 24.43 | 254.45 | 0.4216 | -961.7 | -677.5 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -11.29 | 22.52 | 24.32 | 256.24 | 0.4176 | -784.0 | -615.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.12 | 22.37 | 24.17 | 256.60 | 0.4148 | 541.0 | 514.2 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -11.75 | 22.39 | 24.20 | 255.10 | 0.4170 | 477.0 | 300.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.37 | 22.05 | 23.86 | 255.86 | 0.4107 | 977.0 | 761.4 | |
| 0.00 | 2.64 | 0.00 | 1.43 | -9.99 | 21.91 | 23.71 | 259.16 | 0.4050 | 840.0 | 703.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.86 | 22.03 | 23.84 | 254.69 | 0.4118 | 727.0 | 557.7 | |
| 0.00 | 1.67 | 0.00 | 0.91 | -11.75 | 21.65 | 23.46 | 254.76 | 0.4057 | 899.0 | 737.1 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -17.91 | 22.16 | 23.97 | 241.20 | 0.4429 | 410.0 | 381.3 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -11.41 | 21.19 | 23.00 | 255.38 | 0.3975 | 563.0 | 528.3 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -11.75 | 20.95 | 22.76 | 254.41 | 0.3949 | -733.0 | -533.3 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -10.39 | 20.12 | 21.92 | 257.48 | 0.3778 | 918.0 | 666.7 | |
| 0.00 | 3.26 | 0.00 | 1.73 | -12.58 | 18.97 | 20.78 | 251.08 | 0.3676 | 561.0 | 315.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -11.57 | 18.50 | 20.31 | 253.47 | 0.3562 | -707.0 | -539.4 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -10.00 | 17.55 | 19.36 | 257.37 | 0.3360 | -805.0 | -651.8 | |
| 0.00 | 2.82 | 0.00 | 1.49 | -13.53 | 17.77 | 19.58 | 247.58 | 0.3540 | -717.0 | -646.9 | |
| 0.00 | 2.64 | 0.00 | 1.40 | -14.23 | 17.54 | 19.34 | 245.48 | 0.3544 | -938.0 | -709.0 | |
| 0.00 | 2.29 | 0.00 | 1.20 | -11.96 | 16.64 | 18.45 | 251.00 | 0.3289 | -470.0 | -430.5 | |
| 0.00 | 3.87 | 0.00 | 2.03 | -12.63 | 16.49 | 18.30 | 248.92 | 0.3299 | -903.0 | -585.6 | |
| 20.60 | 120.19 | 10.78 | 62.70 | -12.10 | 16.17 | 17.97 | 250.19 | 0.3221 | -1143.3 | -613.8 | |
| 2.47 | -57.00 | 1.29 | -57.00 | -12.23 | 15.82 | 17.63 | 249.48 | 0.3174 | -1129.3 | 999999 | |
| 2.29 | -57.00 | 1.19 | -57.00 | -11.88 | 15.51 | 17.32 | 250.26 | 0.3108 | -1178.8 | 999999 | |
| 0.00 | 3.61 | 0.00 | 1.88 | -10.31 | 15.41 | 17.22 | 255.14 | 0.3027 | -967.0 | -802.0 | |
| 0.00 | 3.96 | 0.00 | 2.05 | -9.75 | 15.13 | 16.94 | 256.81 | 0.2962 | -863.0 | -825.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.26 | 15.06 | 16.87 | 255.06 | 0.2968 | -953.0 | -843.5 | |
| 0.00 | 2.73 | 0.00 | 1.41 | -9.33 | 14.98 | 16.79 | 258.12 | 0.2926 | -1011.0 | -904.8 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.21 | 14.87 | 16.67 | 255.10 | 0.2935 | -677.0 | -506.7 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.48 | 14.82 | 16.63 | 254.15 | 0.2938 | -728.0 | -489.0 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.67 | 14.60 | 16.41 | 253.36 | 0.2911 | -899.0 | -704.4 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.86 | 14.33 | 16.14 | 252.48 | 0.2875 | -806.0 | -714.7 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -11.37 | 13.12 | 14.93 | 249.48 | 0.2708 | -927.0 | -755.5 | |
| 0.00 | 2.91 | 0.00 | 1.48 | -11.18 | 11.03 | 12.84 | 247.50 | 0.2370 | -659.0 | -636.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
