SDO HMI 2014-04-07 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.00 | 280.55 | 29.64 | 151.42 | -11.37 | 19.78 | 22.69 | 254.59 | 0.3929 | -142.8 | -113.8 | |
|
previous
or next observation for the same group /

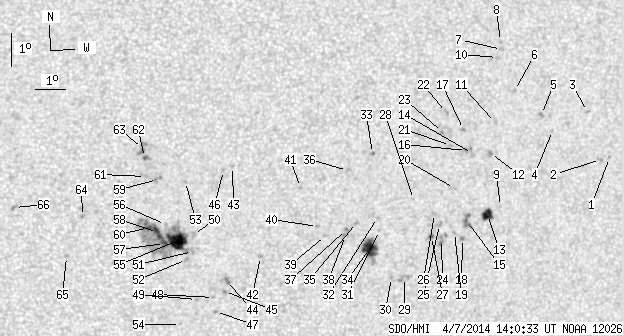

back to the solar disc SDO HMI 2014-04-07 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.63 | -8.95 | 30.69 | 33.60 | 263.06 | 0.5528 | 662.0 | 508.6 | |
| 0.00 | 2.29 | 0.00 | 1.35 | -9.03 | 30.37 | 33.28 | 262.89 | 0.5482 | 706.0 | 611.9 | |
| 0.00 | 1.58 | 0.00 | 0.93 | -7.62 | 29.77 | 32.67 | 265.46 | 0.5389 | 811.0 | 637.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -8.26 | 28.57 | 31.48 | 264.21 | 0.5214 | 693.0 | 579.2 | |
| 0.00 | 2.29 | 0.00 | 1.32 | -7.80 | 28.14 | 31.05 | 265.08 | 0.5149 | 969.0 | 715.8 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -7.13 | 27.14 | 30.05 | 266.38 | 0.4998 | 673.0 | 544.2 | |
| 0.00 | 1.94 | 0.00 | 1.10 | -5.93 | 26.61 | 29.51 | 268.84 | 0.4921 | 843.0 | 636.7 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -5.69 | 26.56 | 29.47 | 269.33 | 0.4915 | 654.0 | 547.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -10.63 | 26.96 | 29.86 | 259.34 | 0.5000 | 614.0 | 448.9 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -6.17 | 26.48 | 29.39 | 268.34 | 0.4901 | 791.0 | 698.0 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -8.12 | 26.55 | 29.46 | 264.35 | 0.4912 | 723.0 | 504.2 | |
| 0.00 | 2.82 | 0.00 | 1.60 | -9.06 | 26.45 | 29.36 | 262.43 | 0.4904 | 834.0 | 738.7 | |
| 7.83 | 10.39 | 4.46 | 5.91 | -10.90 | 26.53 | 29.44 | 258.71 | 0.4941 | 957.8 | 640.0 | |
| 0.00 | 3.70 | 0.00 | 2.09 | -9.09 | 25.83 | 28.74 | 262.28 | 0.4811 | 599.0 | 576.9 | |
| 0.00 | 8.80 | 0.00 | 4.98 | -11.14 | 25.85 | 28.76 | 258.04 | 0.4845 | 974.0 | 816.2 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -9.01 | 25.62 | 28.52 | 262.42 | 0.4777 | 892.0 | 736.9 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -8.39 | 25.46 | 28.37 | 263.71 | 0.4748 | 830.0 | 693.3 | |
| 0.00 | 2.38 | 0.00 | 1.34 | -11.66 | 25.74 | 28.64 | 256.94 | 0.4839 | 785.0 | 717.7 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -11.50 | 25.44 | 28.35 | 257.20 | 0.4791 | 833.0 | 687.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -10.17 | 25.30 | 28.21 | 259.92 | 0.4745 | 676.0 | 540.2 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -8.89 | 25.05 | 27.96 | 262.60 | 0.4690 | 804.0 | 601.4 | |
| 0.00 | 2.02 | 0.00 | 1.13 | -7.91 | 24.84 | 27.75 | 264.69 | 0.4650 | 720.0 | 621.7 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -8.52 | 24.75 | 27.65 | 263.37 | 0.4640 | 977.0 | 792.7 | |
| 0.00 | 7.04 | 0.00 | 3.96 | -11.73 | 25.01 | 27.92 | 256.58 | 0.4733 | 724.0 | 740.4 | |
| 0.00 | 3.43 | 0.00 | 1.92 | -11.28 | 24.90 | 27.80 | 257.49 | 0.4705 | 830.0 | 600.1 | |
| 0.00 | 2.02 | 0.00 | 1.13 | -10.96 | 24.69 | 27.60 | 258.11 | 0.4667 | 795.0 | 553.0 | |
| 0.79 | 2.29 | 0.44 | 1.28 | -11.65 | 24.66 | 27.56 | 256.62 | 0.4678 | 871.1 | 623.8 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -10.57 | 23.93 | 26.84 | 258.73 | 0.4544 | 668.0 | 428.4 | |
| 0.00 | 6.60 | 0.00 | 3.68 | -12.93 | 23.87 | 26.77 | 253.59 | 0.4596 | 713.0 | 697.3 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.95 | 23.42 | 26.33 | 253.35 | 0.4530 | 902.0 | 775.7 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -11.56 | 22.86 | 25.77 | 256.20 | 0.4404 | -655.0 | -473.3 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -11.17 | 22.76 | 25.66 | 257.04 | 0.4378 | -620.0 | -582.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -9.25 | 22.43 | 25.33 | 261.34 | 0.4290 | 912.0 | 860.1 | |
| 14.70 | 26.76 | 8.09 | 14.73 | -12.11 | 22.58 | 25.49 | 254.83 | 0.4377 | -981.0 | -420.3 | |
| 0.00 | 1.94 | 0.00 | 1.06 | -11.35 | 22.06 | 24.97 | 256.36 | 0.4277 | 670.0 | 628.5 | |
| 0.00 | 2.02 | 0.00 | 1.10 | -9.80 | 21.63 | 24.54 | 259.86 | 0.4175 | 685.0 | 592.3 | |
| 0.00 | 1.76 | 0.00 | 0.96 | -11.57 | 21.75 | 24.65 | 255.71 | 0.4235 | 942.0 | 757.8 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -11.76 | 21.73 | 24.64 | 255.28 | 0.4238 | 752.0 | 742.7 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -11.78 | 21.06 | 23.97 | 254.91 | 0.4136 | -546.0 | -468.5 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -11.53 | 20.77 | 23.68 | 255.40 | 0.4083 | -765.0 | -510.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -10.38 | 20.11 | 23.01 | 257.96 | 0.3949 | 867.0 | 734.2 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -12.50 | 18.96 | 21.86 | 252.00 | 0.3839 | 820.0 | 593.6 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -9.83 | 17.83 | 20.74 | 258.50 | 0.3576 | -698.0 | -520.6 | |
| 0.00 | 4.14 | 0.00 | 2.21 | -13.27 | 17.90 | 20.81 | 249.29 | 0.3712 | -918.0 | -758.0 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.60 | 17.86 | 20.77 | 248.40 | 0.3723 | -840.0 | -743.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -9.96 | 17.55 | 20.46 | 258.01 | 0.3534 | -786.0 | -627.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -14.22 | 17.62 | 20.53 | 246.63 | 0.3720 | -816.0 | -697.8 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -13.80 | 17.52 | 20.43 | 247.62 | 0.3681 | -758.0 | -621.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.88 | 16.97 | 19.87 | 246.92 | 0.3603 | -752.0 | -642.3 | |
| 0.00 | 2.99 | 0.00 | 1.58 | -11.92 | 16.71 | 19.62 | 252.02 | 0.3468 | -478.0 | -439.9 | |
| 0.00 | 2.99 | 0.00 | 1.58 | -12.43 | 16.72 | 19.62 | 250.60 | 0.3492 | -674.0 | -439.4 | |
| 0.00 | 1.94 | 0.00 | 1.02 | -12.68 | 16.54 | 19.45 | 249.77 | 0.3477 | -889.0 | -649.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.33 | 16.34 | 19.25 | 256.34 | 0.3352 | -786.0 | -690.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -14.65 | 16.51 | 19.42 | 244.46 | 0.3580 | -754.0 | -576.5 | |
| 20.86 | 113.56 | 10.98 | 59.61 | -12.12 | 16.20 | 19.11 | 251.08 | 0.3399 | -1129.9 | -553.3 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -11.65 | 15.78 | 18.69 | 252.11 | 0.3312 | -272.0 | -281.8 | |
| 3.17 | -55.00 | 1.66 | -55.00 | -12.22 | 15.79 | 18.70 | 250.45 | 0.3339 | -1115.5 | 999999 | |
| 5.72 | -55.00 | 3.00 | -55.00 | -11.90 | 15.54 | 18.45 | 251.18 | 0.3285 | -1181.8 | 999999 | |
| 0.00 | 4.31 | 0.00 | 2.25 | -10.30 | 15.44 | 18.34 | 255.90 | 0.3207 | -934.0 | -765.9 | |
| 1.58 | -55.00 | 0.83 | -55.00 | -11.76 | 15.24 | 18.15 | 251.35 | 0.3232 | -1141.2 | 999999 | |
| 0.00 | 3.61 | 0.00 | 1.88 | -10.23 | 15.05 | 17.95 | 255.90 | 0.3142 | -910.0 | -694.4 | |
| 0.35 | 3.26 | 0.18 | 1.70 | -9.66 | 14.98 | 17.89 | 257.66 | 0.3114 | -1070.0 | -846.6 | |
| 0.00 | 6.87 | 0.00 | 3.58 | -9.39 | 14.91 | 17.81 | 258.48 | 0.3094 | -993.0 | -844.6 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -11.49 | 13.11 | 16.01 | 250.25 | 0.2885 | -928.0 | -763.2 | |
| 0.00 | 1.76 | 0.00 | 0.91 | -12.71 | 12.67 | 15.58 | 245.75 | 0.2886 | -964.0 | -663.5 | |
| 0.00 | 2.64 | 0.00 | 1.35 | -11.27 | 10.94 | 13.85 | 248.53 | 0.2534 | -988.0 | -741.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
