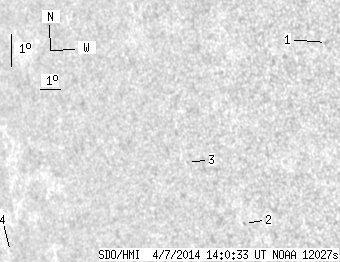

SDO HMI 2014-04-07 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.78 | 0.00 | 2.77 | -14.07 | 309.71 | -47.38 | 103.43 | 0.7334 | 98.2 | 225.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.25 | -11.66 | 314.04 | -43.05 | 100.53 | 0.6824 | 110.0 | 196.9 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -16.82 | 309.04 | -48.05 | 107.11 | 0.7472 | 442.0 | 436.4 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -14.78 | 306.99 | -50.11 | 104.16 | 0.7674 | 200.0 | 258.1 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -16.61 | 296.44 | -60.65 | 105.64 | 0.8694 | -359.0 | -280.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
