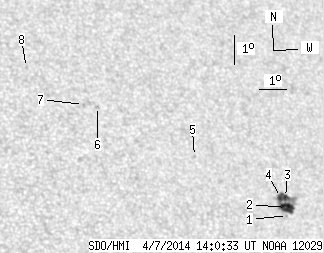

SDO HMI 2014-04-07 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.90 | 34.23 | 11.04 | 22.27 | 17.95 | 29.77 | 32.68 | 307.45 | 0.6493 | -476.3 | -136.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.46 | 17.23 | 30.54 | 33.44 | 305.82 | 0.6515 | -759.0 | -601.8 | |
| 10.12 | 29.31 | 6.61 | 19.16 | 17.49 | 30.55 | 33.46 | 306.15 | 0.6535 | -902.5 | -321.8 | |
| 3.61 | -2.00 | 2.36 | -2.00 | 17.82 | 30.59 | 33.49 | 306.54 | 0.6562 | -715.0 | 999999 | |
| 3.17 | -2.00 | 2.07 | -2.00 | 17.81 | 30.39 | 33.30 | 306.68 | 0.6541 | -853.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 18.98 | 27.43 | 30.34 | 310.70 | 0.6323 | 752.0 | 657.9 | |
| 0.00 | 1.67 | 0.00 | 1.05 | 20.47 | 24.20 | 27.10 | 315.68 | 0.6132 | 643.0 | 480.5 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 20.51 | 23.70 | 26.61 | 316.25 | 0.6088 | 638.0 | 525.2 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 21.67 | 21.88 | 24.79 | 319.58 | 0.6032 | 505.0 | 435.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
