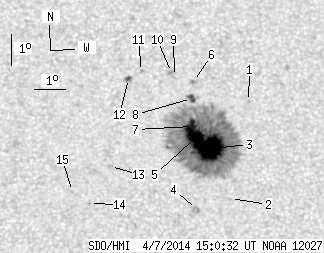

SDO HMI 2014-04-07 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.37 | 429.65 | 42.41 | 235.49 | 12.81 | 13.41 | 16.87 | 318.55 | 0.4293 | -1049.6 | -364.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 0.98 | 14.09 | 15.03 | 18.49 | 317.92 | 0.4609 | 666.0 | 495.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 10.99 | 14.22 | 17.68 | 314.19 | 0.4175 | -734.0 | -551.2 | |
| 43.22 | 407.38 | 23.68 | 223.31 | 12.55 | 13.68 | 17.14 | 317.69 | 0.4291 | -1556.9 | -411.0 | |
| 0.00 | 4.40 | 0.00 | 2.38 | 10.61 | 13.11 | 16.57 | 315.39 | 0.4008 | 593.0 | 672.5 | |
| 20.33 | -3.00 | 11.14 | -3.00 | 12.89 | 13.22 | 16.68 | 318.99 | 0.4282 | -1338.3 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.32 | 14.67 | 13.29 | 16.75 | 321.55 | 0.4502 | 835.0 | 595.6 | |
| 9.42 | -3.00 | 5.17 | -3.00 | 13.23 | 13.12 | 16.58 | 319.71 | 0.4313 | -1087.3 | 999999 | |
| 3.08 | -3.00 | 1.70 | -3.00 | 14.13 | 13.19 | 16.64 | 320.94 | 0.4426 | -817.6 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 14.82 | 12.69 | 16.15 | 322.77 | 0.4462 | 632.0 | 502.4 | |
| 0.00 | 2.73 | 0.00 | 1.51 | 14.94 | 12.60 | 16.06 | 323.09 | 0.4469 | 895.0 | 732.1 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 14.95 | 11.64 | 15.09 | 324.78 | 0.4381 | -557.0 | -385.3 | |
| 1.32 | 3.43 | 0.72 | 1.88 | 14.71 | 11.20 | 14.66 | 325.24 | 0.4311 | -945.8 | -736.8 | |
| 0.00 | 2.02 | 0.00 | 1.09 | 11.89 | 10.45 | 13.91 | 322.50 | 0.3882 | 615.0 | 510.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 10.71 | 9.73 | 13.19 | 322.03 | 0.3660 | 767.0 | 627.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 11.07 | 9.22 | 12.67 | 323.74 | 0.3657 | 744.0 | 617.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
