SDO HMI 2014-04-07 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.96 | 258.90 | 33.82 | 141.13 | -11.41 | 20.01 | 24.01 | 255.31 | 0.4132 | -168.6 | -124.0 | |
|
previous
or next observation for the same group /

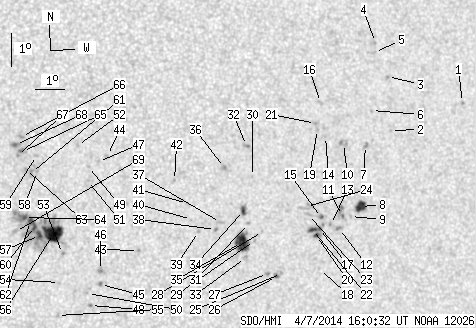

back to the solar disc SDO HMI 2014-04-07 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.73 | -7.55 | 29.89 | 33.89 | 265.60 | 0.5566 | 569.0 | 526.1 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -8.54 | 27.38 | 31.39 | 263.67 | 0.5203 | 581.0 | 497.4 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -6.92 | 27.14 | 31.15 | 266.79 | 0.5164 | 740.0 | 631.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -5.93 | 26.65 | 30.66 | 268.76 | 0.5094 | 790.0 | 649.4 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -6.23 | 26.64 | 30.64 | 268.16 | 0.5090 | 811.0 | 684.6 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -7.97 | 26.66 | 30.67 | 264.73 | 0.5093 | 733.0 | 608.2 | |
| 0.00 | 2.73 | 0.00 | 1.57 | -9.03 | 26.54 | 30.55 | 262.63 | 0.5081 | 760.0 | 688.6 | |
| 7.22 | 9.59 | 4.15 | 5.52 | -10.87 | 26.55 | 30.56 | 259.02 | 0.5106 | 940.7 | 642.6 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -11.19 | 26.23 | 30.24 | 258.32 | 0.5065 | 558.0 | 491.8 | |
| 0.00 | 5.19 | 0.00 | 2.96 | -9.01 | 25.76 | 29.77 | 262.58 | 0.4965 | 609.0 | 682.0 | |
| 0.35 | 7.04 | 0.20 | 4.03 | -11.17 | 25.94 | 29.95 | 258.28 | 0.5023 | 925.5 | 796.3 | |
| 0.00 | 2.82 | 0.00 | 1.61 | -11.57 | 25.88 | 29.89 | 257.48 | 0.5022 | 808.0 | 704.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -11.47 | 25.55 | 29.56 | 257.60 | 0.4971 | 863.0 | 734.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -8.84 | 25.12 | 29.13 | 262.86 | 0.4867 | 758.0 | 614.7 | |
| 0.62 | 2.38 | 0.35 | 1.35 | -11.27 | 25.22 | 29.22 | 257.90 | 0.4917 | 991.1 | 834.0 | |
| 0.00 | 2.64 | 0.00 | 1.49 | -7.83 | 24.86 | 28.87 | 264.94 | 0.4822 | 662.0 | 536.4 | |
| 0.97 | 12.67 | 0.55 | 7.20 | -11.61 | 25.18 | 29.19 | 257.22 | 0.4919 | 957.1 | 747.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -12.84 | 25.33 | 29.34 | 254.79 | 0.4971 | 623.0 | 544.0 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -8.64 | 24.82 | 28.83 | 263.24 | 0.4821 | 749.0 | 538.1 | |
| 1.32 | -17.00 | 0.75 | -17.00 | -11.82 | 25.10 | 29.11 | 256.76 | 0.4912 | 917.7 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -8.46 | 24.74 | 28.75 | 263.60 | 0.4807 | 1010.0 | 817.3 | |
| 2.46 | -17.00 | 1.40 | -17.00 | -11.65 | 24.94 | 28.95 | 257.06 | 0.4884 | 1059.0 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.74 | -11.20 | 24.75 | 28.76 | 257.92 | 0.4847 | 526.0 | 367.5 | |
| 0.00 | 6.95 | 0.00 | 3.93 | -10.97 | 24.66 | 28.67 | 258.38 | 0.4828 | 147.0 | 301.7 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -13.03 | 24.02 | 28.03 | 253.92 | 0.4784 | 841.0 | 676.5 | |
| 0.62 | 2.38 | 0.35 | 1.34 | -13.12 | 23.86 | 27.87 | 253.66 | 0.4763 | 983.1 | 749.8 | |
| 0.00 | 1.85 | 0.00 | 1.04 | -13.05 | 23.53 | 27.54 | 253.68 | 0.4713 | 950.0 | 762.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -11.79 | 23.22 | 27.23 | 256.21 | 0.4631 | -422.0 | -278.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -12.08 | 22.97 | 26.98 | 255.51 | 0.4601 | -309.0 | -405.7 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -10.16 | 22.72 | 26.72 | 259.62 | 0.4519 | 713.0 | 548.5 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -11.57 | 22.71 | 26.72 | 256.51 | 0.4549 | -718.0 | -632.4 | |
| 0.00 | 2.55 | 0.00 | 1.41 | -9.24 | 22.43 | 26.44 | 261.61 | 0.4461 | 957.0 | 826.4 | |
| 0.00 | 2.02 | 0.00 | 1.13 | -12.60 | 22.72 | 26.73 | 254.28 | 0.4579 | -311.0 | -212.1 | |
| 2.38 | 4.31 | 1.32 | 2.39 | -11.19 | 22.51 | 26.51 | 257.27 | 0.4508 | -865.2 | -712.2 | |
| 14.87 | 20.60 | 8.26 | 11.44 | -12.16 | 22.54 | 26.54 | 255.17 | 0.4538 | -965.7 | -563.4 | |
| 0.00 | 2.46 | 0.00 | 1.36 | -9.93 | 21.74 | 25.75 | 259.88 | 0.4366 | 1015.0 | 801.6 | |
| 0.00 | 3.08 | 0.00 | 1.70 | -11.59 | 21.76 | 25.77 | 256.13 | 0.4405 | 905.0 | 632.8 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -11.81 | 21.61 | 25.62 | 255.58 | 0.4388 | 951.0 | 776.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -11.89 | 21.04 | 25.05 | 255.15 | 0.4304 | -688.0 | -548.4 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -11.54 | 20.77 | 24.78 | 255.84 | 0.4253 | -577.0 | -510.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -11.06 | 20.59 | 24.60 | 256.88 | 0.4213 | 777.0 | 625.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -10.39 | 20.10 | 24.11 | 258.31 | 0.4120 | 839.0 | 707.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -12.55 | 19.09 | 23.09 | 252.63 | 0.4029 | 848.0 | 727.0 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -9.73 | 17.83 | 21.84 | 259.19 | 0.3749 | -674.0 | -555.7 | |
| 0.00 | 2.02 | 0.00 | 1.09 | -13.62 | 17.92 | 21.93 | 249.25 | 0.3898 | -837.0 | -718.3 | |
| 0.00 | 4.22 | 0.00 | 2.27 | -13.20 | 17.88 | 21.89 | 250.26 | 0.3873 | -887.0 | -726.4 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.92 | 17.55 | 21.56 | 258.58 | 0.3709 | -782.0 | -651.0 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -14.27 | 17.65 | 21.66 | 247.45 | 0.3890 | -869.0 | -710.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.08 | 17.23 | 21.24 | 258.01 | 0.3663 | -866.0 | -668.4 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -13.91 | 17.52 | 21.52 | 248.23 | 0.3851 | -625.0 | -509.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.51 | 17.23 | 21.24 | 256.87 | 0.3673 | -779.0 | -703.2 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -9.47 | 16.84 | 20.84 | 259.55 | 0.3584 | -785.0 | -612.6 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -12.73 | 16.58 | 20.59 | 250.53 | 0.3654 | -647.0 | -601.2 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -13.61 | 16.56 | 20.57 | 248.22 | 0.3693 | -619.0 | -493.6 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -14.61 | 16.59 | 20.60 | 245.69 | 0.3751 | -720.0 | -598.6 | |
| 21.74 | 100.16 | 11.52 | 52.95 | -12.14 | 16.24 | 20.25 | 251.87 | 0.3576 | -1085.7 | -590.9 | |
| 3.08 | -56.00 | 1.63 | -56.00 | -12.22 | 15.79 | 19.80 | 251.33 | 0.3509 | -1086.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -10.29 | 15.59 | 19.60 | 256.65 | 0.3407 | -728.0 | -547.7 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -9.81 | 15.53 | 19.53 | 258.01 | 0.3383 | -691.0 | -477.8 | |
| 2.29 | -56.00 | 1.21 | -56.00 | -11.95 | 15.61 | 19.61 | 251.93 | 0.3469 | -1144.1 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.62 | -10.33 | 15.40 | 19.40 | 256.44 | 0.3377 | -951.0 | -778.0 | |
| 2.46 | -56.00 | 1.30 | -56.00 | -11.80 | 15.46 | 19.47 | 252.24 | 0.3441 | -1147.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.25 | 15.20 | 19.21 | 256.57 | 0.3343 | -920.0 | -804.6 | |
| 1.58 | -56.00 | 0.83 | -56.00 | -11.69 | 15.26 | 19.27 | 252.42 | 0.3405 | -1121.7 | 999999 | |
| 0.00 | 3.26 | 0.00 | 1.71 | -9.71 | 15.07 | 19.08 | 258.11 | 0.3307 | -1070.0 | -909.9 | |
| 0.00 | 1.94 | 0.00 | 1.02 | -9.26 | 15.01 | 19.02 | 259.43 | 0.3286 | -914.0 | -808.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -9.83 | 14.91 | 18.92 | 257.65 | 0.3285 | -975.0 | -783.2 | |
| 0.00 | 4.84 | 0.00 | 2.54 | -9.51 | 14.83 | 18.84 | 258.61 | 0.3263 | -1150.0 | -939.8 | |
| 0.00 | 2.55 | 0.00 | 1.34 | -12.12 | 15.00 | 19.01 | 250.99 | 0.3383 | -232.0 | -168.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
