SDO HMI 2014-04-07 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.58 | 35.01 | 10.32 | 23.10 | 17.82 | 29.92 | 33.93 | 306.25 | 0.6613 | -394.1 | -69.7 | |
|
previous
or next observation for the same group /

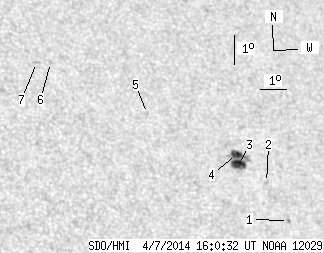

back to the solar disc SDO HMI 2014-04-07 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.82 | 15.77 | 32.07 | 36.07 | 301.97 | 0.6703 | 485.0 | 416.6 | |
| 0.00 | 1.58 | 0.00 | 1.06 | 16.96 | 31.47 | 35.48 | 303.94 | 0.6714 | 263.0 | 167.9 | |
| 9.42 | 27.81 | 6.23 | 18.43 | 17.49 | 30.51 | 34.52 | 305.32 | 0.6647 | -926.7 | -350.7 | |
| 6.16 | -3.00 | 4.09 | -3.00 | 17.82 | 30.51 | 34.51 | 305.74 | 0.6669 | -713.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.80 | 18.97 | 27.40 | 31.40 | 309.74 | 0.6432 | 684.0 | 559.2 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 20.49 | 24.14 | 28.15 | 314.65 | 0.6234 | 602.0 | 474.1 | |
| 0.00 | 2.02 | 0.00 | 1.27 | 20.46 | 23.63 | 27.64 | 315.13 | 0.6182 | 619.0 | 508.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
