SDO HMI 2014-04-07 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.37 | 0.00 | 9.91 | -17.32 | 351.30 | -4.14 | 157.52 | 0.2393 | -655.4 | -568.7 | |
|
previous
or next observation for the same group /

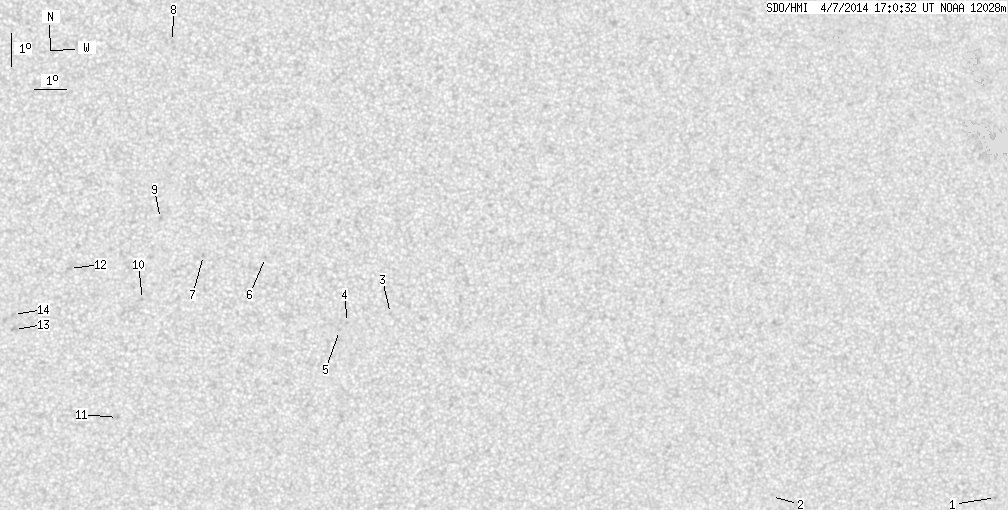

back to the solar disc SDO HMI 2014-04-07 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.59 | -22.96 | 17.20 | 21.76 | 229.05 | 0.4538 | 776.0 | 663.6 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -23.16 | 9.54 | 14.10 | 217.17 | 0.3724 | 443.0 | 549.6 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -17.65 | 356.92 | 1.48 | 187.04 | 0.2018 | -901.0 | -696.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -17.93 | 355.57 | 0.13 | 180.59 | 0.2050 | -861.0 | -732.1 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -18.17 | 355.31 | -0.13 | 179.43 | 0.2092 | -841.0 | -641.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -15.93 | 353.01 | -2.43 | 166.51 | 0.1756 | -868.0 | -636.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -15.86 | 351.07 | -4.37 | 156.56 | 0.1849 | -874.0 | -729.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.39 | 350.25 | -5.19 | 122.47 | 0.1064 | -828.0 | -671.2 | |
| 0.00 | 2.29 | 0.00 | 1.15 | -14.72 | 349.76 | -5.68 | 147.37 | 0.1783 | -886.0 | -613.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -17.18 | 349.12 | -6.32 | 151.27 | 0.2198 | -789.0 | -627.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -20.80 | 348.17 | -7.27 | 154.98 | 0.2812 | -848.0 | -695.3 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -16.20 | 346.85 | -8.59 | 140.77 | 0.2277 | -872.0 | -677.8 | |
| 0.00 | 3.52 | 0.00 | 1.81 | -18.03 | 345.01 | -10.43 | 140.31 | 0.2709 | -914.0 | -708.1 | |
| 0.00 | 1.85 | 0.00 | 0.95 | -17.57 | 345.00 | -10.44 | 139.13 | 0.2652 | -913.0 | -663.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
