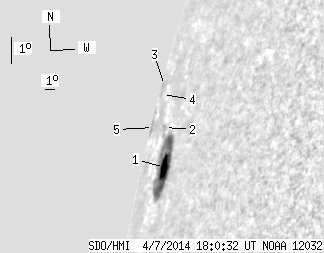

SDO HMI 2014-04-07 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.62 | 85.10 | 36.40 | 357.73 | 12.27 | 273.67 | -81.22 | 76.75 | 0.9916 | -41.3 | 56.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.62 | 69.79 | 36.40 | 227.11 | 11.45 | 275.56 | -79.33 | 77.32 | 0.9880 | -69.9 | -12.1 | |
| 0.00 | 2.46 | 0.00 | 9.84 | 12.89 | 273.70 | -81.19 | 76.13 | 0.9928 | 47.0 | 104.7 | |
| 0.00 | 4.58 | 0.00 | 36.99 | 14.58 | 270.27 | -84.62 | 74.90 | 0.9983 | 246.0 | 202.5 | |
| 0.00 | 1.32 | 0.00 | 11.02 | 14.28 | 270.43 | -84.46 | 75.18 | 0.9981 | 245.0 | 240.2 | |
| 0.00 | 6.95 | 0.00 | 72.77 | 13.29 | 269.98 | -84.91 | 76.21 | 0.9984 | 337.0 | 127.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
