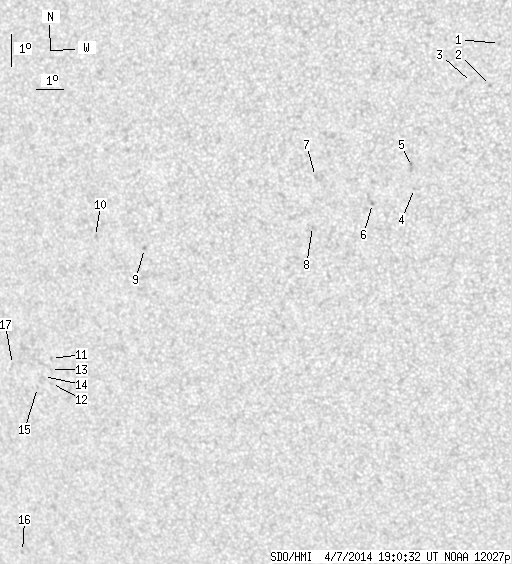

SDO HMI 2014-04-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.83 | 0.00 | 12.95 | -19.51 | 323.76 | -30.58 | 117.10 | 0.5344 | 42.8 | 60.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.46 | 334.29 | -20.05 | 111.83 | 0.3607 | 673.0 | 501.3 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -14.72 | 333.87 | -20.46 | 114.70 | 0.3738 | 840.0 | 596.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.61 | 333.25 | -21.08 | 113.86 | 0.3823 | 709.0 | 562.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -17.75 | 330.95 | -23.39 | 118.98 | 0.4340 | 688.0 | 580.0 | |
| 0.00 | 3.26 | 0.00 | 1.79 | -17.08 | 330.94 | -23.40 | 117.53 | 0.4299 | 689.0 | 641.5 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -18.15 | 329.44 | -24.90 | 118.50 | 0.4572 | 886.0 | 630.9 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -17.23 | 327.58 | -26.75 | 115.29 | 0.4774 | 577.0 | 534.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -18.75 | 327.22 | -27.11 | 117.98 | 0.4907 | 689.0 | 570.5 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -19.10 | 320.97 | -33.36 | 114.86 | 0.5749 | -810.0 | -632.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -18.62 | 319.20 | -35.14 | 113.26 | 0.5959 | -777.0 | -596.6 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -22.26 | 316.43 | -37.91 | 117.69 | 0.6444 | -622.0 | -512.0 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -23.04 | 316.17 | -38.16 | 118.71 | 0.6507 | -692.0 | -647.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -22.60 | 316.28 | -38.06 | 118.12 | 0.6476 | -669.0 | -592.5 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -22.80 | 315.92 | -38.42 | 118.25 | 0.6526 | -185.0 | -230.9 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -23.12 | 315.56 | -38.78 | 118.57 | 0.6581 | -491.0 | -358.0 | |
| 0.00 | 1.32 | 0.00 | 0.93 | -28.23 | 312.81 | -41.53 | 124.38 | 0.7100 | -280.0 | -332.5 | |
| 0.00 | 1.32 | 0.00 | 0.87 | -22.34 | 314.77 | -39.56 | 117.11 | 0.6641 | -497.0 | -438.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
