SDO HMI 2014-04-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.05 | 33.27 | 10.18 | 22.44 | 17.55 | 30.19 | 35.85 | 304.46 | 0.6797 | -360.5 | -202.6 | |
|
previous
or next observation for the same group /

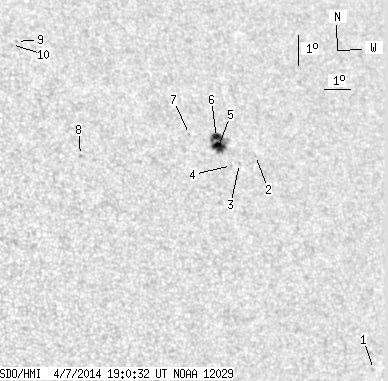

back to the solar disc SDO HMI 2014-04-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.43 | 10.75 | 35.27 | 40.93 | 292.38 | 0.6984 | 621.0 | 556.7 | |
| 0.00 | 1.14 | 0.00 | 0.79 | 17.33 | 31.90 | 37.56 | 302.95 | 0.6958 | 547.0 | 461.5 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 17.02 | 31.19 | 36.86 | 303.04 | 0.6865 | -293.0 | -316.8 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 16.93 | 30.86 | 36.52 | 303.16 | 0.6824 | -583.0 | -409.1 | |
| 8.89 | 26.32 | 6.01 | 17.80 | 17.53 | 30.49 | 36.15 | 304.18 | 0.6823 | -872.9 | -419.5 | |
| 6.16 | -5.00 | 4.17 | -5.00 | 17.82 | 30.48 | 36.14 | 304.55 | 0.6841 | -697.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 17.85 | 29.43 | 35.10 | 305.35 | 0.6734 | -517.0 | -407.4 | |
| 0.00 | 1.23 | 0.00 | 0.78 | 16.91 | 25.15 | 30.81 | 307.59 | 0.6207 | 645.0 | 488.3 | |
| 0.00 | 0.79 | 0.00 | 0.51 | 20.58 | 23.53 | 29.19 | 313.74 | 0.6344 | 580.0 | 534.7 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 20.46 | 23.32 | 28.99 | 313.81 | 0.6314 | 599.0 | 569.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
