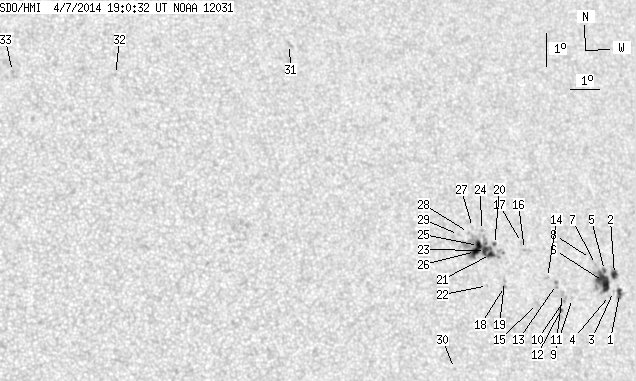

SDO HMI 2014-04-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.98 | 126.74 | 24.30 | 77.93 | 2.77 | 29.47 | 35.14 | 283.51 | 0.5930 | -141.5 | -45.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.34 | 6.34 | 2.14 | 4.06 | 1.99 | 32.93 | 38.59 | 280.74 | 0.6368 | -611.2 | -402.7 | |
| 3.70 | 6.69 | 2.37 | 4.28 | 2.56 | 32.75 | 38.42 | 281.67 | 0.6362 | -589.6 | -308.1 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 2.04 | 32.70 | 38.36 | 280.89 | 0.6339 | -553.0 | -507.4 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 1.90 | 32.54 | 38.21 | 280.74 | 0.6314 | -667.0 | -611.7 | |
| 0.88 | 26.49 | 0.56 | 16.84 | 2.65 | 32.37 | 38.04 | 281.95 | 0.6315 | -638.2 | -667.5 | |
| 14.52 | -5.00 | 9.24 | -5.00 | 2.31 | 32.32 | 37.99 | 281.45 | 0.6298 | -923.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 2.81 | 32.04 | 37.70 | 282.33 | 0.6275 | -593.0 | -511.9 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 2.98 | 31.85 | 37.52 | 282.66 | 0.6256 | -573.0 | -475.9 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 1.72 | 31.13 | 36.80 | 280.93 | 0.6120 | -523.0 | -412.0 | |
| 0.00 | 2.29 | 0.00 | 1.42 | 1.67 | 30.83 | 36.50 | 280.96 | 0.6078 | -820.0 | -677.2 | |
| 0.00 | 2.02 | 0.00 | 1.26 | 1.85 | 30.76 | 36.43 | 281.27 | 0.6074 | -698.0 | -715.7 | |
| 0.70 | 2.99 | 0.44 | 1.86 | 1.33 | 30.67 | 36.34 | 280.46 | 0.6047 | -768.0 | -680.3 | |
| 0.00 | 3.26 | 0.00 | 2.02 | 2.11 | 30.54 | 36.21 | 281.77 | 0.6052 | -636.0 | -629.0 | |
| 0.00 | 1.50 | 0.00 | 0.93 | 2.30 | 30.21 | 35.88 | 282.21 | 0.6014 | -845.0 | -703.5 | |
| 0.00 | 2.46 | 0.00 | 1.51 | 1.49 | 29.82 | 35.49 | 281.02 | 0.5935 | 583.0 | 397.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 3.10 | 29.39 | 35.06 | 283.85 | 0.5929 | 432.0 | 270.8 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 3.31 | 29.29 | 34.96 | 284.23 | 0.5923 | 655.0 | 421.9 | |
| 0.00 | 1.50 | 0.00 | 0.91 | 1.93 | 28.62 | 34.29 | 282.22 | 0.5783 | 686.0 | 515.9 | |
| 0.00 | 1.32 | 0.00 | 0.80 | 2.08 | 28.63 | 34.29 | 282.48 | 0.5788 | 530.0 | 457.3 | |
| 0.70 | 2.02 | 0.43 | 1.23 | 3.18 | 28.30 | 33.96 | 284.47 | 0.5783 | 563.0 | 429.8 | |
| 3.17 | 49.38 | 1.92 | 29.73 | 2.87 | 28.14 | 33.81 | 284.02 | 0.5750 | 883.8 | 359.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 1.92 | 28.01 | 33.67 | 282.47 | 0.5697 | 667.0 | 458.3 | |
| 3.70 | -21.00 | 2.23 | -21.00 | 2.98 | 27.97 | 33.63 | 284.29 | 0.5729 | 988.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 3.58 | 27.85 | 33.51 | 285.36 | 0.5736 | -763.0 | -577.0 | |
| 3.61 | -21.00 | 2.17 | -21.00 | 3.12 | 27.72 | 33.38 | 284.64 | 0.5700 | 960.6 | 999999 | |
| 4.66 | -21.00 | 2.80 | -21.00 | 2.93 | 27.60 | 33.27 | 284.37 | 0.5677 | 785.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 3.66 | 27.52 | 33.19 | 285.64 | 0.5695 | -674.0 | -476.9 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 3.49 | 27.37 | 33.04 | 285.44 | 0.5667 | -561.0 | -529.5 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 3.41 | 27.01 | 32.68 | 285.48 | 0.5614 | -691.0 | -557.3 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -0.66 | 26.80 | 32.46 | 278.38 | 0.5446 | -419.0 | -333.5 | |
| 0.00 | 2.82 | 0.00 | 1.63 | 8.95 | 21.47 | 27.13 | 298.92 | 0.5167 | 675.0 | 570.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 7.76 | 15.59 | 21.26 | 302.99 | 0.4301 | 705.0 | 481.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 7.73 | 12.28 | 17.94 | 307.57 | 0.3868 | 816.0 | 583.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
