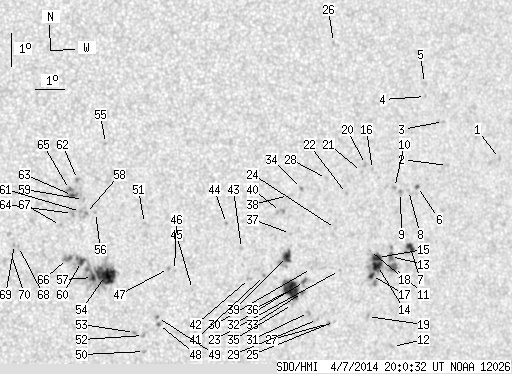

SDO HMI 2014-04-07 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.53 | 266.23 | 45.28 | 148.75 | -11.36 | 20.82 | 27.03 | 256.68 | 0.4587 | -109.7 | -74.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.13 | -7.92 | 29.60 | 35.82 | 264.98 | 0.5840 | 548.0 | 475.9 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -8.24 | 27.71 | 33.92 | 264.36 | 0.5571 | 532.0 | 454.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -6.93 | 27.44 | 33.66 | 266.73 | 0.5533 | 611.0 | 511.1 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -6.22 | 26.74 | 32.96 | 268.06 | 0.5432 | 704.0 | 557.2 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -5.84 | 26.68 | 32.90 | 268.77 | 0.5425 | 714.0 | 567.2 | |
| 0.70 | 2.29 | 0.41 | 1.35 | -8.93 | 26.68 | 32.90 | 263.04 | 0.5427 | 693.2 | 525.4 | |
| 4.05 | 7.75 | 2.39 | 4.56 | -10.78 | 26.63 | 32.85 | 259.64 | 0.5438 | 812.3 | 733.6 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -9.07 | 26.37 | 32.59 | 262.76 | 0.5382 | 707.0 | 608.6 | |
| 0.00 | 2.55 | 0.00 | 1.49 | -9.15 | 26.09 | 32.31 | 262.59 | 0.5342 | 818.0 | 723.2 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -9.01 | 25.86 | 32.08 | 262.83 | 0.5307 | 889.0 | 750.1 | |
| 4.14 | 48.41 | 2.43 | 28.24 | -11.41 | 26.09 | 32.31 | 258.36 | 0.5370 | 766.0 | 611.0 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -13.79 | 26.39 | 32.61 | 254.08 | 0.5464 | 711.0 | 614.5 | |
| 2.02 | -11.00 | 1.18 | -11.00 | -11.09 | 25.94 | 32.16 | 258.94 | 0.5344 | 827.2 | 999999 | |
| 7.57 | -11.00 | 4.41 | -11.00 | -11.38 | 25.51 | 31.73 | 258.29 | 0.5286 | 1021.5 | 999999 | |
| 5.37 | -11.00 | 3.13 | -11.00 | -11.14 | 25.48 | 31.70 | 258.74 | 0.5277 | 904.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -8.51 | 25.03 | 31.24 | 263.71 | 0.5181 | 851.0 | 713.8 | |
| 2.11 | -11.00 | 1.23 | -11.00 | -11.70 | 25.33 | 31.55 | 257.66 | 0.5266 | 866.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -10.95 | 25.17 | 31.39 | 259.04 | 0.5229 | 570.0 | 547.2 | |
| 0.00 | 1.94 | 0.00 | 1.13 | -12.94 | 25.35 | 31.57 | 255.33 | 0.5295 | 551.0 | 588.5 | |
| 0.00 | 1.85 | 0.00 | 1.07 | -8.38 | 24.77 | 30.98 | 263.95 | 0.5142 | 891.0 | 724.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -8.60 | 24.64 | 30.86 | 263.52 | 0.5125 | 757.0 | 659.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -9.28 | 24.18 | 30.39 | 262.12 | 0.5061 | 778.0 | 640.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -11.61 | 24.18 | 30.39 | 257.55 | 0.5096 | 552.0 | 486.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -10.35 | 23.89 | 30.11 | 259.95 | 0.5032 | 567.0 | 387.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -13.15 | 24.20 | 30.41 | 254.56 | 0.5135 | 588.0 | 479.1 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -4.78 | 23.41 | 29.62 | 271.16 | 0.4947 | 646.0 | 479.9 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -13.22 | 23.99 | 30.21 | 254.35 | 0.5107 | 797.0 | 695.1 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -8.87 | 23.44 | 29.65 | 262.86 | 0.4947 | 544.0 | 529.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.12 | 23.59 | 29.80 | 254.41 | 0.5046 | 696.0 | 608.9 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -11.60 | 23.18 | 29.40 | 257.30 | 0.4950 | -316.0 | -246.3 | |
| 0.00 | 2.02 | 0.00 | 1.16 | -12.93 | 23.24 | 29.46 | 254.67 | 0.4990 | 807.0 | 601.5 | |
| 0.97 | 28.52 | 0.55 | 16.16 | -12.00 | 22.99 | 29.20 | 256.43 | 0.4929 | -459.7 | -417.6 | |
| 0.53 | 1.76 | 0.30 | 1.00 | -12.33 | 22.95 | 29.17 | 255.75 | 0.4933 | -495.2 | -317.2 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -9.21 | 22.59 | 28.81 | 262.05 | 0.4823 | 861.0 | 747.6 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -12.71 | 22.65 | 28.87 | 254.88 | 0.4898 | -232.0 | -42.1 | |
| 19.19 | -32.00 | 10.87 | -32.00 | -12.26 | 22.56 | 28.78 | 255.76 | 0.4873 | -907.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -10.58 | 22.34 | 28.56 | 259.16 | 0.4804 | 587.0 | 463.8 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -9.44 | 22.16 | 28.38 | 261.49 | 0.4761 | 702.0 | 557.0 | |
| 6.07 | 13.82 | 3.43 | 7.80 | -11.28 | 22.31 | 28.53 | 257.71 | 0.4813 | -614.2 | -169.9 | |
| 0.00 | 4.05 | 0.00 | 2.27 | -9.94 | 21.93 | 28.15 | 260.41 | 0.4732 | 767.0 | 787.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -11.89 | 21.58 | 27.79 | 256.21 | 0.4717 | 791.0 | 707.2 | |
| 0.00 | 2.11 | 0.00 | 1.18 | -12.00 | 21.07 | 27.29 | 255.79 | 0.4645 | -664.0 | -524.5 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -11.11 | 20.70 | 26.92 | 257.58 | 0.4568 | 693.0 | 470.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -10.39 | 20.12 | 26.34 | 259.01 | 0.4464 | 771.0 | 598.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.42 | 19.16 | 25.38 | 254.09 | 0.4370 | 572.0 | 468.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -11.88 | 18.49 | 24.71 | 255.04 | 0.4252 | -640.0 | -521.5 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -11.82 | 18.29 | 24.50 | 255.07 | 0.4219 | -853.0 | -705.8 | |
| 0.44 | 1.94 | 0.24 | 1.06 | -13.53 | 18.12 | 24.34 | 251.05 | 0.4254 | -800.8 | -657.7 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -13.32 | 18.06 | 24.28 | 251.50 | 0.4238 | -890.0 | -780.2 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -14.36 | 17.74 | 23.96 | 248.91 | 0.4234 | -722.0 | -602.6 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -10.51 | 17.37 | 23.58 | 257.85 | 0.4041 | -837.0 | -702.4 | |
| 0.00 | 1.76 | 0.00 | 0.96 | -13.88 | 17.65 | 23.87 | 249.95 | 0.4199 | -729.0 | -585.5 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -13.80 | 17.34 | 23.56 | 249.94 | 0.4149 | -882.0 | -809.4 | |
| 21.83 | 78.43 | 11.74 | 42.09 | -12.12 | 16.21 | 22.42 | 253.30 | 0.3910 | -1029.0 | -560.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -8.16 | 15.92 | 22.14 | 263.46 | 0.3771 | -817.0 | -691.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.24 | 15.73 | 21.94 | 257.89 | 0.3777 | -724.0 | -650.0 | |
| 2.29 | -54.00 | 1.23 | -54.00 | -12.20 | 15.78 | 22.00 | 252.86 | 0.3848 | -1045.8 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -10.28 | 15.40 | 21.62 | 257.65 | 0.3727 | -912.0 | -754.6 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -9.86 | 15.31 | 21.52 | 258.72 | 0.3702 | -743.0 | -672.9 | |
| 2.11 | -54.00 | 1.13 | -54.00 | -11.73 | 15.38 | 21.60 | 253.82 | 0.3768 | -1075.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -10.23 | 15.23 | 21.45 | 257.72 | 0.3699 | -964.0 | -865.4 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -9.27 | 15.07 | 21.29 | 260.25 | 0.3652 | -883.0 | -736.1 | |
| 1.14 | 3.34 | 0.61 | 1.78 | -9.76 | 14.94 | 21.16 | 258.87 | 0.3641 | -1092.7 | -889.8 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -10.30 | 14.98 | 21.19 | 257.42 | 0.3660 | -917.0 | -784.1 | |
| 0.00 | 3.34 | 0.00 | 1.78 | -9.58 | 14.83 | 21.05 | 259.31 | 0.3619 | -1057.0 | -879.4 | |
| 0.00 | 5.28 | 0.00 | 2.81 | -11.66 | 14.91 | 21.13 | 253.74 | 0.3693 | -981.0 | -856.0 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -10.67 | 14.61 | 20.83 | 256.22 | 0.3613 | -789.0 | -594.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -11.35 | 13.29 | 19.51 | 253.56 | 0.3428 | -793.0 | -687.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -11.30 | 13.15 | 19.37 | 253.63 | 0.3405 | -773.0 | -644.6 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -11.60 | 13.08 | 19.30 | 252.70 | 0.3405 | -716.0 | -584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
