SDO HMI 2014-04-07 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.36 | 0.00 | 14.56 | -8.68 | 8.93 | 15.14 | 259.23 | 0.2650 | 212.4 | 192.4 | |
|
previous
or next observation for the same group /

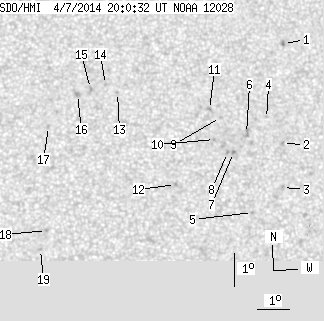

back to the solar disc SDO HMI 2014-04-07 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 0.96 | -5.86 | 12.02 | 18.23 | 269.95 | 0.3126 | 990.0 | 760.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.86 | 12.11 | 18.33 | 260.38 | 0.3165 | 682.0 | 400.4 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -10.18 | 12.18 | 18.40 | 256.31 | 0.3211 | -489.0 | -486.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -8.13 | 11.56 | 17.78 | 262.55 | 0.3062 | 247.0 | 368.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.96 | 11.26 | 17.48 | 253.25 | 0.3093 | -833.0 | -647.2 | |
| 0.00 | 3.78 | 0.00 | 1.96 | -8.60 | 10.95 | 17.17 | 260.78 | 0.2969 | 878.0 | 790.3 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -9.18 | 10.56 | 16.78 | 258.63 | 0.2920 | 933.0 | 774.9 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -9.19 | 10.37 | 16.59 | 258.51 | 0.2889 | 873.0 | 759.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.14 | 10.10 | 16.32 | 262.03 | 0.2822 | 734.0 | 605.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.81 | 9.94 | 16.16 | 259.60 | 0.2809 | 825.0 | 625.8 | |
| 0.00 | 1.85 | 0.00 | 0.95 | -7.91 | 9.75 | 15.97 | 262.73 | 0.2759 | 925.0 | 771.8 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -10.19 | 8.77 | 14.99 | 253.79 | 0.2663 | 856.0 | 727.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -7.48 | 6.86 | 13.07 | 263.43 | 0.2268 | -836.0 | -664.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -7.24 | 6.48 | 12.69 | 264.34 | 0.2201 | -796.0 | -619.9 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -7.37 | 6.02 | 12.23 | 263.56 | 0.2124 | -841.0 | -700.1 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -7.56 | 5.62 | 11.84 | 262.48 | 0.2060 | -1064.0 | -844.8 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -8.54 | 4.75 | 10.97 | 256.96 | 0.1940 | -713.0 | -611.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -11.67 | 4.79 | 11.01 | 242.34 | 0.2121 | 854.0 | 671.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -12.24 | 4.63 | 10.84 | 239.58 | 0.2142 | 810.0 | 687.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
