SDO HMI 2014-04-07 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.58 | 29.74 | 8.57 | 20.15 | 17.39 | 30.12 | 36.34 | 303.92 | 0.6836 | -297.9 | -219.4 | |
|
previous
or next observation for the same group /

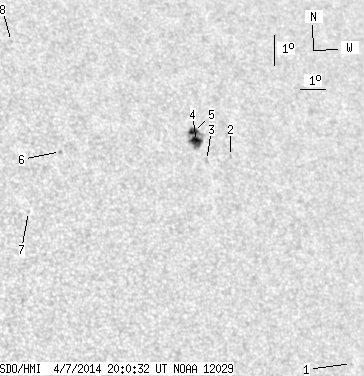

back to the solar disc SDO HMI 2014-04-07 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.49 | 10.80 | 35.33 | 41.55 | 292.14 | 0.7057 | 577.0 | 472.1 | |
| 0.00 | 1.06 | 0.00 | 0.73 | 17.13 | 31.77 | 37.99 | 302.42 | 0.6992 | 435.0 | 325.3 | |
| 0.00 | 2.02 | 0.00 | 1.38 | 16.93 | 30.78 | 36.99 | 302.84 | 0.6874 | -373.0 | -343.1 | |
| 7.83 | 22.97 | 5.33 | 15.66 | 17.53 | 30.52 | 36.74 | 303.77 | 0.6885 | -848.0 | -498.3 | |
| 4.75 | -4.00 | 3.24 | -4.00 | 17.86 | 30.48 | 36.70 | 304.21 | 0.6902 | -702.5 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.78 | 16.88 | 25.21 | 31.43 | 307.01 | 0.6272 | 642.0 | 573.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 14.86 | 23.70 | 29.92 | 305.57 | 0.5949 | 616.0 | 502.7 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 20.44 | 24.13 | 30.35 | 312.51 | 0.6445 | 559.0 | 479.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
