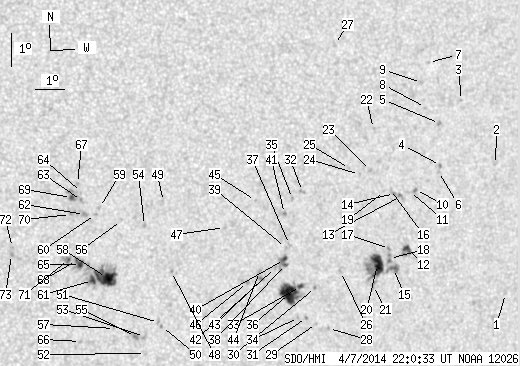

SDO HMI 2014-04-07 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.50 | 256.12 | 43.22 | 145.09 | -11.23 | 21.23 | 28.55 | 257.41 | 0.4813 | -85.0 | -3.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.50 | -11.84 | 30.49 | 37.82 | 258.58 | 0.6145 | 574.0 | 419.4 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -8.00 | 29.60 | 36.92 | 264.85 | 0.5995 | 647.0 | 492.2 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -6.16 | 28.16 | 35.48 | 268.01 | 0.5796 | 659.0 | 598.8 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -8.16 | 27.55 | 34.88 | 264.55 | 0.5708 | 715.0 | 649.3 | |
| 0.00 | 1.94 | 0.00 | 1.16 | -6.90 | 27.40 | 34.73 | 266.76 | 0.5686 | 786.0 | 683.8 | |
| 0.00 | 1.76 | 0.00 | 1.06 | -8.34 | 27.50 | 34.82 | 264.22 | 0.5701 | 634.0 | 514.3 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -5.10 | 26.87 | 34.20 | 269.99 | 0.5620 | 565.0 | 494.9 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -6.45 | 26.85 | 34.18 | 267.57 | 0.5609 | 607.0 | 481.3 | |
| 0.00 | 1.76 | 0.00 | 1.05 | -5.71 | 26.66 | 33.98 | 268.91 | 0.5584 | 838.0 | 687.7 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -8.93 | 26.71 | 34.03 | 263.13 | 0.5591 | 710.0 | 641.7 | |
| 0.00 | 1.85 | 0.00 | 1.10 | -9.00 | 26.50 | 33.82 | 262.98 | 0.5561 | 521.0 | 468.3 | |
| 3.70 | 7.66 | 2.21 | 4.57 | -10.75 | 26.63 | 33.95 | 259.87 | 0.5595 | 772.0 | 710.0 | |
| 0.00 | 2.29 | 0.00 | 1.36 | -9.17 | 26.19 | 33.51 | 262.65 | 0.5517 | 700.0 | 638.5 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -9.09 | 25.96 | 33.28 | 262.78 | 0.5484 | 829.0 | 650.9 | |
| 0.00 | 8.98 | 0.00 | 5.33 | -11.34 | 26.19 | 33.51 | 258.72 | 0.5541 | 811.0 | 580.1 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -8.98 | 25.80 | 33.13 | 262.97 | 0.5460 | 614.0 | 543.1 | |
| 0.00 | 1.67 | 0.00 | 0.99 | -10.75 | 25.97 | 33.29 | 259.75 | 0.5501 | 779.0 | 624.6 | |
| 0.00 | 4.31 | 0.00 | 2.56 | -11.05 | 26.00 | 33.33 | 259.21 | 0.5511 | 826.0 | 664.5 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -9.05 | 25.59 | 32.92 | 262.82 | 0.5430 | 712.0 | 640.0 | |
| 16.11 | 31.69 | 9.51 | 18.68 | -11.26 | 25.59 | 32.91 | 258.76 | 0.5455 | 937.0 | 598.7 | |
| 0.00 | 3.79 | 0.00 | 2.23 | -11.90 | 25.53 | 32.85 | 257.58 | 0.5457 | 612.0 | 449.0 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -7.19 | 25.03 | 32.35 | 266.27 | 0.5341 | 657.0 | 582.8 | |
| 0.00 | 1.67 | 0.00 | 0.98 | -8.45 | 25.03 | 32.35 | 263.89 | 0.5344 | 852.0 | 608.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -8.60 | 24.65 | 31.97 | 263.60 | 0.5289 | 694.0 | 615.7 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -8.44 | 24.28 | 31.60 | 263.88 | 0.5233 | 625.0 | 443.4 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -11.54 | 24.29 | 31.61 | 257.96 | 0.5271 | 757.0 | 522.4 | |
| 0.00 | 1.85 | 0.00 | 1.07 | -4.75 | 23.49 | 30.81 | 271.06 | 0.5126 | 555.0 | 542.7 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -13.28 | 24.08 | 31.41 | 254.64 | 0.5281 | 801.0 | 620.3 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -13.15 | 23.63 | 30.96 | 254.73 | 0.5213 | 659.0 | 488.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -12.07 | 23.45 | 30.78 | 256.75 | 0.5161 | 443.0 | 367.0 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -12.99 | 23.25 | 30.58 | 254.92 | 0.5154 | 732.0 | 654.7 | |
| 0.00 | 2.11 | 0.00 | 1.21 | -9.21 | 22.68 | 30.00 | 262.21 | 0.5002 | 811.0 | 687.1 | |
| 1.76 | 34.16 | 1.01 | 19.57 | -12.07 | 22.92 | 30.24 | 256.60 | 0.5083 | -550.0 | -298.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -13.00 | 22.97 | 30.29 | 254.80 | 0.5113 | 640.0 | 481.1 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -9.44 | 22.35 | 29.67 | 261.70 | 0.4955 | 743.0 | 653.9 | |
| 21.92 | -33.00 | 12.55 | -33.00 | -12.30 | 22.56 | 29.88 | 256.04 | 0.5036 | -829.3 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.90 | -10.83 | 22.39 | 29.71 | 258.92 | 0.4980 | -534.0 | -410.2 | |
| 0.88 | 10.39 | 0.50 | 5.92 | -11.43 | 22.31 | 29.64 | 257.69 | 0.4981 | -796.1 | -280.8 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -10.92 | 22.26 | 29.58 | 258.70 | 0.4963 | -348.0 | -379.3 | |
| 2.11 | -38.00 | 1.20 | -38.00 | -11.29 | 22.26 | 29.58 | 257.97 | 0.4970 | -554.1 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.10 | -9.90 | 22.12 | 29.44 | 260.72 | 0.4926 | 985.0 | 803.8 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -11.54 | 21.97 | 29.30 | 257.38 | 0.4933 | 506.0 | 426.4 | |
| 0.00 | 2.02 | 0.00 | 1.15 | -11.93 | 21.53 | 28.85 | 256.47 | 0.4875 | 934.0 | 787.5 | |
| 0.00 | 1.58 | 0.00 | 0.90 | -11.69 | 21.43 | 28.75 | 256.92 | 0.4855 | 734.0 | 618.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -9.56 | 21.07 | 28.40 | 261.24 | 0.4764 | 488.0 | 391.5 | |
| 0.00 | 1.94 | 0.00 | 1.09 | -12.04 | 21.05 | 28.37 | 256.08 | 0.4808 | -744.0 | -609.9 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -10.43 | 20.08 | 27.41 | 259.20 | 0.4628 | 672.0 | 547.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -11.83 | 18.41 | 25.73 | 255.56 | 0.4406 | -739.0 | -610.7 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -9.74 | 17.95 | 25.27 | 260.20 | 0.4288 | -654.0 | -560.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.50 | 18.24 | 25.57 | 251.77 | 0.4436 | -711.0 | -619.0 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.39 | 18.13 | 25.45 | 251.97 | 0.4415 | -823.0 | -630.7 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -14.34 | 17.79 | 25.12 | 249.68 | 0.4404 | -298.0 | -352.5 | |
| 0.00 | 2.99 | 0.00 | 1.65 | -13.83 | 17.70 | 25.02 | 250.75 | 0.4368 | -554.0 | -471.3 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -10.49 | 17.37 | 24.69 | 258.27 | 0.4213 | -818.0 | -577.4 | |
| 0.00 | 3.43 | 0.00 | 1.88 | -13.84 | 17.39 | 24.72 | 250.55 | 0.4324 | -843.0 | -722.6 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -10.37 | 16.59 | 23.91 | 258.29 | 0.4089 | -630.0 | -586.9 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -13.63 | 16.66 | 23.98 | 250.59 | 0.4206 | -718.0 | -593.2 | |
| 21.22 | 52.82 | 11.50 | 28.60 | -12.11 | 16.24 | 23.56 | 253.95 | 0.4084 | -948.4 | -607.9 | |
| 0.00 | 1.85 | 0.00 | 1.00 | -10.01 | 15.83 | 23.15 | 258.92 | 0.3962 | -583.0 | -508.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -10.23 | 15.71 | 23.04 | 258.34 | 0.3949 | -739.0 | -588.1 | |
| 2.99 | -58.00 | 1.62 | -58.00 | -12.22 | 15.78 | 23.10 | 253.44 | 0.4018 | -967.2 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.61 | -10.24 | 15.35 | 22.67 | 258.17 | 0.3892 | -846.0 | -752.9 | |
| 0.00 | 2.02 | 0.00 | 1.09 | -9.82 | 15.22 | 22.54 | 259.19 | 0.3862 | -813.0 | -718.3 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -9.58 | 15.20 | 22.53 | 259.81 | 0.3855 | -667.0 | -605.0 | |
| 2.64 | 8.45 | 1.42 | 4.55 | -11.75 | 15.34 | 22.66 | 254.35 | 0.3934 | -1057.9 | -759.6 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -14.07 | 15.56 | 22.88 | 248.84 | 0.4061 | -663.0 | -648.4 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -9.32 | 15.05 | 22.38 | 260.45 | 0.3826 | -810.0 | -750.8 | |
| 0.79 | -65.00 | 0.43 | -65.00 | -11.63 | 15.20 | 22.52 | 254.57 | 0.3908 | -1013.1 | 999999 | |
| 1.50 | 5.72 | 0.80 | 3.06 | -9.75 | 14.89 | 22.21 | 259.28 | 0.3808 | -1098.1 | -846.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -10.26 | 14.89 | 22.21 | 257.94 | 0.3820 | -931.0 | -818.6 | |
| 0.88 | 6.43 | 0.47 | 3.45 | -11.61 | 14.93 | 22.25 | 254.48 | 0.3866 | -1012.0 | -706.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -11.32 | 13.06 | 20.39 | 254.20 | 0.3565 | -890.0 | -763.7 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -11.53 | 13.05 | 20.37 | 253.60 | 0.3571 | -898.0 | -777.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
