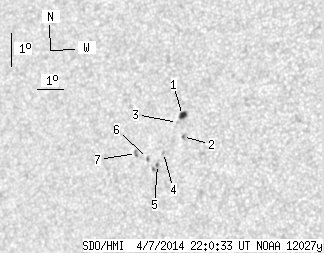

SDO HMI 2014-04-07 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.14 | 16.37 | 2.59 | 10.34 | -2.55 | 314.43 | -38.24 | 86.30 | 0.6220 | 60.2 | -254.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.70 | 5.11 | 2.31 | 3.19 | -1.80 | 315.17 | -37.50 | 84.95 | 0.6131 | 794.2 | 510.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -2.43 | 315.16 | -37.52 | 85.98 | 0.6123 | 780.0 | 764.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -2.00 | 314.98 | -37.70 | 85.31 | 0.6154 | 533.0 | 418.3 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -2.86 | 314.41 | -38.26 | 86.82 | 0.6217 | -326.0 | -321.9 | |
| 0.44 | 3.87 | 0.28 | 2.45 | -3.21 | 314.17 | -38.51 | 87.41 | 0.6246 | -748.0 | -644.4 | |
| 0.00 | 1.76 | 0.00 | 1.12 | -3.00 | 313.79 | -38.89 | 87.15 | 0.6300 | -706.0 | -574.2 | |
| 0.00 | 2.55 | 0.00 | 1.64 | -2.82 | 313.37 | -39.31 | 86.94 | 0.6359 | -641.0 | -524.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
