SDO HMI 2014-04-07 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 31.88 | 0.00 | 16.46 | -8.70 | 8.86 | 16.18 | 259.64 | 0.2822 | 405.1 | 356.4 | |
|
previous
or next observation for the same group /

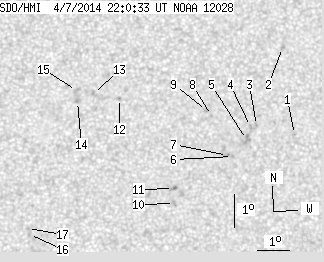

back to the solar disc SDO HMI 2014-04-07 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.42 | 12.53 | 19.85 | 262.22 | 0.3405 | 643.0 | 514.2 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -5.83 | 12.03 | 19.35 | 269.94 | 0.3311 | 849.0 | 700.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -8.19 | 11.29 | 18.62 | 262.58 | 0.3200 | 775.0 | 606.5 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -8.23 | 11.10 | 18.43 | 262.41 | 0.3170 | 760.0 | 607.5 | |
| 0.00 | 5.19 | 0.00 | 2.71 | -8.62 | 10.99 | 18.32 | 261.13 | 0.3159 | 817.0 | 736.7 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -9.15 | 10.57 | 17.90 | 259.29 | 0.3101 | 873.0 | 721.2 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -9.12 | 10.41 | 17.73 | 259.30 | 0.3074 | 909.0 | 780.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -7.94 | 9.85 | 17.17 | 263.00 | 0.2959 | 747.0 | 527.8 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -7.79 | 9.68 | 17.01 | 263.45 | 0.2930 | 783.0 | 642.4 | |
| 0.00 | 2.47 | 0.00 | 1.27 | -10.61 | 8.80 | 16.12 | 253.29 | 0.2863 | 734.0 | 622.5 | |
| 0.00 | 2.82 | 0.00 | 1.45 | -10.16 | 8.75 | 16.07 | 254.79 | 0.2836 | 888.0 | 765.4 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -7.51 | 6.94 | 14.26 | 263.71 | 0.2468 | -828.0 | -663.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -7.38 | 6.12 | 13.45 | 263.99 | 0.2329 | -912.0 | -757.7 | |
| 0.00 | 1.94 | 0.00 | 0.98 | -7.63 | 5.63 | 12.96 | 262.70 | 0.2251 | -889.0 | -743.7 | |
| 0.00 | 2.99 | 0.00 | 1.52 | -7.30 | 5.59 | 12.92 | 264.15 | 0.2239 | -801.0 | -656.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -11.66 | 4.28 | 11.61 | 243.54 | 0.2211 | 835.0 | 593.1 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -11.48 | 4.21 | 11.54 | 244.16 | 0.2187 | 704.0 | 527.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
