SDO HMI 2014-04-07 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.82 | 254.65 | 43.24 | 145.16 | -11.23 | 21.39 | 29.27 | 257.66 | 0.4918 | -101.0 | -15.5 | |
|
previous
or next observation for the same group /

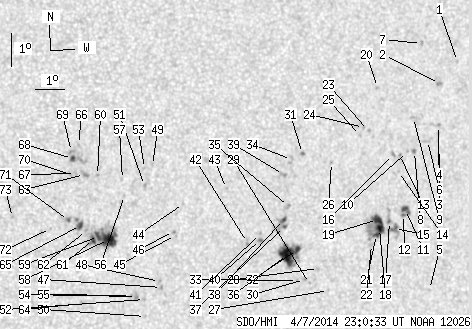

back to the solar disc SDO HMI 2014-04-07 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.70 | -6.17 | 28.06 | 35.93 | 267.98 | 0.5860 | 716.0 | 546.9 | |
| 0.00 | 2.55 | 0.00 | 1.55 | -6.87 | 27.44 | 35.32 | 266.80 | 0.5771 | 774.0 | 639.6 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -8.13 | 27.52 | 35.40 | 264.61 | 0.5782 | 747.0 | 651.9 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -8.37 | 27.55 | 35.42 | 264.20 | 0.5786 | 603.0 | 503.6 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -13.07 | 27.84 | 35.71 | 256.17 | 0.5878 | 586.0 | 413.9 | |
| 0.00 | 3.35 | 0.00 | 2.02 | -8.60 | 27.16 | 35.04 | 263.77 | 0.5732 | 413.0 | 442.2 | |
| 0.00 | 1.94 | 0.00 | 1.16 | -5.71 | 26.69 | 34.57 | 268.87 | 0.5668 | 665.0 | 609.3 | |
| 0.44 | 1.94 | 0.26 | 1.16 | -8.96 | 26.72 | 34.59 | 263.12 | 0.5671 | 720.6 | 603.7 | |
| 0.00 | 2.03 | 0.00 | 1.21 | -7.94 | 26.58 | 34.45 | 264.91 | 0.5647 | 660.0 | 566.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -8.97 | 26.46 | 34.34 | 263.07 | 0.5634 | 690.0 | 584.5 | |
| 3.79 | 8.36 | 2.27 | 5.02 | -10.72 | 26.59 | 34.47 | 260.00 | 0.5668 | 765.4 | 641.5 | |
| 0.53 | -11.00 | 0.32 | -11.00 | -10.87 | 26.54 | 34.41 | 259.72 | 0.5662 | 860.8 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -9.08 | 26.18 | 34.05 | 262.86 | 0.5594 | 531.0 | 566.6 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -9.59 | 26.20 | 34.07 | 261.95 | 0.5601 | 504.0 | 420.2 | |
| 2.29 | 9.16 | 1.37 | 5.48 | -11.31 | 26.26 | 34.14 | 258.89 | 0.5630 | 698.4 | 540.9 | |
| 0.00 | 2.38 | 0.00 | 1.41 | -9.09 | 25.96 | 33.83 | 262.82 | 0.5563 | 750.0 | 629.3 | |
| 0.62 | 6.08 | 0.37 | 3.62 | -11.11 | 26.05 | 33.93 | 259.21 | 0.5597 | 797.0 | 607.2 | |
| 6.43 | 33.72 | 3.82 | 20.01 | -11.34 | 25.71 | 33.59 | 258.74 | 0.5552 | 972.8 | 573.3 | |
| 6.16 | -18.00 | 3.66 | -18.00 | -11.08 | 25.60 | 33.48 | 259.20 | 0.5533 | 944.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -7.12 | 25.19 | 33.07 | 266.39 | 0.5446 | 615.0 | 588.9 | |
| 2.64 | -18.00 | 1.57 | -18.00 | -11.53 | 25.63 | 33.50 | 258.39 | 0.5543 | 817.1 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.41 | -11.84 | 25.49 | 33.36 | 257.80 | 0.5528 | 311.0 | 380.9 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -8.43 | 24.98 | 32.86 | 263.97 | 0.5418 | 759.0 | 627.6 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -8.35 | 24.79 | 32.67 | 264.11 | 0.5390 | 767.0 | 674.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -8.59 | 24.71 | 32.58 | 263.65 | 0.5379 | 759.0 | 659.6 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -9.46 | 23.75 | 31.63 | 261.92 | 0.5245 | 693.0 | 546.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -13.31 | 24.12 | 32.00 | 254.76 | 0.5365 | 761.0 | 543.8 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -12.67 | 23.67 | 31.54 | 255.82 | 0.5285 | 257.0 | 210.0 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -13.14 | 23.41 | 31.28 | 254.86 | 0.5259 | 403.0 | 433.9 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -13.02 | 23.21 | 31.09 | 255.01 | 0.5228 | 755.0 | 591.4 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -9.24 | 22.70 | 30.57 | 262.21 | 0.5088 | 779.0 | 670.0 | |
| 3.26 | 35.75 | 1.88 | 20.59 | -12.13 | 22.84 | 30.72 | 256.60 | 0.5154 | -552.1 | -354.5 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -13.07 | 22.96 | 30.84 | 254.85 | 0.5194 | 665.0 | 552.4 | |
| 0.00 | 3.26 | 0.00 | 1.87 | -9.44 | 22.33 | 30.20 | 261.77 | 0.5035 | 507.0 | 607.8 | |
| 0.00 | 2.11 | 0.00 | 1.21 | -10.86 | 22.37 | 30.24 | 258.97 | 0.5060 | -591.0 | -556.6 | |
| 20.25 | -32.00 | 11.65 | -32.00 | -12.30 | 22.51 | 30.38 | 256.18 | 0.5109 | -860.8 | 999999 | |
| 0.88 | 11.45 | 0.51 | 6.56 | -11.47 | 22.30 | 30.17 | 257.76 | 0.5061 | -765.3 | -266.1 | |
| 1.58 | -37.00 | 0.91 | -37.00 | -11.26 | 22.24 | 30.11 | 258.15 | 0.5048 | -597.2 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.71 | -9.91 | 22.09 | 29.97 | 260.80 | 0.5005 | 776.0 | 720.9 | |
| 0.53 | 2.03 | 0.30 | 1.15 | -11.90 | 21.50 | 29.37 | 256.67 | 0.4953 | 925.5 | 807.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.72 | 21.48 | 29.35 | 257.03 | 0.4945 | 720.0 | 655.3 | |
| 0.00 | 1.85 | 0.00 | 1.05 | -12.01 | 21.06 | 28.93 | 256.31 | 0.4890 | -610.0 | -560.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -10.43 | 20.15 | 28.03 | 259.35 | 0.4722 | 728.0 | 577.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -10.95 | 18.73 | 26.60 | 257.83 | 0.4516 | -539.0 | -385.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -11.92 | 18.55 | 26.42 | 255.63 | 0.4513 | -367.0 | -440.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -11.80 | 18.47 | 26.34 | 255.86 | 0.4498 | -380.0 | -524.9 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -13.51 | 18.24 | 26.12 | 252.04 | 0.4518 | -730.0 | -589.5 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -13.33 | 18.15 | 26.03 | 252.38 | 0.4499 | -786.0 | -652.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -9.85 | 17.58 | 25.45 | 259.98 | 0.4318 | -643.0 | -527.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -14.41 | 17.80 | 25.68 | 249.86 | 0.4488 | -603.0 | -412.2 | |
| 0.00 | 1.94 | 0.00 | 1.06 | -10.47 | 17.36 | 25.23 | 258.50 | 0.4296 | -764.0 | -570.0 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -13.90 | 17.70 | 25.58 | 250.91 | 0.4454 | -635.0 | -494.0 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -9.96 | 17.31 | 25.19 | 259.67 | 0.4279 | -712.0 | -534.9 | |
| 0.00 | 3.79 | 0.00 | 2.09 | -13.82 | 17.42 | 25.30 | 250.93 | 0.4409 | -820.0 | -602.6 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -13.80 | 17.21 | 25.09 | 250.86 | 0.4377 | -689.0 | -690.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -10.80 | 16.71 | 24.59 | 257.51 | 0.4204 | -566.0 | -403.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -10.32 | 16.60 | 24.48 | 258.61 | 0.4176 | -675.0 | -558.6 | |
| 15.58 | 45.87 | 8.49 | 24.96 | -12.14 | 16.29 | 24.17 | 254.16 | 0.4178 | -924.0 | -546.7 | |
| 3.35 | -58.00 | 1.82 | -58.00 | -12.07 | 15.95 | 23.83 | 254.17 | 0.4124 | -1008.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -10.23 | 15.76 | 23.64 | 258.53 | 0.4043 | -748.0 | -590.1 | |
| 2.73 | -58.00 | 1.48 | -58.00 | -12.16 | 15.79 | 23.67 | 253.86 | 0.4103 | -990.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.90 | 15.53 | 23.41 | 254.36 | 0.4054 | -959.0 | -858.6 | |
| 0.00 | 3.61 | 0.00 | 1.95 | -10.22 | 15.33 | 23.20 | 258.41 | 0.3975 | -778.0 | -713.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.11 | 15.58 | 23.46 | 249.15 | 0.4149 | -755.0 | -658.8 | |
| 2.73 | 7.13 | 1.48 | 3.85 | -11.76 | 15.32 | 23.20 | 254.60 | 0.4017 | -983.4 | -795.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -9.33 | 15.06 | 22.94 | 260.58 | 0.3915 | -728.0 | -643.7 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -10.20 | 15.03 | 22.90 | 258.35 | 0.3928 | -870.0 | -771.1 | |
| 1.50 | 7.48 | 0.80 | 4.03 | -9.76 | 14.90 | 22.77 | 259.44 | 0.3897 | -1011.2 | -744.0 | |
| 0.00 | 2.73 | 0.00 | 1.47 | -9.55 | 14.85 | 22.72 | 259.96 | 0.3885 | -855.0 | -743.0 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -10.24 | 14.87 | 22.74 | 258.20 | 0.3903 | -939.0 | -785.9 | |
| 0.53 | 2.82 | 0.28 | 1.52 | -11.62 | 14.91 | 22.78 | 254.73 | 0.3949 | -967.7 | -832.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.89 | 14.33 | 22.21 | 253.76 | 0.3869 | 431.0 | 326.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -11.60 | 13.06 | 20.93 | 253.76 | 0.3661 | -750.0 | -613.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
