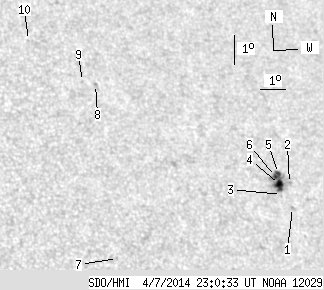

SDO HMI 2014-04-07 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.97 | 28.62 | 8.35 | 19.81 | 17.80 | 29.87 | 37.75 | 303.48 | 0.7010 | -310.7 | -265.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.92 | 16.86 | 30.82 | 38.70 | 301.62 | 0.7050 | -608.0 | -419.6 | |
| 0.00 | 2.38 | 0.00 | 1.67 | 17.64 | 30.90 | 38.78 | 302.55 | 0.7104 | 65.0 | 26.7 | |
| 0.00 | 1.50 | 0.00 | 1.04 | 17.26 | 30.48 | 38.35 | 302.34 | 0.7037 | -469.0 | -473.7 | |
| 7.92 | 20.52 | 5.52 | 14.30 | 17.58 | 30.48 | 38.36 | 302.74 | 0.7056 | -770.3 | -539.2 | |
| 2.20 | -4.00 | 1.54 | -4.00 | 17.94 | 30.53 | 38.41 | 303.16 | 0.7084 | -561.7 | 999999 | |
| 1.85 | -4.00 | 1.29 | -4.00 | 17.84 | 30.38 | 38.26 | 303.12 | 0.7062 | -801.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 14.76 | 23.70 | 31.58 | 304.00 | 0.6131 | 606.0 | 491.8 | |
| 0.00 | 1.14 | 0.00 | 0.75 | 20.47 | 24.02 | 31.90 | 311.17 | 0.6599 | 639.0 | 556.9 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 20.54 | 23.55 | 31.43 | 311.66 | 0.6559 | 610.0 | 518.3 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 21.82 | 21.82 | 29.70 | 314.75 | 0.6500 | 539.0 | 499.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
