SDO HMI 2014-04-07 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.02 | 115.35 | 43.75 | 365.58 | 12.44 | 272.95 | -79.18 | 76.29 | 0.9865 | -106.0 | -5.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-07 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

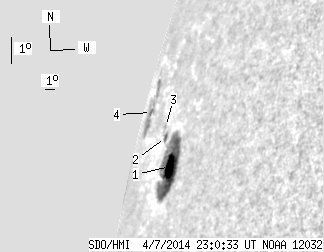

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.38 | 84.44 | 32.61 | 207.79 | 11.47 | 275.45 | -76.68 | 76.90 | 0.9800 | -161.9 | -107.5 | |
| 1.23 | 3.79 | 3.51 | 10.75 | 12.55 | 273.82 | -78.31 | 76.06 | 0.9856 | 27.3 | 66.3 | |
| 0.00 | 1.41 | 0.00 | 4.24 | 12.94 | 273.37 | -78.75 | 75.74 | 0.9870 | 281.0 | 247.6 | |
| 1.41 | 25.71 | 7.63 | 142.80 | 13.82 | 269.24 | -82.89 | 75.43 | 0.9960 | 20.9 | 115.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
