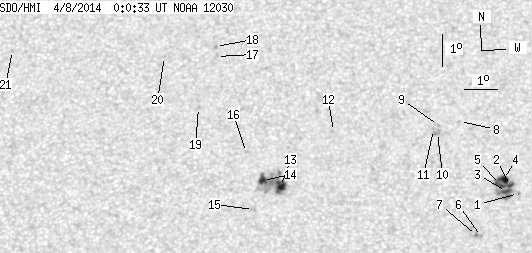

SDO HMI 2014-04-08 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.73 | 96.60 | 14.52 | 50.55 | 10.51 | 359.43 | 7.86 | 335.44 | 0.3223 | -218.6 | -234.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.65 | 9.95 | 4.23 | 12.66 | 321.84 | 0.3509 | -701.0 | -594.4 | |
| 1.85 | 32.14 | 0.98 | 16.98 | 10.19 | 3.99 | 12.42 | 322.80 | 0.3516 | -893.9 | -862.6 | |
| 2.99 | -2.00 | 1.58 | -2.00 | 10.00 | 3.86 | 12.29 | 322.76 | 0.3479 | -1103.6 | 999999 | |
| 5.11 | -2.00 | 2.70 | -2.00 | 10.38 | 3.78 | 12.21 | 323.59 | 0.3520 | -929.8 | 999999 | |
| 4.49 | -2.00 | 2.37 | -2.00 | 10.22 | 3.68 | 12.11 | 323.54 | 0.3489 | -1088.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 8.58 | 3.03 | 11.46 | 322.08 | 0.3211 | -904.0 | -786.6 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 8.61 | 2.88 | 11.31 | 322.51 | 0.3199 | -1083.0 | -920.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 12.17 | 2.48 | 10.91 | 329.37 | 0.3647 | -705.0 | -538.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 12.03 | 1.82 | 10.25 | 330.72 | 0.3574 | -646.0 | -556.9 | |
| 0.00 | 3.17 | 0.00 | 1.68 | 11.81 | 1.78 | 10.21 | 330.50 | 0.3539 | -919.0 | -841.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 11.91 | 1.66 | 10.09 | 330.93 | 0.3542 | -684.0 | -621.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 11.79 | 358.56 | 6.98 | 338.83 | 0.3310 | 603.0 | 528.1 | |
| 8.45 | 43.68 | 4.38 | 22.63 | 10.05 | 356.89 | 5.32 | 341.86 | 0.2943 | 1029.8 | 30.3 | |
| 4.84 | -13.00 | 2.51 | -13.00 | 10.23 | 356.34 | 4.77 | 343.80 | 0.2946 | -948.2 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.23 | 9.33 | 356.05 | 4.48 | 343.87 | 0.2786 | 803.0 | 569.4 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 11.11 | 355.87 | 4.29 | 346.08 | 0.3066 | -286.0 | -351.1 | |
| 0.00 | 1.85 | 0.00 | 0.98 | 14.15 | 354.99 | 3.42 | 350.53 | 0.3529 | 775.0 | 578.8 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 14.47 | 354.96 | 3.39 | 350.75 | 0.3581 | 789.0 | 642.6 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 12.52 | 354.41 | 2.84 | 351.41 | 0.3250 | 798.0 | 609.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 14.14 | 353.38 | 1.81 | 354.96 | 0.3495 | 714.0 | 566.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 14.34 | 348.67 | -2.90 | 7.98 | 0.3549 | 573.0 | 440.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
