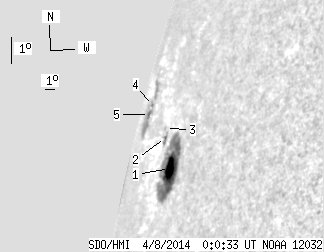

SDO HMI 2014-04-08 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.28 | 121.43 | 44.75 | 356.45 | 12.37 | 273.10 | -78.47 | 76.26 | 0.9846 | -180.4 | -11.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.03 | 89.47 | 30.29 | 210.29 | 11.44 | 275.43 | -76.14 | 76.85 | 0.9782 | -275.1 | -102.8 | |
| 0.70 | 4.84 | 1.90 | 13.14 | 12.58 | 273.81 | -77.76 | 75.95 | 0.9841 | 69.1 | 46.9 | |
| 0.00 | 1.32 | 0.00 | 3.74 | 12.90 | 273.47 | -78.10 | 75.68 | 0.9852 | 217.0 | 217.3 | |
| 0.44 | 25.80 | 2.11 | 129.28 | 14.05 | 269.43 | -82.14 | 75.10 | 0.9949 | 157.6 | 117.0 | |
| 2.11 | -4.00 | 10.45 | -4.00 | 13.80 | 269.20 | -82.38 | 75.39 | 0.9952 | -57.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
