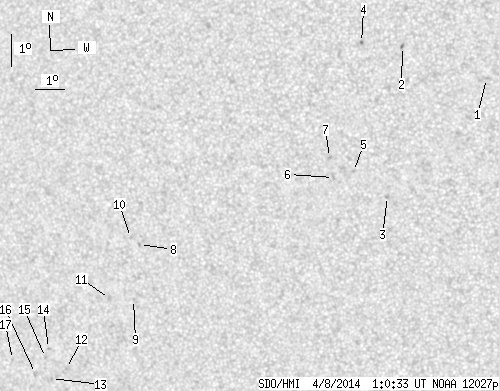

SDO HMI 2014-04-08 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.73 | 0.00 | 13.16 | -19.25 | 322.66 | -28.36 | 118.02 | 0.5065 | -134.1 | -76.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.56 | -14.66 | 333.22 | -17.80 | 117.36 | 0.3345 | 716.0 | 544.4 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -13.59 | 330.56 | -20.46 | 111.85 | 0.3677 | 950.0 | 745.2 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -18.13 | 329.56 | -21.47 | 121.70 | 0.4105 | 842.0 | 717.1 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -13.42 | 329.22 | -21.80 | 110.37 | 0.3870 | -836.0 | -697.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -17.32 | 328.51 | -22.52 | 118.89 | 0.4193 | 801.0 | 560.9 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -17.48 | 327.80 | -23.22 | 118.57 | 0.4300 | 659.0 | 603.7 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -16.86 | 327.75 | -23.27 | 117.20 | 0.4270 | 802.0 | 664.9 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -19.20 | 320.62 | -30.40 | 116.65 | 0.5368 | -708.0 | -565.1 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -20.88 | 320.03 | -30.99 | 119.18 | 0.5531 | -729.0 | -533.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -18.97 | 320.34 | -30.68 | 116.08 | 0.5394 | -582.0 | -490.8 | |
| 0.00 | 2.47 | 0.00 | 1.48 | -20.80 | 319.15 | -31.88 | 118.51 | 0.5639 | -485.0 | -400.0 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -22.88 | 316.94 | -34.08 | 120.56 | 0.6018 | -664.0 | -587.9 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -23.15 | 316.27 | -34.76 | 120.61 | 0.6113 | -709.0 | -603.7 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -22.21 | 316.42 | -34.60 | 119.24 | 0.6048 | -706.0 | -537.8 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -22.49 | 316.22 | -34.80 | 119.56 | 0.6085 | -713.0 | -595.1 | |
| 0.00 | 2.47 | 0.00 | 1.55 | -22.96 | 315.68 | -35.34 | 120.00 | 0.6172 | -327.0 | -373.5 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -22.47 | 314.91 | -36.11 | 118.86 | 0.6241 | -590.0 | -498.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
