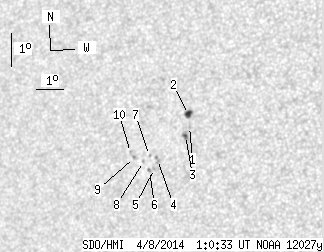

SDO HMI 2014-04-08 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.32 | 20.26 | 2.64 | 12.47 | -2.61 | 314.70 | -36.32 | 86.04 | 0.5954 | -181.1 | -149.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 1.02 | -2.19 | 315.52 | -35.50 | 85.18 | 0.5846 | 590.0 | 441.2 | |
| 3.26 | 4.84 | 1.99 | 2.95 | -1.83 | 315.49 | -35.53 | 84.56 | 0.5856 | 823.2 | 574.1 | |
| 1.06 | 3.96 | 0.65 | 2.42 | -2.46 | 315.37 | -35.66 | 85.65 | 0.5863 | 898.8 | 616.2 | |
| 0.00 | 2.91 | 0.00 | 1.80 | -3.11 | 314.30 | -36.73 | 86.96 | 0.6002 | -851.0 | -654.7 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -3.37 | 314.17 | -36.85 | 87.42 | 0.6015 | -768.0 | -626.3 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -3.42 | 313.98 | -37.04 | 87.53 | 0.6041 | -733.0 | -621.6 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -2.97 | 314.00 | -37.02 | 86.78 | 0.6045 | -641.0 | -490.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -3.14 | 313.77 | -37.26 | 87.10 | 0.6075 | -599.0 | -561.9 | |
| 0.00 | 1.67 | 0.00 | 1.05 | -2.99 | 313.43 | -37.59 | 86.92 | 0.6123 | -736.0 | -601.5 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -2.83 | 313.29 | -37.74 | 86.69 | 0.6146 | -411.0 | -381.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
