SDO HMI 2014-04-08 03:00:33 UT

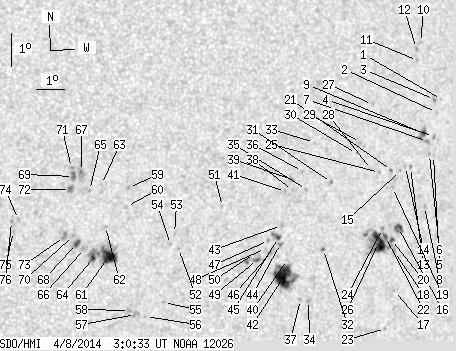

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.28 | 258.86 | 40.09 | 151.18 | -11.11 | 21.60 | 31.68 | 258.46 | 0.5268 | -30.7 | -12.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.61 | -6.78 | 27.78 | 37.86 | 266.84 | 0.6126 | 437.0 | 340.2 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -7.19 | 27.63 | 37.70 | 266.18 | 0.6104 | 588.0 | 472.1 | |
| 0.00 | 2.20 | 0.00 | 1.37 | -6.80 | 27.51 | 37.59 | 266.82 | 0.6089 | 716.0 | 570.3 | |
| 0.00 | 1.94 | 0.00 | 1.21 | -7.91 | 27.58 | 37.66 | 264.99 | 0.6098 | 588.0 | 564.4 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -8.48 | 27.65 | 37.72 | 264.05 | 0.6107 | 478.0 | 423.3 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -8.46 | 27.49 | 37.57 | 264.08 | 0.6085 | 766.0 | 664.5 | |
| 0.00 | 1.85 | 0.00 | 1.15 | -8.08 | 27.37 | 37.45 | 264.71 | 0.6068 | 798.0 | 677.3 | |
| 0.00 | 1.85 | 0.00 | 1.15 | -10.03 | 27.49 | 37.57 | 261.50 | 0.6093 | 578.0 | 461.2 | |
| 2.03 | 6.70 | 1.26 | 4.15 | -7.85 | 27.19 | 37.27 | 265.09 | 0.6044 | 738.7 | 630.1 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -5.13 | 26.85 | 36.93 | 269.64 | 0.6007 | 543.0 | 434.5 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -5.67 | 26.77 | 36.85 | 268.73 | 0.5992 | 698.0 | 571.8 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -5.32 | 26.71 | 36.79 | 269.33 | 0.5986 | 700.0 | 562.9 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -8.89 | 26.81 | 36.89 | 263.33 | 0.5993 | 658.0 | 521.5 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -8.88 | 26.62 | 36.70 | 263.36 | 0.5967 | 668.0 | 510.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -9.01 | 26.45 | 36.52 | 263.12 | 0.5943 | 697.0 | 620.7 | |
| 2.91 | 6.26 | 1.79 | 3.86 | -10.72 | 26.59 | 36.67 | 260.26 | 0.5976 | 760.7 | 663.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -12.62 | 26.73 | 36.81 | 257.11 | 0.6020 | 669.0 | 554.7 | |
| 0.00 | 2.56 | 0.00 | 1.58 | -11.45 | 26.54 | 36.62 | 259.03 | 0.5978 | 563.0 | 467.1 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.54 | 26.21 | 36.28 | 262.22 | 0.5913 | 550.0 | 471.7 | |
| 1.15 | 40.88 | 0.70 | 24.99 | -11.10 | 26.38 | 36.45 | 259.60 | 0.5950 | 660.2 | 665.7 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -9.03 | 26.11 | 36.19 | 263.07 | 0.5896 | 695.0 | 596.8 | |
| 1.23 | -20.00 | 0.76 | -20.00 | -11.02 | 26.14 | 36.21 | 259.69 | 0.5916 | 711.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -13.79 | 26.58 | 36.66 | 255.16 | 0.6021 | 610.0 | 503.2 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -10.79 | 25.99 | 36.07 | 260.07 | 0.5894 | 712.0 | 620.9 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -9.12 | 25.67 | 35.74 | 262.89 | 0.5835 | 511.0 | 473.3 | |
| 14.27 | -20.00 | 8.73 | -20.00 | -11.22 | 25.90 | 35.98 | 259.33 | 0.5886 | 956.9 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -7.10 | 25.20 | 35.28 | 266.38 | 0.5765 | 614.0 | 534.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -9.04 | 25.36 | 35.44 | 263.00 | 0.5791 | 536.0 | 447.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -8.26 | 24.87 | 34.94 | 264.34 | 0.5718 | 785.0 | 639.0 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -8.60 | 24.75 | 34.83 | 263.74 | 0.5703 | 566.0 | 587.3 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -9.52 | 23.93 | 34.01 | 262.04 | 0.5591 | 727.0 | 595.1 | |
| 0.44 | 1.32 | 0.26 | 0.79 | -11.55 | 23.89 | 33.96 | 258.41 | 0.5609 | 741.4 | 658.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -8.36 | 23.19 | 33.27 | 264.09 | 0.5477 | 512.0 | 435.5 | |
| 0.00 | 1.67 | 0.00 | 1.00 | -13.11 | 23.56 | 33.64 | 255.56 | 0.5592 | 787.0 | 683.1 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -9.78 | 23.04 | 33.12 | 261.47 | 0.5466 | 607.0 | 453.2 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -9.25 | 22.84 | 32.92 | 262.43 | 0.5432 | 670.0 | 561.2 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -13.10 | 23.26 | 33.34 | 255.50 | 0.5550 | 826.0 | 624.5 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -9.84 | 22.54 | 32.62 | 261.30 | 0.5394 | 790.0 | 678.0 | |
| 0.00 | 1.94 | 0.00 | 1.14 | -9.51 | 22.47 | 32.55 | 261.90 | 0.5381 | 800.0 | 683.0 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -11.92 | 22.61 | 32.69 | 257.47 | 0.5435 | -453.0 | -331.8 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -9.89 | 22.29 | 32.37 | 261.18 | 0.5358 | 835.0 | 709.6 | |
| 26.34 | 42.47 | 15.52 | 25.03 | -12.44 | 22.54 | 32.62 | 256.50 | 0.5434 | -819.4 | -302.2 | |
| 0.00 | 1.67 | 0.00 | 0.98 | -10.91 | 22.27 | 32.34 | 259.26 | 0.5368 | -661.0 | -589.2 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -11.46 | 22.30 | 32.37 | 258.26 | 0.5381 | -734.0 | -668.1 | |
| 1.23 | 4.67 | 0.72 | 2.73 | -11.28 | 22.20 | 32.28 | 258.57 | 0.5364 | -463.4 | 51.9 | |
| 0.00 | 4.58 | 0.00 | 2.68 | -11.71 | 22.00 | 32.08 | 257.72 | 0.5343 | -175.0 | -146.7 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -11.39 | 21.85 | 31.93 | 258.29 | 0.5316 | 578.0 | 507.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -11.64 | 21.78 | 31.85 | 257.81 | 0.5309 | 388.0 | 356.1 | |
| 0.97 | 8.63 | 0.56 | 5.02 | -11.98 | 21.53 | 31.61 | 257.10 | 0.5281 | 875.2 | 333.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -11.81 | 21.40 | 31.48 | 257.40 | 0.5258 | 627.0 | 555.1 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -10.46 | 20.10 | 30.18 | 259.73 | 0.5045 | 594.0 | 475.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -11.80 | 18.70 | 28.78 | 256.68 | 0.4863 | -555.0 | -508.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.35 | 18.51 | 28.59 | 257.53 | 0.4825 | -545.0 | -447.9 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.69 | 18.41 | 28.49 | 256.81 | 0.4817 | -743.0 | -622.9 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -13.45 | 18.38 | 28.45 | 253.20 | 0.4860 | -591.0 | -474.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.90 | 17.80 | 27.88 | 252.03 | 0.4791 | -539.0 | -431.3 | |
| 0.00 | 3.88 | 0.00 | 2.18 | -13.86 | 17.45 | 27.52 | 251.96 | 0.4738 | -660.0 | -639.7 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -13.75 | 17.22 | 27.30 | 252.09 | 0.4702 | -873.0 | -722.4 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -10.04 | 16.79 | 26.87 | 259.86 | 0.4540 | -639.0 | -520.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -10.62 | 16.78 | 26.86 | 258.60 | 0.4548 | -582.0 | -434.1 | |
| 13.66 | 39.82 | 7.57 | 22.06 | -12.15 | 16.31 | 26.39 | 255.09 | 0.4516 | -911.2 | -649.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -11.25 | 16.12 | 26.20 | 257.00 | 0.4462 | -723.0 | -608.2 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -10.00 | 15.87 | 25.95 | 259.74 | 0.4398 | -561.0 | -453.1 | |
| 1.76 | -61.00 | 0.97 | -61.00 | -12.20 | 15.81 | 25.88 | 254.76 | 0.4441 | -995.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -10.19 | 15.48 | 25.56 | 259.18 | 0.4341 | -802.0 | -675.5 | |
| 0.00 | 3.52 | 0.00 | 1.94 | -11.95 | 15.47 | 25.55 | 255.20 | 0.4383 | -831.0 | -714.2 | |
| 0.00 | 9.60 | 0.00 | 5.26 | -9.64 | 15.16 | 25.24 | 260.39 | 0.4282 | -862.0 | -643.1 | |
| 2.03 | 5.02 | 1.11 | 2.76 | -11.81 | 15.19 | 25.26 | 255.39 | 0.4335 | -973.9 | -643.2 | |
| 0.26 | 3.88 | 0.14 | 2.12 | -9.80 | 14.91 | 24.99 | 259.95 | 0.4245 | -1132.0 | -934.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -11.57 | 15.06 | 25.14 | 255.88 | 0.4310 | -867.0 | -713.2 | |
| 0.00 | 1.76 | 0.00 | 0.96 | -9.53 | 14.82 | 24.90 | 260.56 | 0.4227 | -873.0 | -781.4 | |
| 0.00 | 4.58 | 0.00 | 2.50 | -10.19 | 14.84 | 24.92 | 259.00 | 0.4242 | -999.0 | -853.0 | |
| 0.00 | 4.05 | 0.00 | 2.22 | -11.61 | 14.76 | 24.84 | 255.66 | 0.4265 | -959.0 | -825.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.17 | 13.18 | 23.26 | 256.04 | 0.4009 | -658.0 | -517.1 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -11.53 | 13.04 | 23.12 | 255.08 | 0.3999 | -704.0 | -502.9 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -11.24 | 12.95 | 23.03 | 255.77 | 0.3975 | -888.0 | -723.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
