SDO HMI 2014-04-08 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.20 | 0.00 | 14.25 | -18.83 | 324.07 | -25.85 | 119.21 | 0.4708 | 44.8 | 3.0 | |
|
previous
or next observation for the same group /

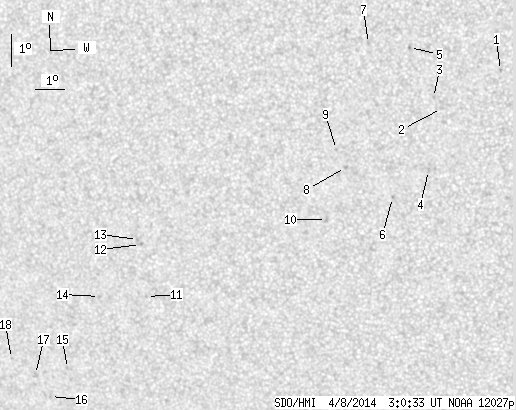

back to the solar disc SDO HMI 2014-04-08 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.60 | -14.42 | 333.47 | -16.45 | 118.41 | 0.3132 | 897.0 | 625.5 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -15.51 | 331.45 | -18.47 | 118.86 | 0.3500 | 34.0 | 37.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.17 | 331.22 | -18.70 | 117.70 | 0.3510 | 716.0 | 543.1 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -17.38 | 330.83 | -19.09 | 122.74 | 0.3727 | 823.0 | 701.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.62 | 330.58 | -19.35 | 112.94 | 0.3511 | 813.0 | 728.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -18.17 | 329.54 | -20.39 | 122.98 | 0.3963 | 875.0 | 655.4 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -13.45 | 329.24 | -20.68 | 111.33 | 0.3703 | -807.0 | -498.9 | |
| 0.00 | 1.67 | 0.00 | 0.91 | -17.19 | 328.07 | -21.85 | 119.24 | 0.4093 | 922.0 | 725.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.63 | 327.83 | -22.09 | 117.76 | 0.4089 | 853.0 | 674.6 | |
| 0.00 | 2.56 | 0.00 | 1.40 | -18.75 | 327.21 | -22.71 | 121.76 | 0.4318 | 830.0 | 630.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -20.83 | 320.43 | -29.49 | 120.09 | 0.5338 | -537.0 | -444.7 | |
| 0.00 | 1.94 | 0.00 | 1.13 | -19.22 | 320.55 | -29.37 | 117.33 | 0.5234 | -702.0 | -554.9 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -19.06 | 320.47 | -29.45 | 116.99 | 0.5236 | -749.0 | -623.0 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -20.74 | 318.70 | -31.22 | 118.81 | 0.5554 | -663.0 | -499.5 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -22.90 | 316.93 | -32.99 | 121.25 | 0.5889 | -634.0 | -542.7 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -23.74 | 316.02 | -33.90 | 122.00 | 0.6043 | -440.0 | -428.2 | |
| 0.00 | 2.29 | 0.00 | 1.42 | -23.02 | 315.64 | -34.28 | 120.67 | 0.6050 | -706.0 | -524.3 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -22.46 | 314.85 | -35.07 | 119.39 | 0.6117 | -719.0 | -587.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
