SDO HMI 2014-04-08 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.79 | 152.25 | 28.85 | 98.28 | 2.95 | 28.57 | 38.65 | 282.51 | 0.6399 | 21.0 | -63.4 | |
|
previous
or next observation for the same group /

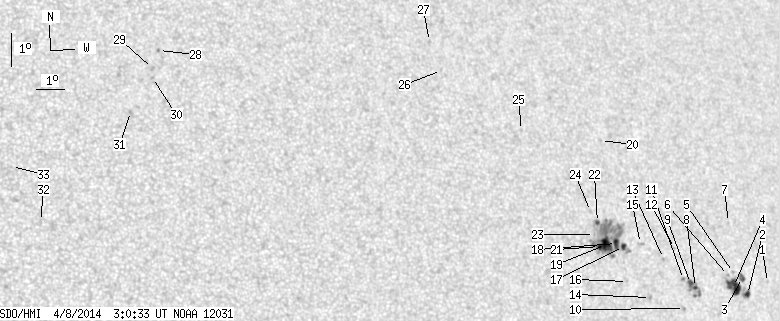

back to the solar disc SDO HMI 2014-04-08 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.43 | 2.31 | 34.10 | 44.18 | 279.51 | 0.7084 | -278.0 | -246.6 | |
| 2.56 | 24.58 | 1.76 | 16.82 | 1.89 | 33.25 | 43.33 | 279.14 | 0.6970 | -544.4 | -506.7 | |
| 2.38 | 4.14 | 1.64 | 2.85 | 2.39 | 33.06 | 43.14 | 279.91 | 0.6959 | -523.8 | -337.9 | |
| 13.39 | -2.00 | 9.14 | -2.00 | 2.09 | 32.68 | 42.76 | 279.59 | 0.6904 | -815.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 2.51 | 32.70 | 42.78 | 280.19 | 0.6917 | -605.0 | -483.7 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 2.41 | 32.49 | 42.57 | 280.10 | 0.6888 | -614.0 | -575.0 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 4.02 | 32.58 | 42.65 | 282.36 | 0.6943 | -287.0 | -225.4 | |
| 1.32 | 14.63 | 0.88 | 9.73 | 1.95 | 31.14 | 41.21 | 279.83 | 0.6706 | -809.9 | -674.1 | |
| 2.29 | -8.00 | 1.52 | -8.00 | 2.05 | 30.94 | 41.02 | 280.05 | 0.6684 | -853.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 1.28 | 30.68 | 40.76 | 278.98 | 0.6631 | -829.0 | -723.9 | |
| 0.00 | 1.32 | 0.00 | 0.87 | 2.16 | 30.66 | 40.74 | 280.28 | 0.6651 | -819.0 | -744.3 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 3.07 | 30.34 | 40.42 | 281.74 | 0.6636 | 497.0 | 437.2 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 2.74 | 29.89 | 39.97 | 281.39 | 0.6569 | -515.0 | -386.2 | |
| 0.00 | 1.41 | 0.00 | 0.91 | 1.52 | 29.35 | 39.42 | 279.73 | 0.6464 | 706.0 | 579.3 | |
| 0.00 | 2.29 | 0.00 | 1.48 | 3.14 | 29.01 | 39.09 | 282.29 | 0.6467 | 637.0 | 414.8 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 1.95 | 28.47 | 38.54 | 280.66 | 0.6360 | 568.0 | 490.3 | |
| 2.20 | 83.96 | 1.41 | 53.48 | 3.00 | 28.35 | 38.43 | 282.33 | 0.6376 | 597.9 | 71.3 | |
| 4.93 | -17.00 | 3.15 | -17.00 | 3.07 | 28.08 | 38.16 | 282.54 | 0.6344 | 605.4 | 999999 | |
| 11.01 | -17.00 | 7.00 | -17.00 | 3.02 | 27.70 | 37.78 | 282.59 | 0.6291 | 895.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 6.19 | 27.68 | 37.75 | 287.44 | 0.6403 | -434.0 | -370.4 | |
| 2.56 | -17.00 | 1.62 | -17.00 | 2.94 | 27.43 | 37.51 | 282.57 | 0.6253 | 1003.6 | 999999 | |
| 1.15 | -17.00 | 0.73 | -17.00 | 3.67 | 27.39 | 37.47 | 283.72 | 0.6271 | -737.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.78 | 3.29 | 27.26 | 37.33 | 283.19 | 0.6241 | -336.0 | -253.5 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 3.99 | 27.14 | 37.22 | 284.32 | 0.6250 | -574.0 | -523.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 6.31 | 24.72 | 34.80 | 289.10 | 0.6025 | 540.0 | 418.5 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 7.99 | 21.96 | 32.03 | 293.46 | 0.5748 | 527.0 | 457.7 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 8.87 | 21.61 | 31.69 | 295.10 | 0.5753 | 759.0 | 543.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 8.14 | 12.30 | 22.37 | 302.33 | 0.4478 | 835.0 | 692.0 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 7.57 | 12.07 | 22.14 | 301.51 | 0.4401 | 878.0 | 744.4 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 7.29 | 12.05 | 22.13 | 300.98 | 0.4377 | 802.0 | 704.4 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 6.22 | 11.28 | 21.36 | 299.70 | 0.4186 | 824.0 | 616.8 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 2.75 | 8.29 | 18.37 | 295.32 | 0.3498 | -12.0 | -10.6 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 4.40 | 7.41 | 17.49 | 300.68 | 0.3500 | 0.0 | -3.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
