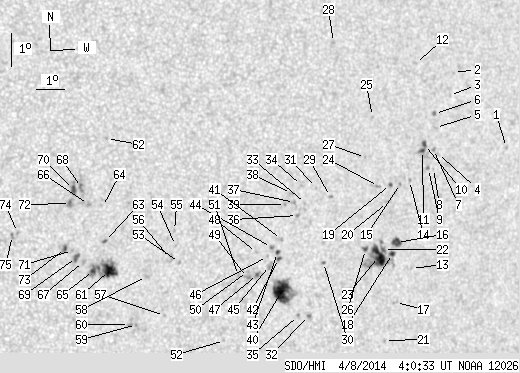

SDO HMI 2014-04-08 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.94 | 261.15 | 42.03 | 153.90 | -11.07 | 21.88 | 32.50 | 258.71 | 0.5387 | 7.4 | -8.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.75 | -7.62 | 30.50 | 41.13 | 265.43 | 0.6563 | 562.0 | 447.8 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -5.51 | 28.20 | 38.83 | 268.83 | 0.6265 | 529.0 | 444.2 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -6.21 | 28.10 | 38.73 | 267.72 | 0.6248 | 562.0 | 488.3 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -7.98 | 27.81 | 38.44 | 264.88 | 0.6204 | 497.0 | 419.2 | |
| 0.00 | 1.76 | 0.00 | 1.11 | -7.20 | 27.65 | 38.28 | 266.13 | 0.6183 | 596.0 | 443.5 | |
| 0.35 | 1.76 | 0.22 | 1.11 | -6.79 | 27.58 | 38.20 | 266.81 | 0.6173 | 677.0 | 586.2 | |
| 0.00 | 1.76 | 0.00 | 1.11 | -7.87 | 27.64 | 38.27 | 265.05 | 0.6181 | 729.0 | 600.8 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -8.44 | 27.71 | 38.33 | 264.13 | 0.6190 | 387.0 | 327.4 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -8.45 | 27.52 | 38.14 | 264.11 | 0.6164 | 724.0 | 644.2 | |
| 1.41 | 9.34 | 0.88 | 5.84 | -7.74 | 27.28 | 37.91 | 265.26 | 0.6132 | 793.9 | 604.6 | |
| 1.23 | -10.00 | 0.77 | -10.00 | -7.93 | 27.23 | 37.85 | 264.96 | 0.6124 | 787.4 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -5.34 | 26.73 | 37.36 | 269.24 | 0.6064 | 667.0 | 555.8 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -11.49 | 27.27 | 37.90 | 259.14 | 0.6152 | 467.0 | 370.6 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -8.86 | 26.83 | 37.46 | 263.42 | 0.6072 | 608.0 | 544.9 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -8.97 | 26.50 | 37.13 | 263.22 | 0.6026 | 633.0 | 475.3 | |
| 4.85 | 7.49 | 3.01 | 4.65 | -10.74 | 26.58 | 37.21 | 260.27 | 0.6050 | 785.2 | 482.2 | |
| 0.00 | 2.11 | 0.00 | 1.32 | -12.55 | 26.82 | 37.45 | 257.34 | 0.6106 | 725.0 | 592.7 | |
| 1.76 | 50.05 | 1.09 | 30.84 | -11.08 | 26.47 | 37.10 | 259.70 | 0.6039 | 675.2 | 595.8 | |
| 0.62 | 1.67 | 0.38 | 1.03 | -9.02 | 26.13 | 36.75 | 263.11 | 0.5975 | 648.6 | 487.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -9.57 | 26.08 | 36.70 | 262.19 | 0.5971 | 659.0 | 470.9 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -13.72 | 26.60 | 37.23 | 255.39 | 0.6096 | 499.0 | 505.3 | |
| 1.06 | -18.00 | 0.65 | -18.00 | -10.98 | 26.11 | 36.74 | 259.82 | 0.5989 | 780.3 | 999999 | |
| 13.92 | -18.00 | 8.58 | -18.00 | -11.21 | 25.96 | 36.58 | 259.42 | 0.5969 | 987.5 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.97 | -9.11 | 25.68 | 36.31 | 262.93 | 0.5913 | 722.0 | 632.9 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -7.03 | 25.24 | 35.87 | 266.48 | 0.5848 | 627.0 | 543.1 | |
| 1.15 | -18.00 | 0.70 | -18.00 | -11.03 | 25.43 | 36.06 | 259.65 | 0.5895 | 873.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -8.27 | 25.10 | 35.73 | 264.34 | 0.5829 | 614.0 | 453.2 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -4.89 | 23.65 | 34.27 | 270.31 | 0.5633 | 646.0 | 566.2 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -9.51 | 23.93 | 34.56 | 262.10 | 0.5670 | 707.0 | 611.4 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -11.51 | 23.92 | 34.55 | 258.58 | 0.5691 | 736.0 | 697.2 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -9.28 | 23.39 | 34.01 | 262.47 | 0.5590 | 646.0 | 506.7 | |
| 0.35 | 1.85 | 0.21 | 1.11 | -13.14 | 23.61 | 34.23 | 255.66 | 0.5676 | 885.0 | 700.6 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -9.78 | 23.04 | 33.67 | 261.53 | 0.5545 | 683.0 | 518.6 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -9.25 | 22.84 | 33.46 | 262.48 | 0.5511 | 657.0 | 453.9 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -13.16 | 23.24 | 33.86 | 255.53 | 0.5625 | 815.0 | 572.4 | |
| 0.00 | 1.67 | 0.00 | 0.99 | -10.15 | 22.79 | 33.42 | 260.82 | 0.5513 | 730.0 | 601.7 | |
| 0.00 | 1.94 | 0.00 | 1.15 | -9.77 | 22.64 | 33.26 | 261.50 | 0.5487 | 770.0 | 691.5 | |
| 0.00 | 2.03 | 0.00 | 1.20 | -9.51 | 22.50 | 33.12 | 261.97 | 0.5464 | 805.0 | 640.9 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -9.85 | 22.32 | 32.94 | 261.32 | 0.5441 | 843.0 | 716.0 | |
| 23.88 | 40.80 | 14.15 | 24.19 | -12.47 | 22.50 | 33.13 | 256.57 | 0.5508 | -896.7 | -341.6 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -10.91 | 22.30 | 32.92 | 259.37 | 0.5451 | -682.0 | -571.6 | |
| 0.97 | 1.85 | 0.57 | 1.09 | -11.48 | 22.26 | 32.89 | 258.31 | 0.5455 | -741.5 | -632.0 | |
| 0.97 | 2.03 | 0.57 | 1.19 | -11.31 | 22.20 | 32.83 | 258.62 | 0.5444 | -513.4 | -371.9 | |
| 0.00 | 2.11 | 0.00 | 1.24 | -11.17 | 21.96 | 32.59 | 258.83 | 0.5408 | 706.0 | 517.3 | |
| 0.00 | 4.23 | 0.00 | 2.49 | -11.71 | 21.96 | 32.59 | 257.82 | 0.5416 | 53.0 | -186.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -11.45 | 21.85 | 32.48 | 258.29 | 0.5396 | 644.0 | 543.4 | |
| 0.53 | 3.44 | 0.31 | 2.02 | -12.01 | 21.56 | 32.19 | 257.19 | 0.5365 | 832.5 | 601.2 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -11.35 | 21.44 | 32.07 | 258.39 | 0.5335 | 726.0 | 534.9 | |
| 0.00 | 3.08 | 0.00 | 1.80 | -12.12 | 21.22 | 31.84 | 256.90 | 0.5317 | -318.0 | -114.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -11.94 | 21.19 | 31.82 | 257.23 | 0.5310 | 408.0 | 364.5 | |
| 0.00 | 1.76 | 0.00 | 1.03 | -12.07 | 20.88 | 31.51 | 256.89 | 0.5269 | -617.0 | -481.6 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -14.06 | 20.66 | 31.28 | 253.10 | 0.5285 | -657.0 | -437.3 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -11.79 | 18.75 | 29.37 | 256.85 | 0.4951 | -614.0 | -454.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -11.29 | 18.55 | 29.18 | 257.82 | 0.4911 | -445.0 | -463.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -10.84 | 18.47 | 29.09 | 258.71 | 0.4890 | -500.0 | -429.9 | |
| 0.00 | 4.67 | 0.00 | 2.65 | -11.69 | 18.42 | 29.04 | 256.97 | 0.4900 | -539.0 | -540.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.41 | 18.42 | 29.05 | 253.50 | 0.4945 | -615.0 | -532.8 | |
| 0.00 | 1.85 | 0.00 | 1.04 | -12.27 | 17.64 | 28.27 | 255.53 | 0.4800 | -768.0 | -596.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.73 | 17.47 | 28.10 | 252.46 | 0.4818 | -852.0 | -680.6 | |
| 0.00 | 1.94 | 0.00 | 1.09 | -13.75 | 17.23 | 27.86 | 252.33 | 0.4783 | -750.0 | -727.2 | |
| 11.10 | 38.42 | 6.19 | 21.38 | -12.15 | 16.35 | 26.97 | 255.31 | 0.4603 | -941.3 | -687.0 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -8.19 | 15.89 | 26.52 | 263.92 | 0.4463 | -749.0 | -594.2 | |
| 0.35 | 2.03 | 0.20 | 1.13 | -11.29 | 16.09 | 26.71 | 257.09 | 0.4541 | -761.2 | -541.5 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -10.24 | 15.92 | 26.54 | 259.35 | 0.4494 | -626.0 | -487.7 | |
| 1.85 | -61.00 | 1.03 | -61.00 | -12.18 | 15.80 | 26.43 | 255.04 | 0.4522 | -1014.5 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.41 | -10.20 | 15.44 | 26.06 | 259.30 | 0.4419 | -831.0 | -668.0 | |
| 0.00 | 2.47 | 0.00 | 1.36 | -11.92 | 15.43 | 26.06 | 255.45 | 0.4459 | -937.0 | -764.4 | |
| 0.00 | 4.93 | 0.00 | 2.71 | -9.70 | 15.16 | 25.79 | 260.37 | 0.4367 | -890.0 | -759.1 | |
| 1.50 | 4.32 | 0.83 | 2.38 | -11.81 | 15.18 | 25.81 | 255.60 | 0.4418 | -1017.5 | -779.3 | |
| 2.03 | 5.99 | 1.11 | 3.29 | -9.77 | 14.89 | 25.52 | 260.14 | 0.4328 | -1049.7 | -795.9 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -11.61 | 15.02 | 25.65 | 255.99 | 0.4389 | -880.0 | -627.5 | |
| 0.00 | 4.49 | 0.00 | 2.47 | -10.20 | 14.83 | 25.45 | 259.14 | 0.4325 | -933.0 | -817.3 | |
| 1.06 | 3.08 | 0.58 | 1.69 | -11.56 | 14.78 | 25.41 | 256.01 | 0.4350 | -954.5 | -795.4 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -11.14 | 13.13 | 23.75 | 256.31 | 0.4085 | -665.0 | -521.7 | |
| 0.00 | 2.20 | 0.00 | 1.19 | -11.24 | 12.97 | 23.59 | 256.00 | 0.4063 | -888.0 | -745.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
